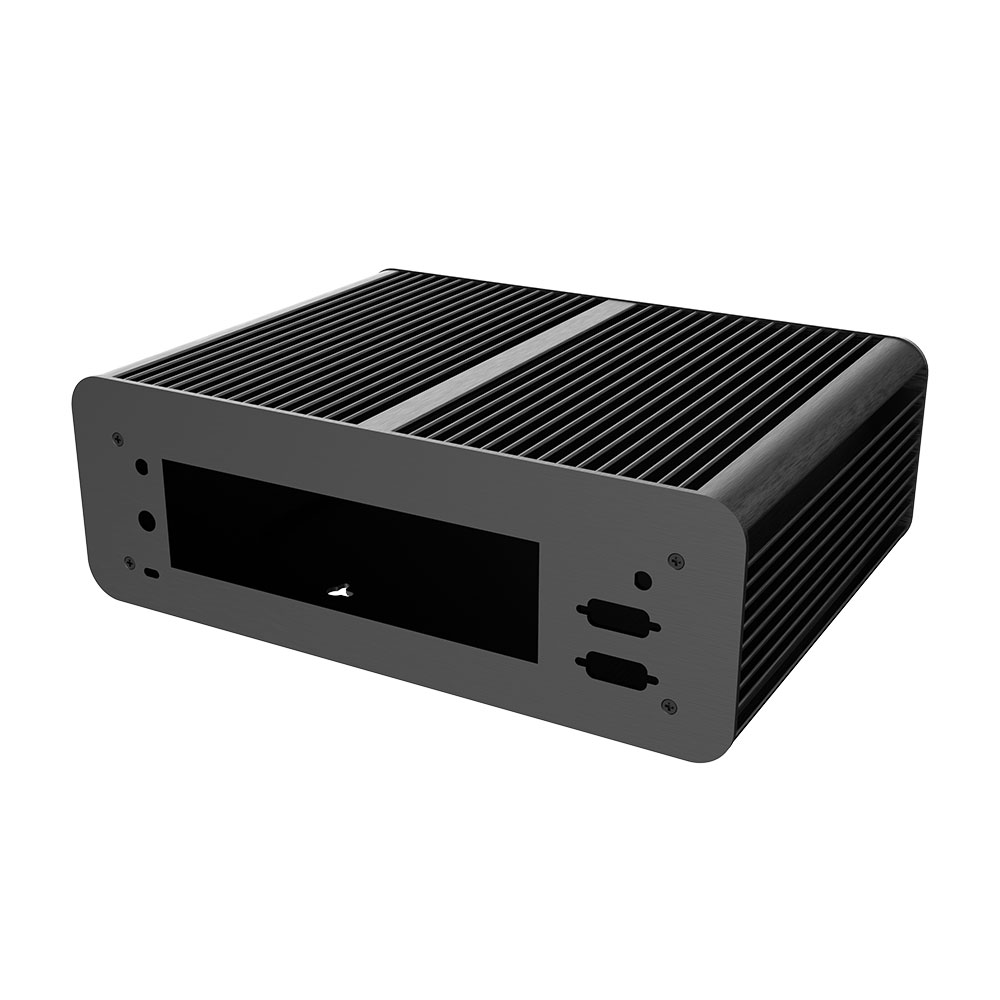

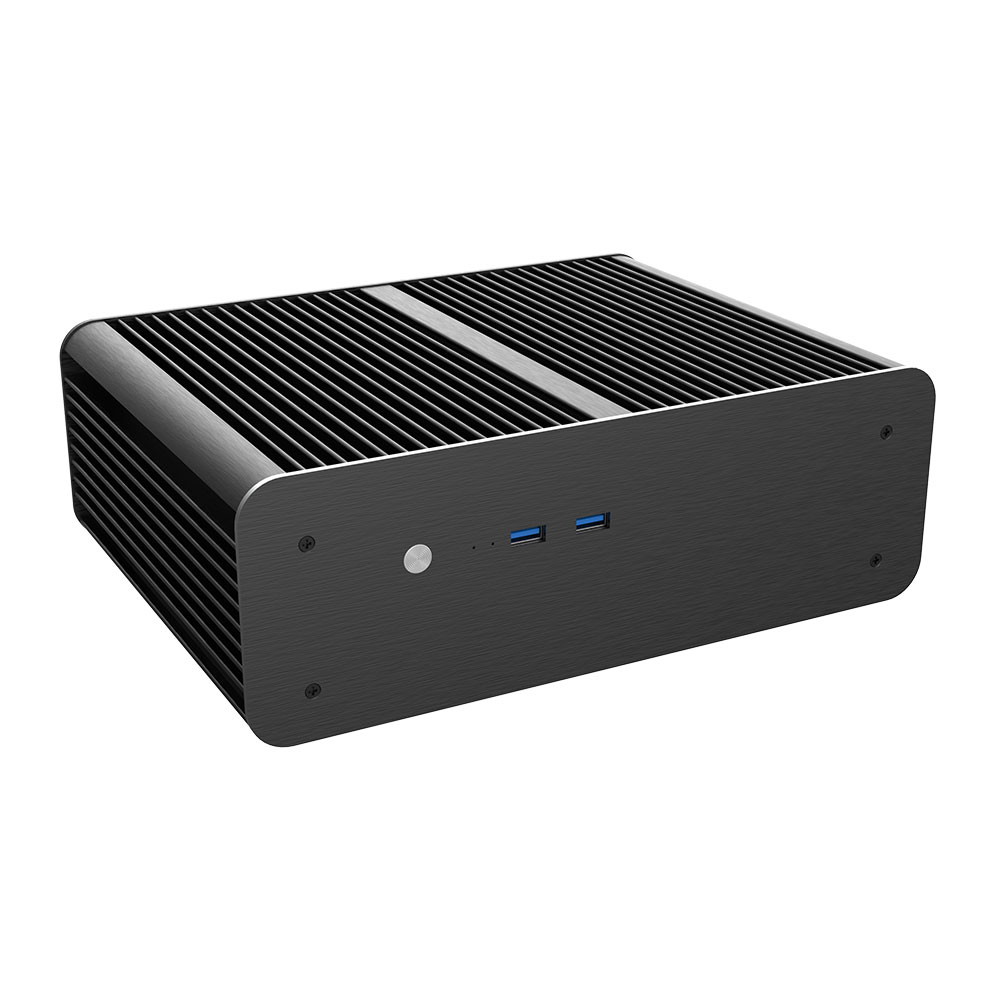

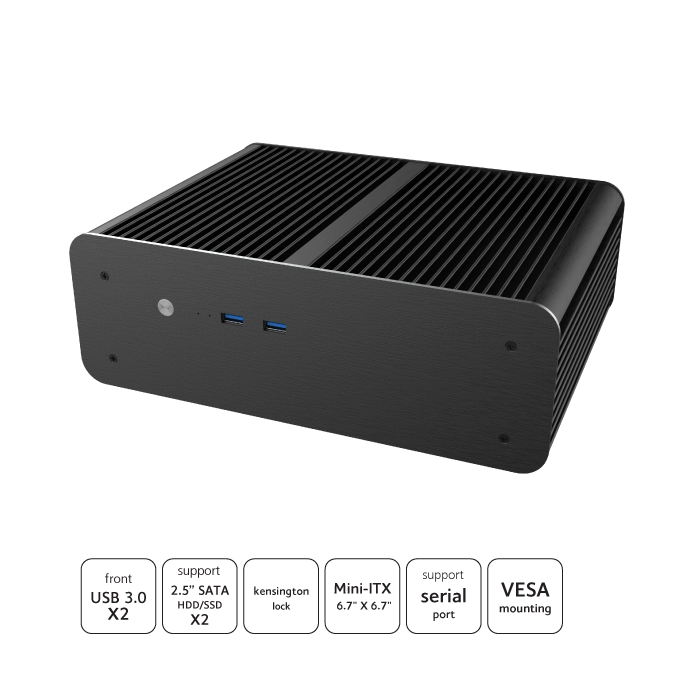

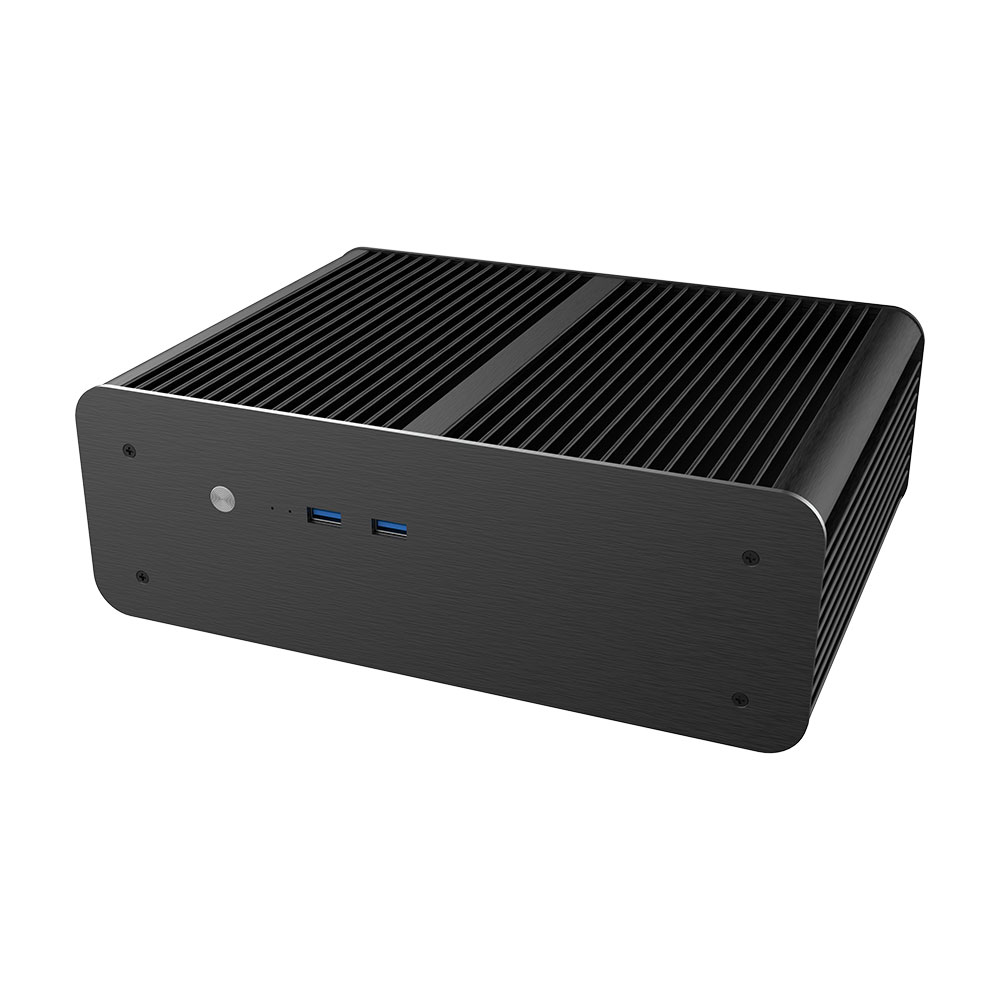

Euler MX Plus
Fanless Case with Support for Intel® Consumer and Industrial Mini-ITX Boards
Fanless case for Mini-ITX Intel® consumer and industrial motherboards, support two 2.5" drive bay. Suitable for VESA mount monitors saves valuable desk space.
• Aluminium fanless CPU cooling design
• Designed for common Intel® LGA1700 boards
• Ideal for business and education environments
• Support two 2.5" drive bay
• Include pico power adapter

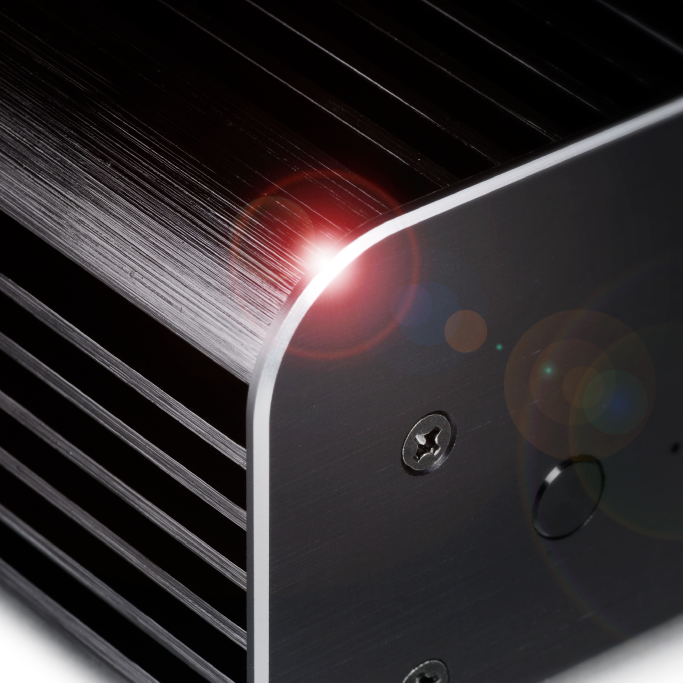

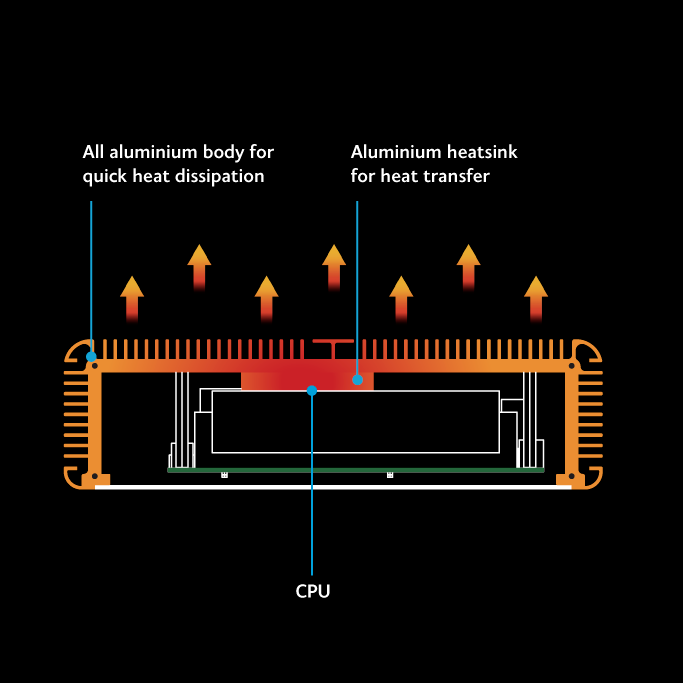

Aluminium fanless CPU Cooling design.

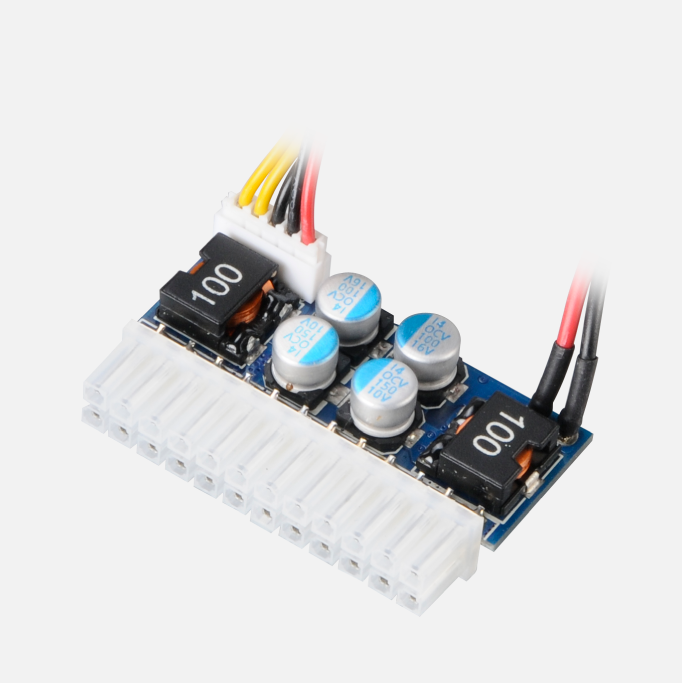

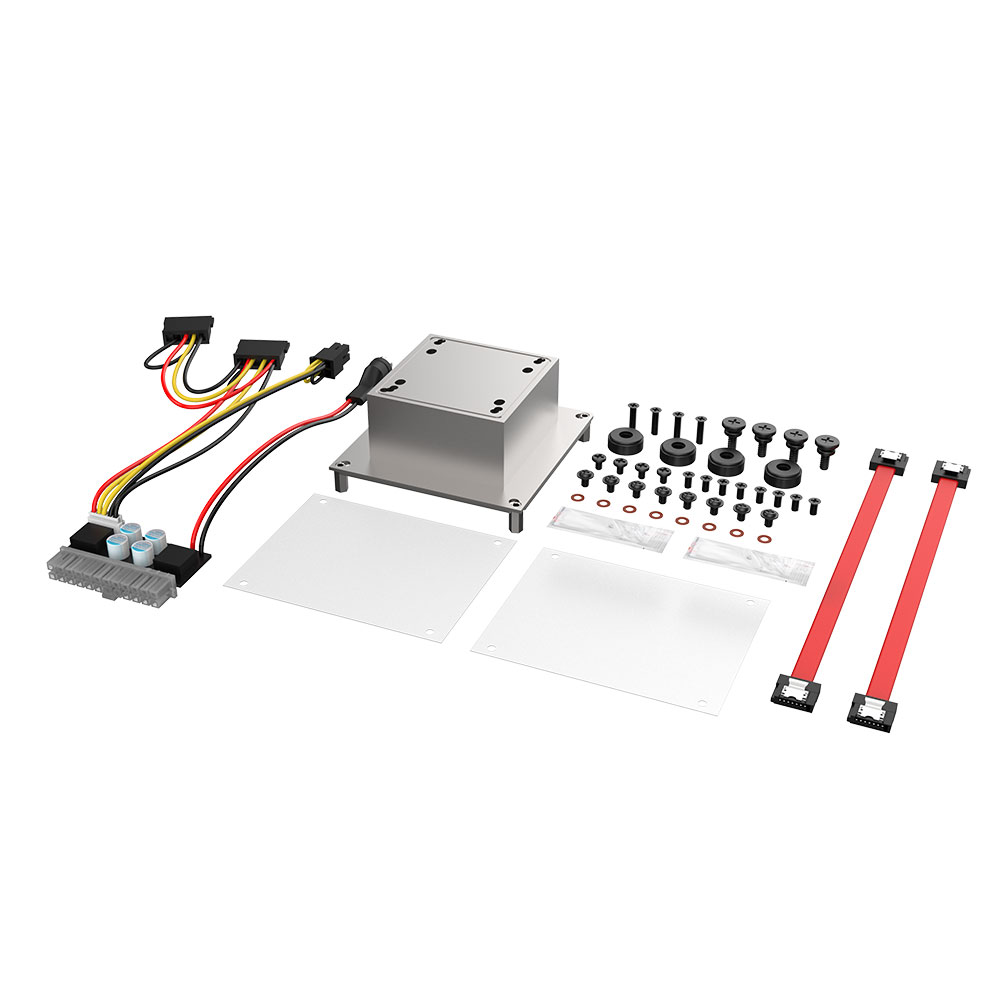

Included DC-to-DC internal adapter

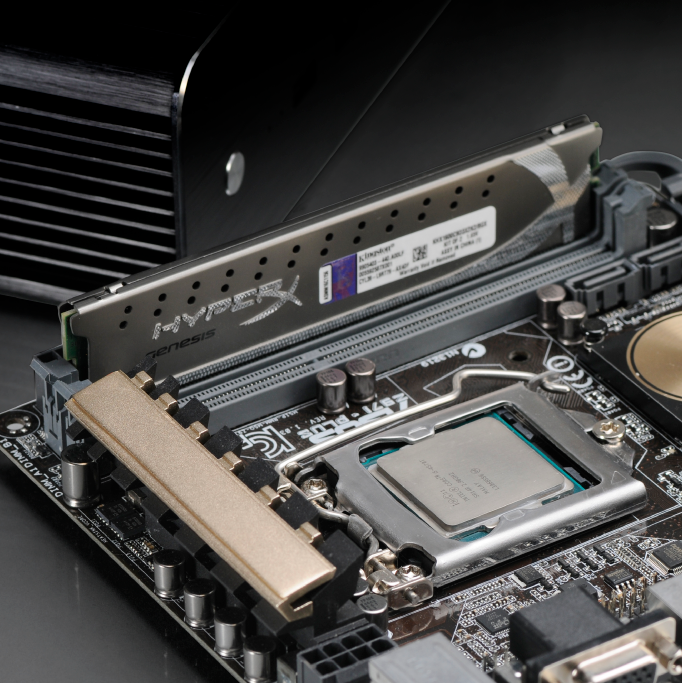

Supported industrial motherboards:
- Gigabyte H610I DDR4
- ASUS PRIME H610I-PLUS D4
- Asrock H610M-ITX/ac
- Asrock IMB-1231
- Kontron K3833-Q
See more supported motherboards in the specification

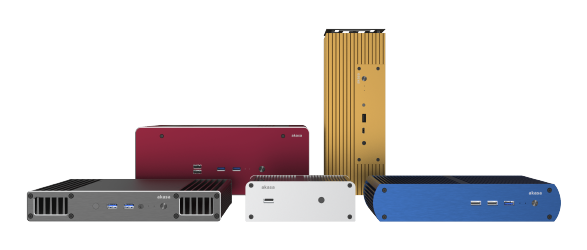

Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Motherboards Types | Mini-ITX boards without DC onboard |
|---|---|
| Motherboard Support | See below table |
| CPU Support | 35W TDP CPU |
| Dimensions | 272.6 x 205 x 92.6mm (WxDxH) |
| Internal Bays | Two for 2.5” HDD (max height 9.5mm) |
| Security | Kensington lock |
| VESA Mounting | Support |

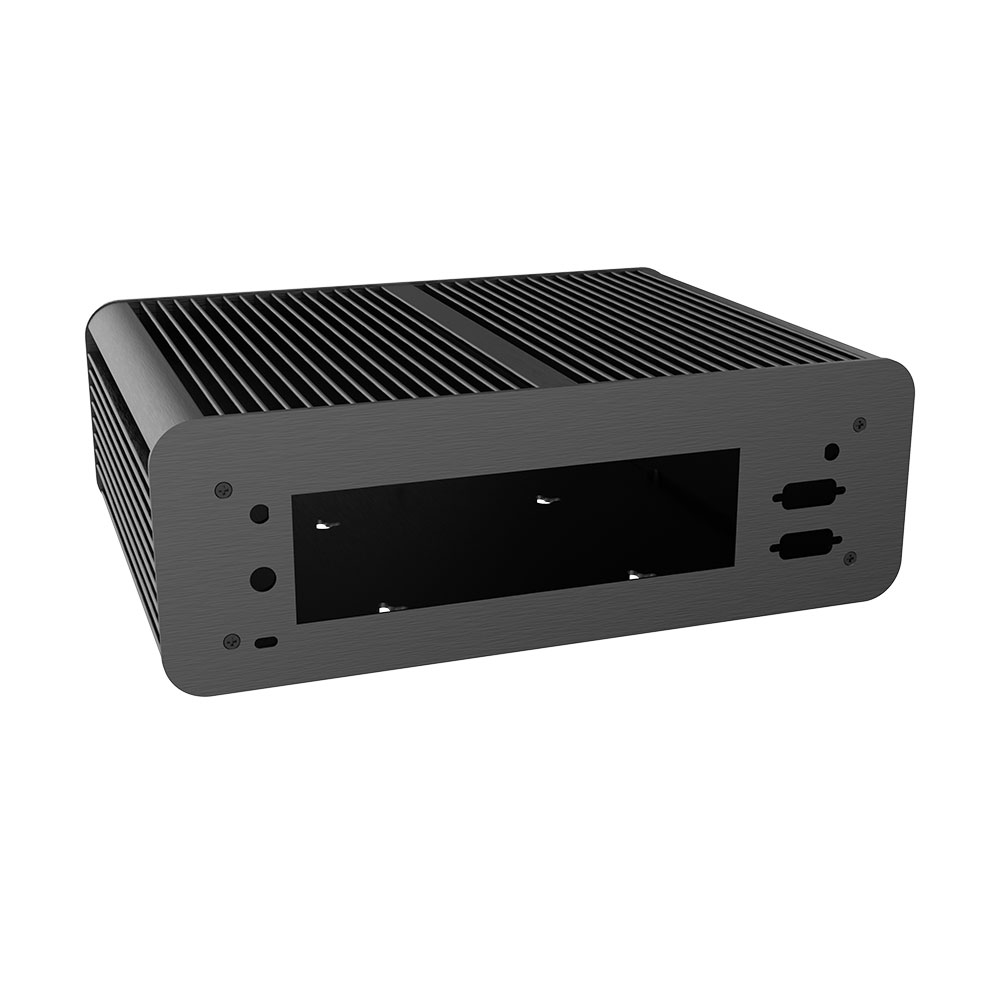

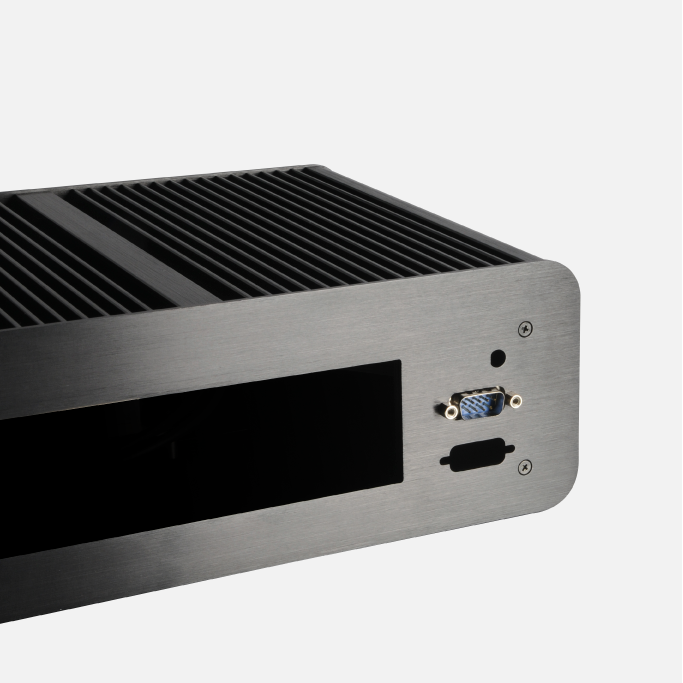

| Serial Port Openings | 2 |

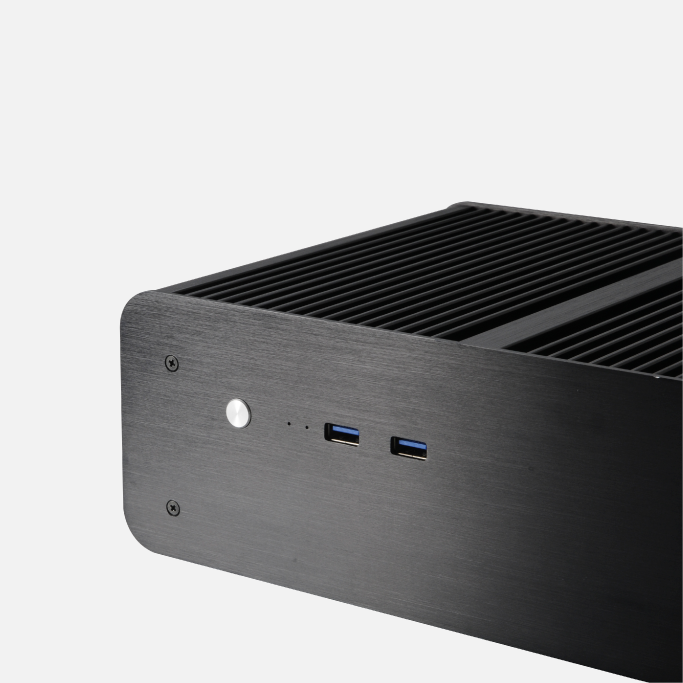

| Front Panel USB 3.0 Ports | 2 |
| Internal DC Converter (included) | 80W compact power adapter (AK-PE080-03) |
| External AC Power Adapter | 84W, 12V (Optional Akasa model: AK-PD080-02M) |
| Power Connectors | 24pin motherboard 4pin ATX12V 4pin Molex SATA power |
| Product Code | A-ITX56-M1B |
