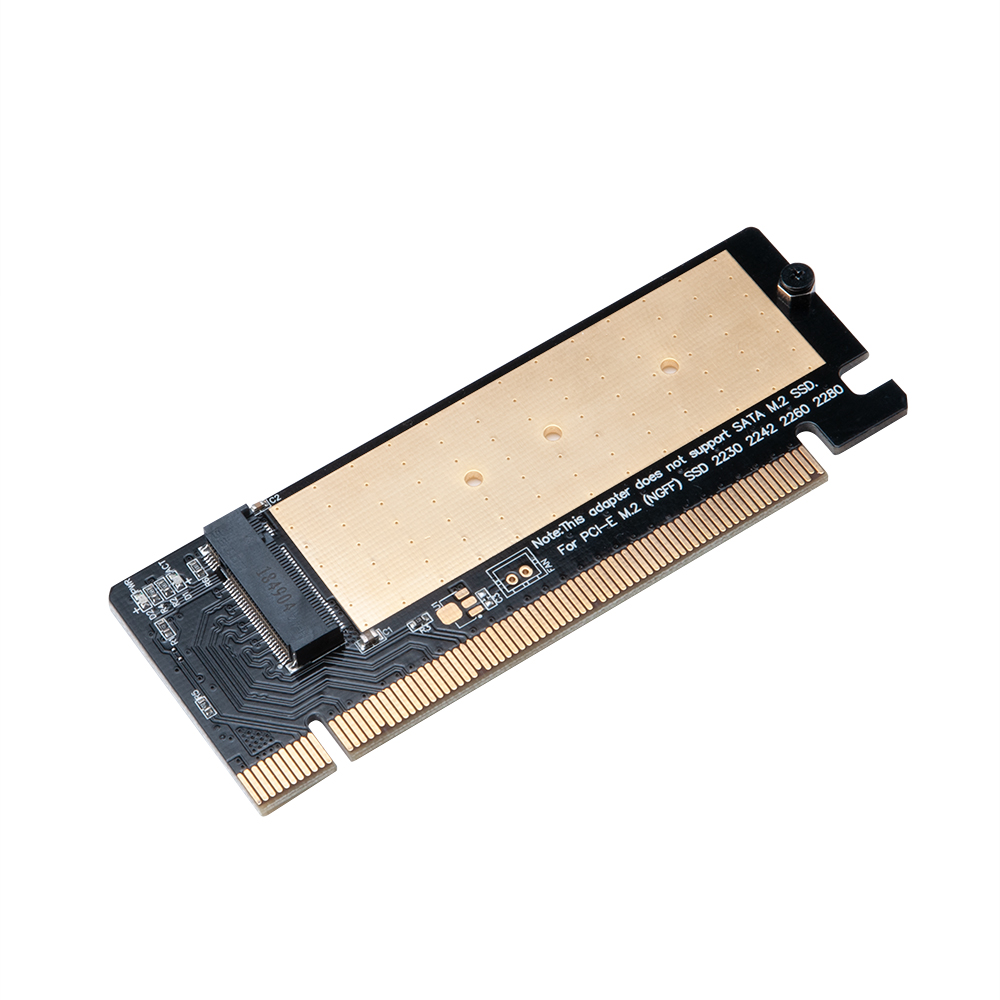

M.2 SSD to PCIe adapter card with heatsink cooler
Easily add and cool M.2 PCIe NVMe storage to an existing motherboard or PC. Supports speeds up to 32 Gbps.
Product Code: AK-PCCM2P-05
M.2 SSD to PCIe adapter card with heatsink cooler
Easily add and cool M.2 PCIe NVMe storage to an existing motherboard or PC. Supports speeds up to 32 Gbps.
|
M.2 SSD to PCIe adapter card
with heatsink cooler • M.2 PCIe NVMe Gen 3 x4 to x16 pinout host adapter
• Low profile 31mm height, fits in a 1U chassis Designed for M.2 PCIe SSD
M.2 SSD heatsink
Thermal pad (2.3mm or 1.5mm height) M.2 SSD to PCIe adapter card PCB exposed copper coupled with
an additional heatsink design - reduces M.2 SSD heat and enhances performance Transfer Speed Comparison
Supports 2230, 2242, 2260 and 2280 size PCIe SSD
Easily fits in a PCIe Gen 3 x16 PCIe slot.
Backwards compatible with PCIe Gen 2 |
| Application | Converts M.2 SSD to work in a main board PCIe x16 slot |
|---|---|
| Designed for | M.2 PCIe "M Key" and "M+B Key" SSD Supports 2230, 2242, 2260 and 2280 size PCIe SSD |
| Material | Metal bracket, printed circuit board, exposed copper, aluminium heatsink |
| Operating system compatibility | OS independent; no additional drivers or software required |
| Dimensions | 99.75 (L) x 38.23 (W) x 14 (H) mm (with heatsink and thermal pad) |
| Operating temperature | 0ºC - 55ºC |
| Product code | AK-PCCM2P-05 |
