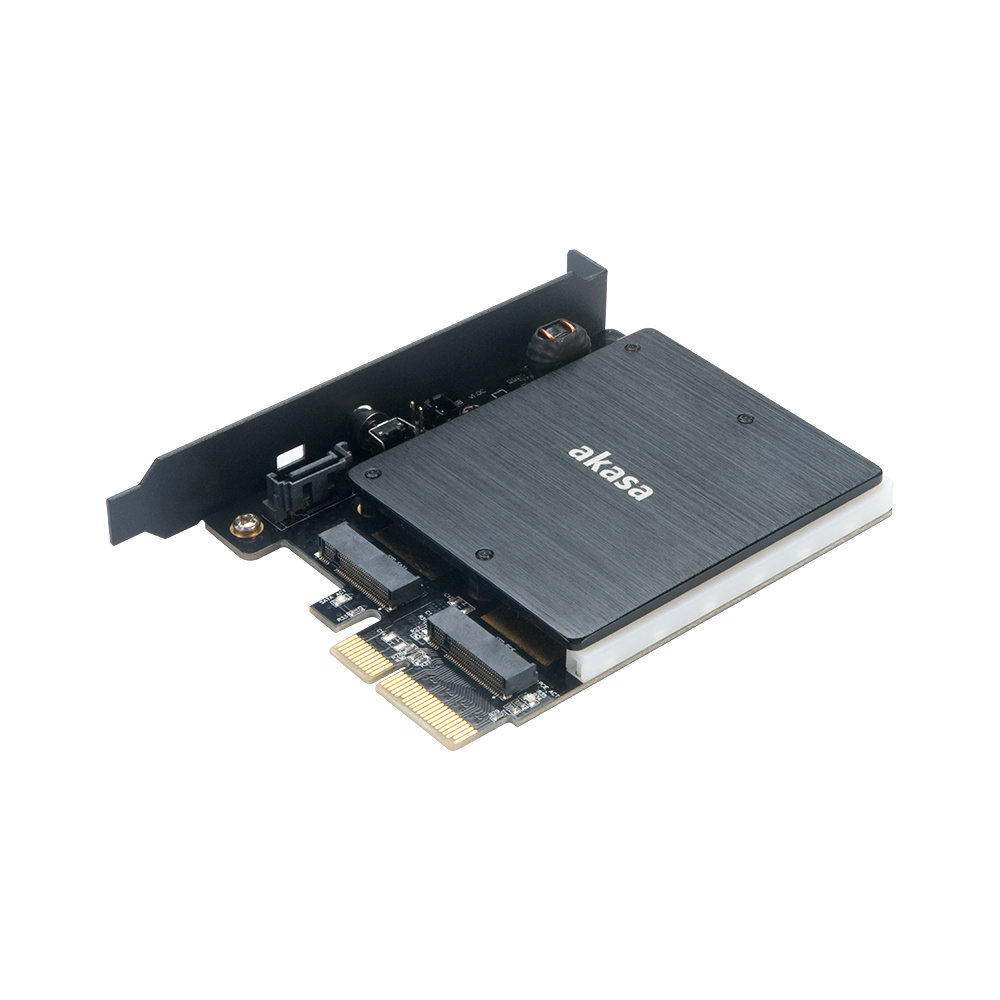

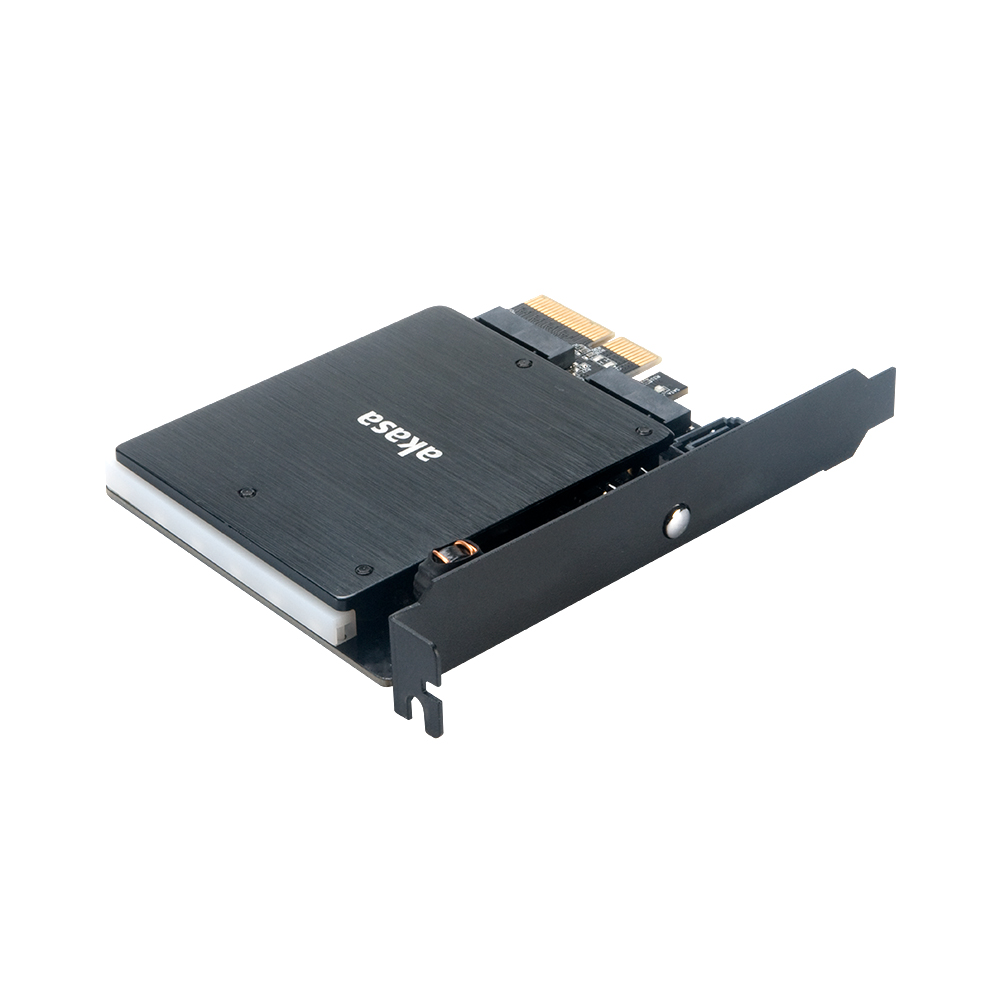

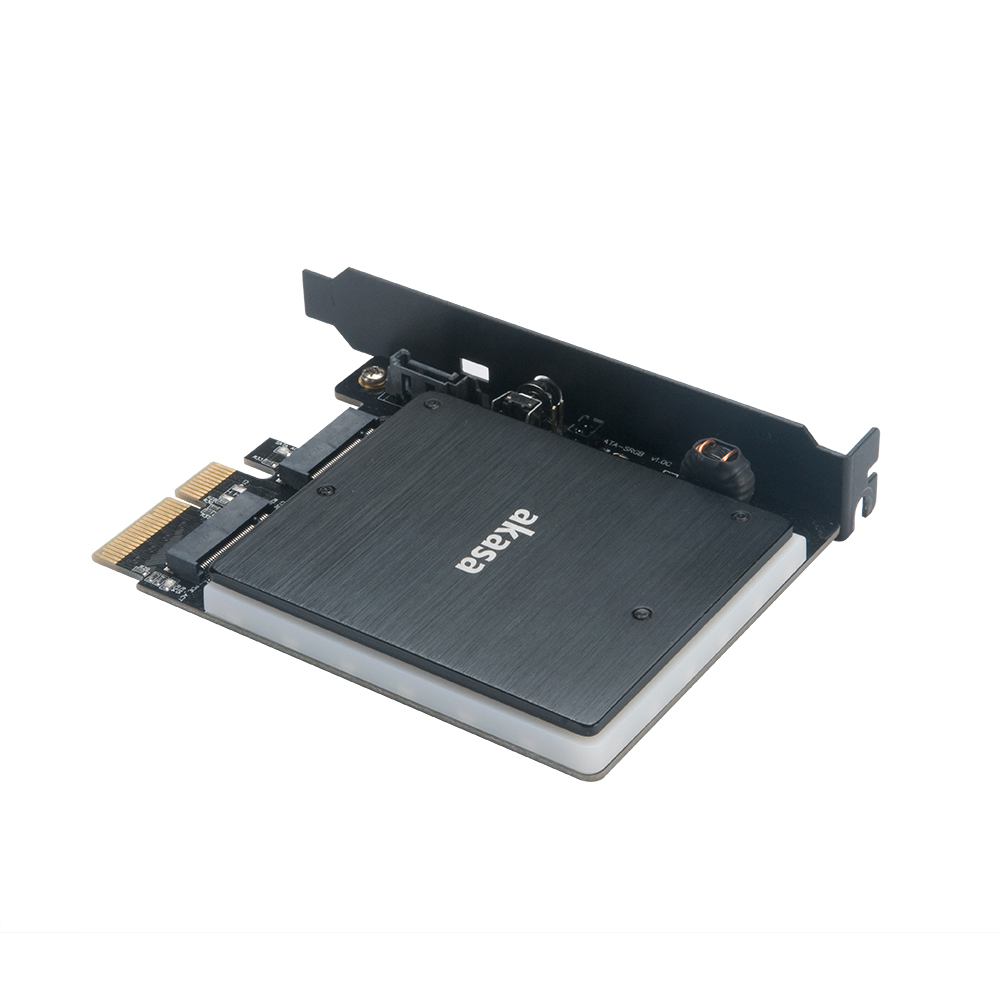

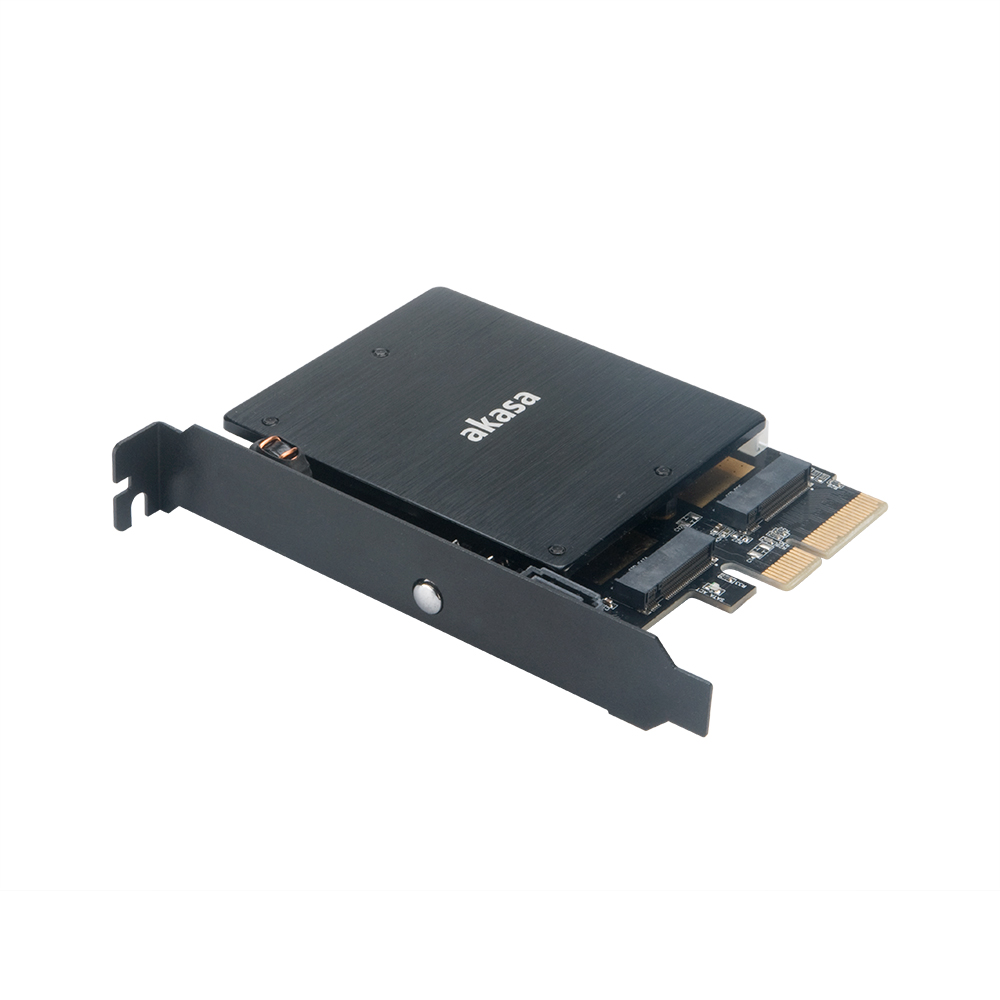

M.2 PCIe and M.2 SATA SSD adapter card with RGB LED light and heatsink
Cool and colour M.2 SSD storage. Simultaneously works with one M.2 PCIe (NVMe) SSD and one M.2 SATA SSD. Compatible with PCIe 3.0 Gen3 x4, x8, or x16 slot.
|
M.2 PCIe SSD and
M.2 SATA SSD adapter card with RGB LED light and Heatsink Illuminate M.2 SSDs with over 16.7 million colours
PCB exposed copper coupled with an additional
heatsink design - reduces SSD heat and enhances performance Superior mechanical design for easy installation
M.2 PCIe 3.0 x 4 NVMe to PCIe x 4 host adapter
Transfer Speed Comparison
Easily fits in a PCIe Gen3 x4, x8 or x16 slot
Supports 5V addressable LED pin
|
| Application | Add addressable RGB LED lighting and cool M.2 PCIe SSD and M.2 SATA SSD |
|---|---|
| Designed for | M.2 PCIe/NVMe (M Key) SSD & M.2 SATA (B+M Key) SSD 2230, 2242, 2260, 2280 and 22110 M.2 form factor lengths 5V addressable RGB LED pin headers |
| Material | Metal bracket, printed circuit board, exposed copper, aluminium heatsink |
| Voltage rating for LED | 5V DC |
| Current rating for LED | 0.48A |
| Connector | 3-pin addressable RGB connector 4-pin addressable RGB connector |
| Required host connection | One PCIe Gen3 x4, x8 or x16 slot One SATA connector |
| Certification | Gigabyte RGB Fusion, MSI Mystic Light, ASUS AURA, ASRock Polychrome, Razer Chroma RGB |
| Operating temperature | 0°- 55° C |
| Operating system compatibility | OS independent; no additional drivers or software required |
| Contents | M.2 SSD to PCIe adapter card, silicon thermal pads (x2), 2.54mm 3-pin to RGB 4-pin male cable, 2-pin to RGB 4-pin female cable, mounting screws x 4, screwdriver, user manual |
| Product code | AK-PCCM2P-03 |
