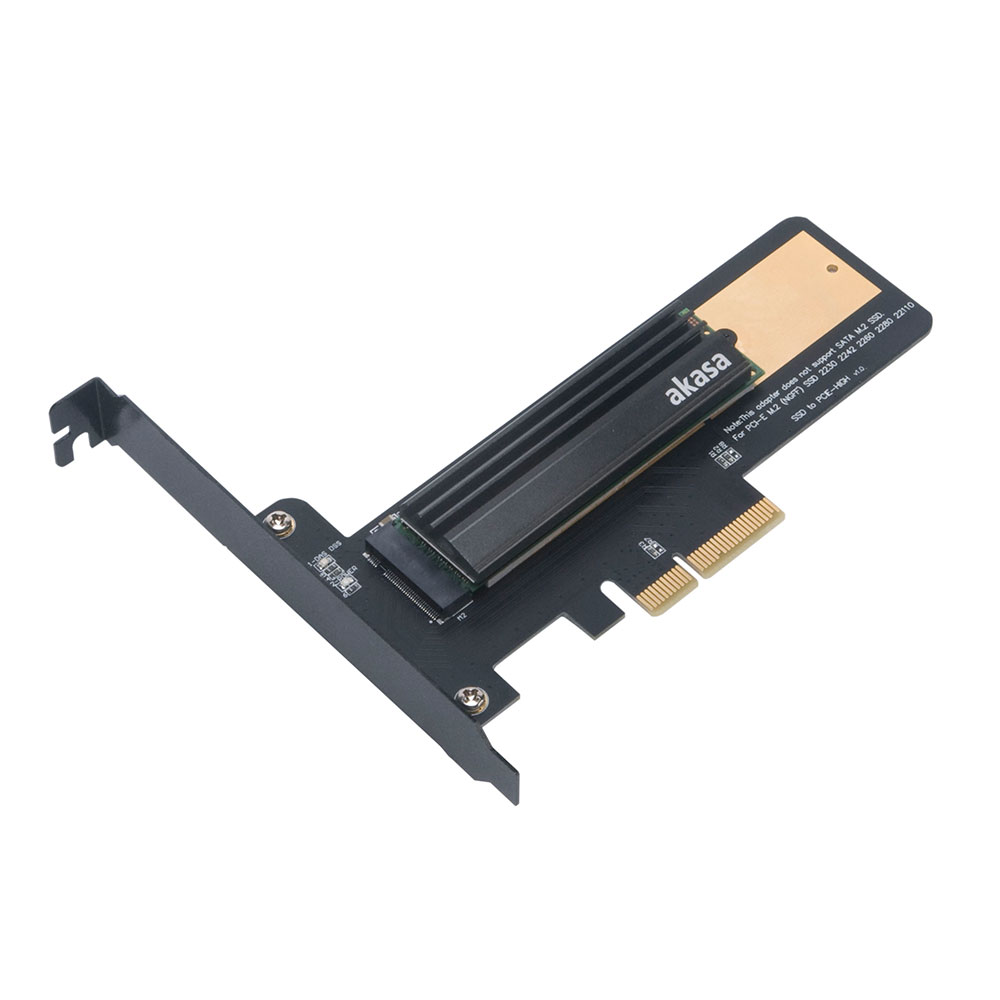

M.2 SSD to
PCIe adapter card with
heatsink cooler
• M.2 PCIe 3.0 x4 NVMe to PCIe x4 host adapter
• PCB exposed copper coupled with an additional heatsink design - reduces
   SSD heat and enhances performance
Designed for M.2 PCIe SSD
M.2 SSD heatsink
Thermal pad x 2 ( T:2.3mm / 1.5mm )

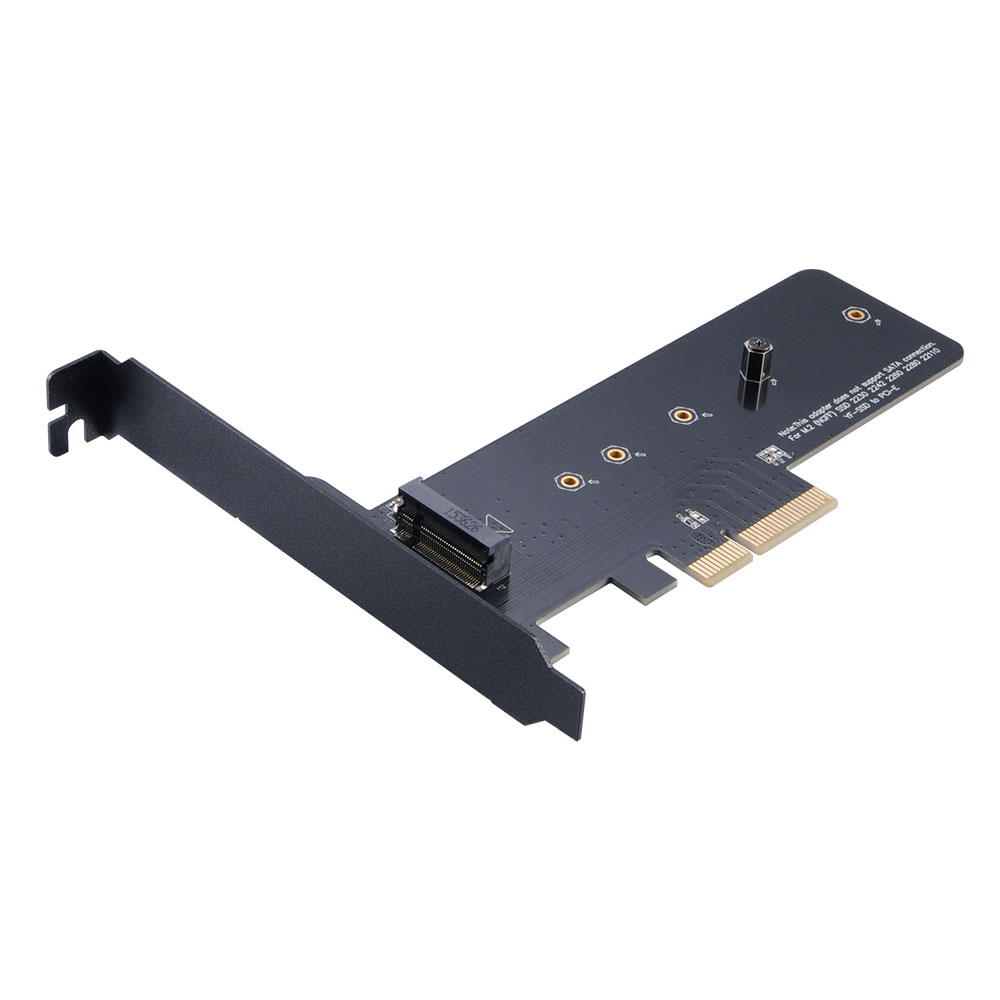

M.2 SSD to PCIe adapter card
Reduces M.2 SSD heat and
enhances performance
Transfer Speed Comparison
Easily installs in a PCIe Gen3 x4, x8 or x16 PCIe slot.
Backwards compatible with PCIe Gen2


Application Converts M.2 SSD to work in main board PCIe x4 bus slot and reduces SSD heat
Designed for M.2 PCIe "M Key" SSD
Supports 2230, 2242, 2260, 2280 and 22110 size PCIe SSD
Material Metal bracket, printed circuit board, exposed copper, aluminium heatsink
Dimensions 148(L) x 120(W) x 21.7(H) mm
Product code AK-PCCM2P-02

Installation manual


- 2018-08-01

From our testing, it works but is dependent on the motherboard PCIe bandwidth setting. If you have any questions, please ask the motherboard manufacturer. Testing was done with Gigabyte 1TB PCIe Gen 4 SSD and AORUS X570 motherboard.
