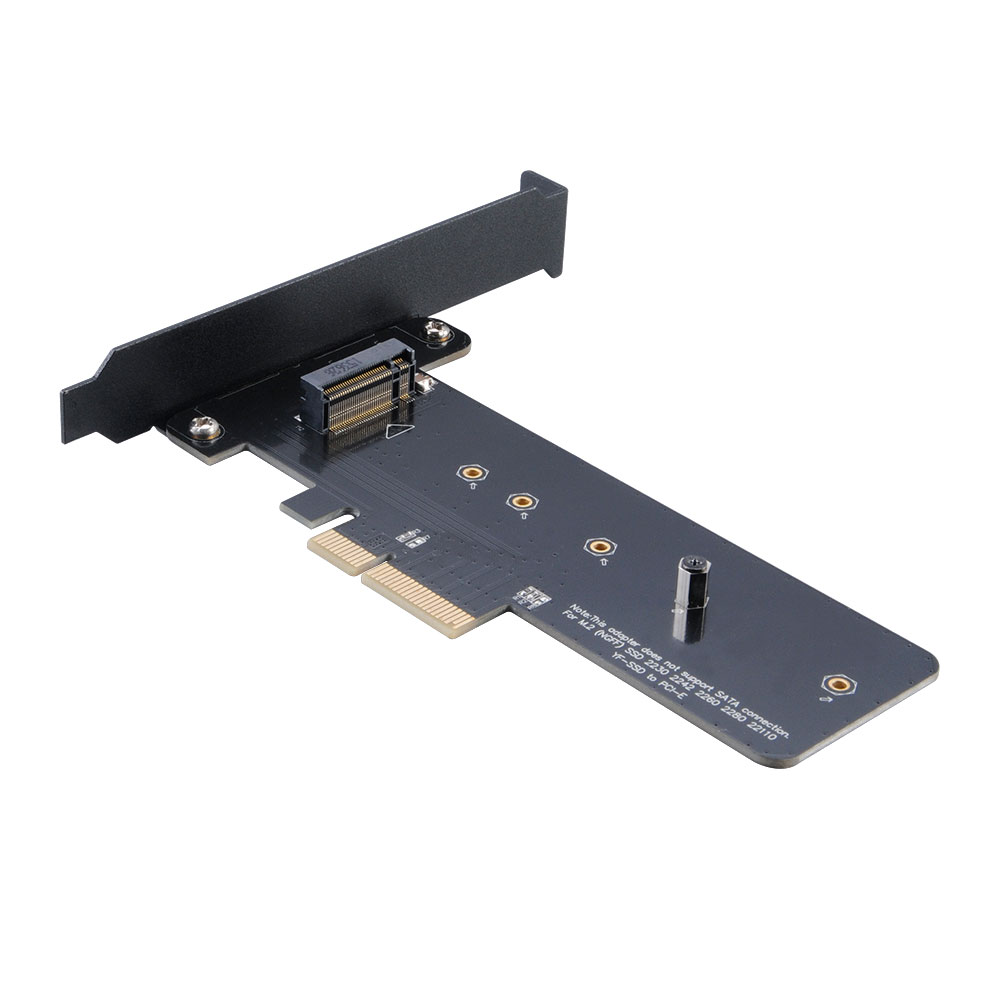

M.2 SSD to PCIe adapter card

M.2 SSD to PCIe NVMe adapter card allows one M.2 SSD to work in main board PCIe x4 bus slot. Support 2230, 2242, 2260, 2280 and 22110 size PCIe SSD.

AK-PCCM2P-01
M.2 SSD to
PCIe adapter card
• Converts M.2 SSD to work in a main board PCIe x4 bus slot
• Supports 2230, 2242, 2260, 2280 and 22110 size PCIe SSD
• Designed for M.2 PCIe "M Key" SSD
• Optional low-profile bracket
Low-profile PCIe bracket
Designed for M.2 PCIe SSD
Transfer Speed Comparison
Easily installs in a PCIe Gen3 x4, x8 or x16 PCIe slot. Backwards compatible with PCIe Gen2



Application Convert M.2 SSD to work in main board PCIe x4 bus slot
Designed for M.2 PCIe "M Key" SSD
Support 2230, 2242, 2260, 2280 and 22110 size PCIe SSD
Material Metal bracket, printed circuit board
Dimensions 148(L) x 120(W) x 21.7(H) mm
Onboard LED indicators Power - Blue
M.2 PCIe SSD Activity - Red (flashing)
Product code AK-PCCM2P-01

Installation manual

GB, FR, DE, PT, ES, JP, CH

- 2016-07-11

From our testing, it works but is dependent on the motherboard PCIe bandwidth setting. If you have any questions, please ask the motherboard manufacturer. Testing was done with Gigabyte 1TB PCIe Gen 4 SSD and AORUS X570 motherboard.

The adapter is a pass through design thus the card does support PCIe NVME SSD.

On the AK-PCCM2P-01, the LED flashes red when reading and writing. The LED lights up blue when the product is connected to the computer.
