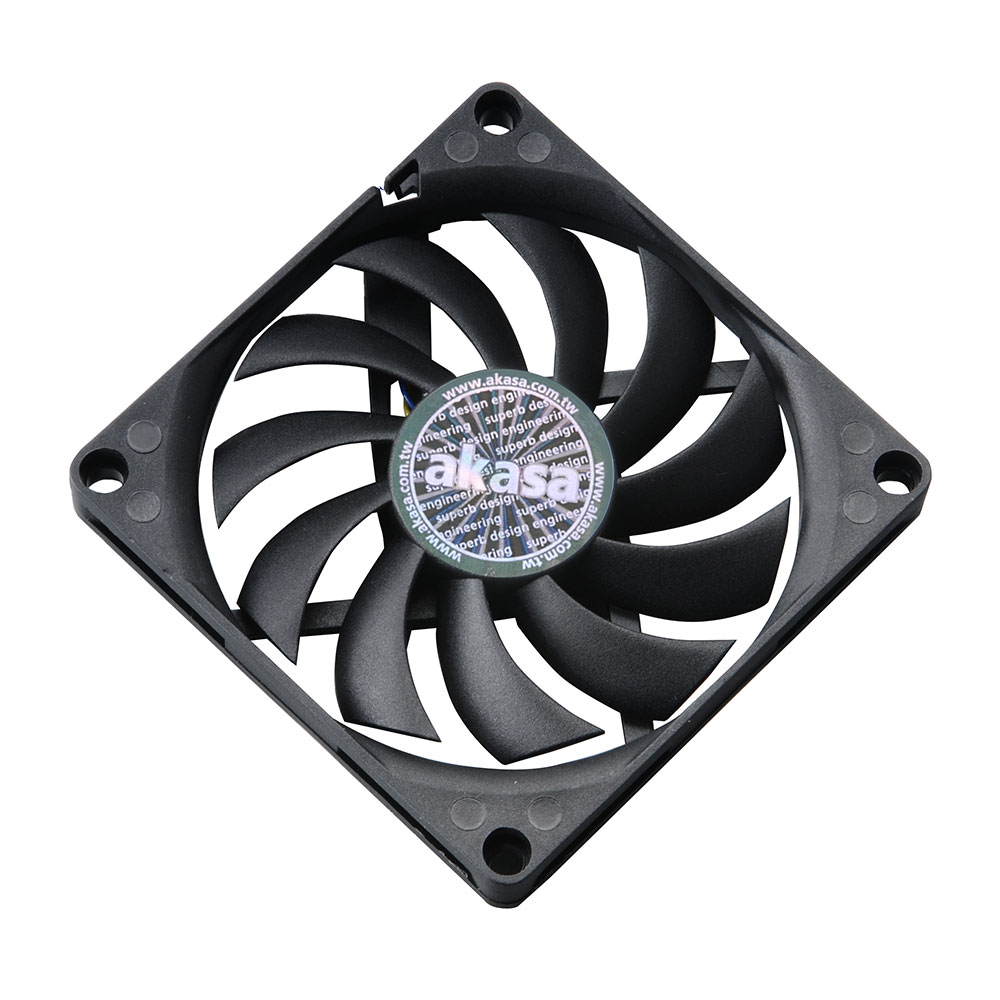

Slimfan 80mm
80mm x 10.8mm, 4-Pin PWM, EBR Bearing, 3000RPM, 26.53CFM, 30dB(A)
8cm Slim fan designed for HTPC or slim system with limited space.
Product Code: AK-FN076
Slimfan 80mm
80mm x 10.8mm, 4-Pin PWM, EBR Bearing, 3000RPM, 26.53CFM, 30dB(A)
8cm Slim fan designed for HTPC or slim system with limited space.
• Ideal for tight spaces and small form factor builds
• Intelligent fan speed control
• Maximise airflow with minimal resistance
• Keep your system cool and quiet

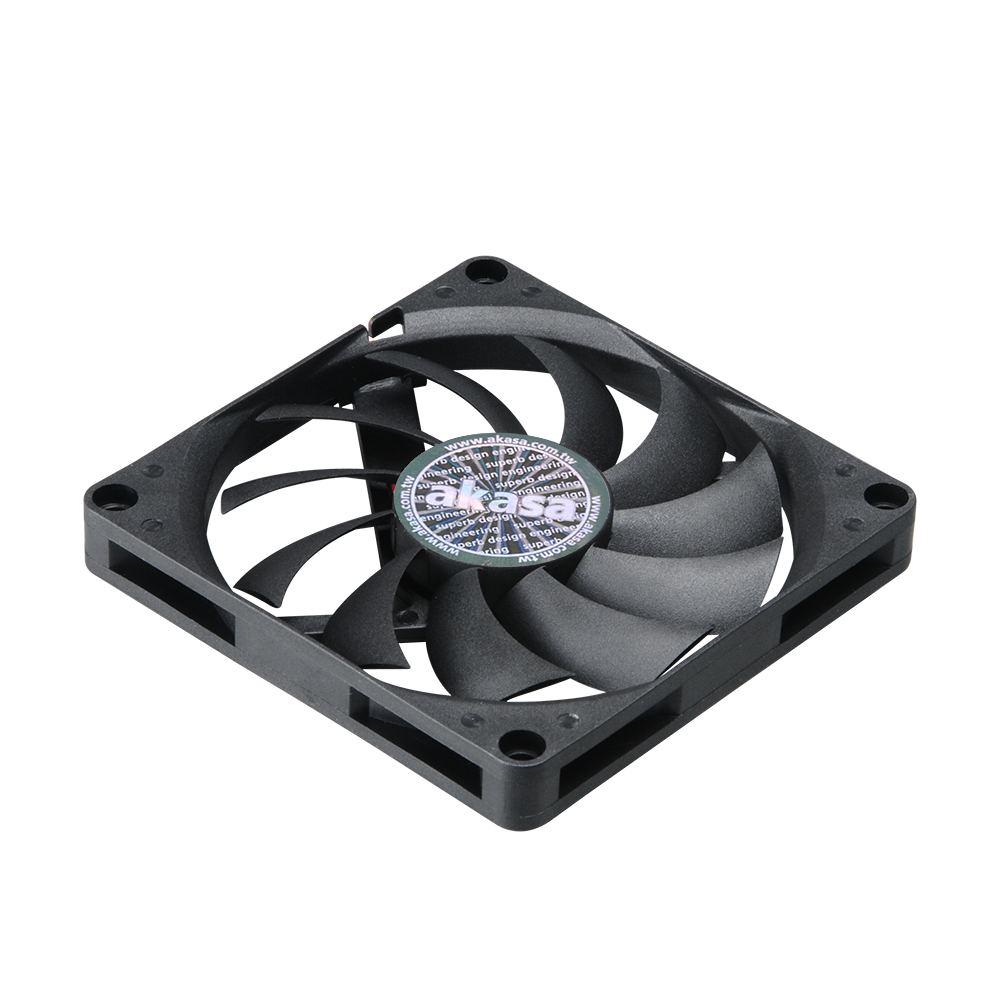

At just 10.8mm thick, this slim fan fits effortlessly into HTPCs, small cases, and low-profile systems, delivering effective cooling without compromising space.
With 4-pin PWM functionality, our fan automatically adjusts its speed from 600 to 3000 RPM, providing precise cooling while maintaining low noise levels. Perfect for balancing performance and quiet operation.

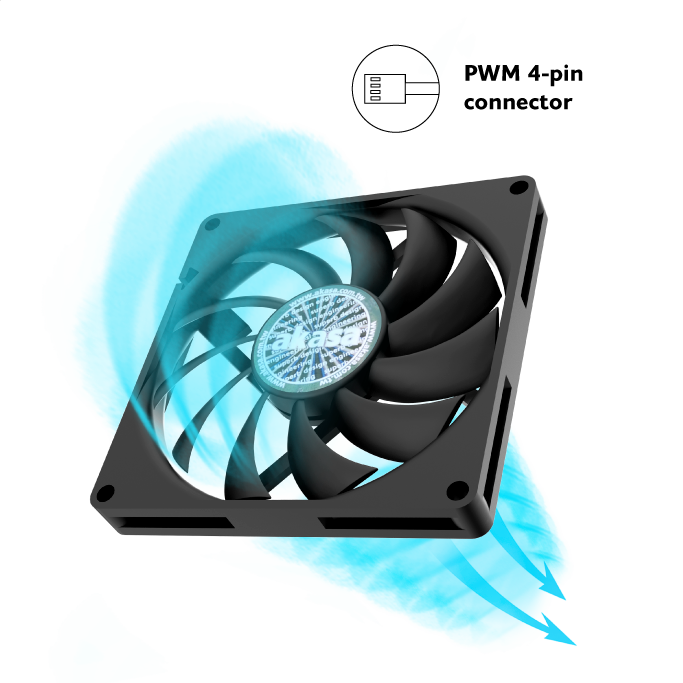

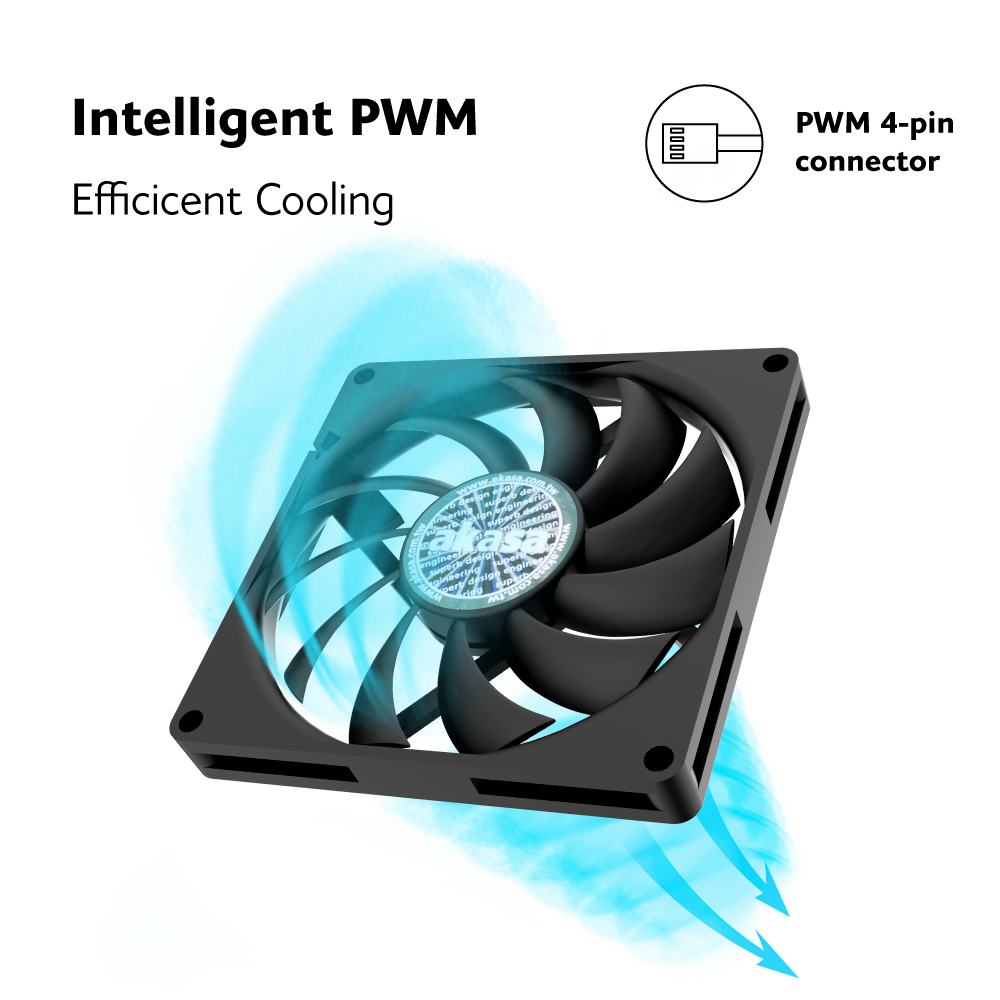

The fan features precision-engineered blades designed to deliver a maximum airflow of 26.53 CFM and static pressure of 1.81 mm-H2O, ensuring efficient cooling even in compact spaces.

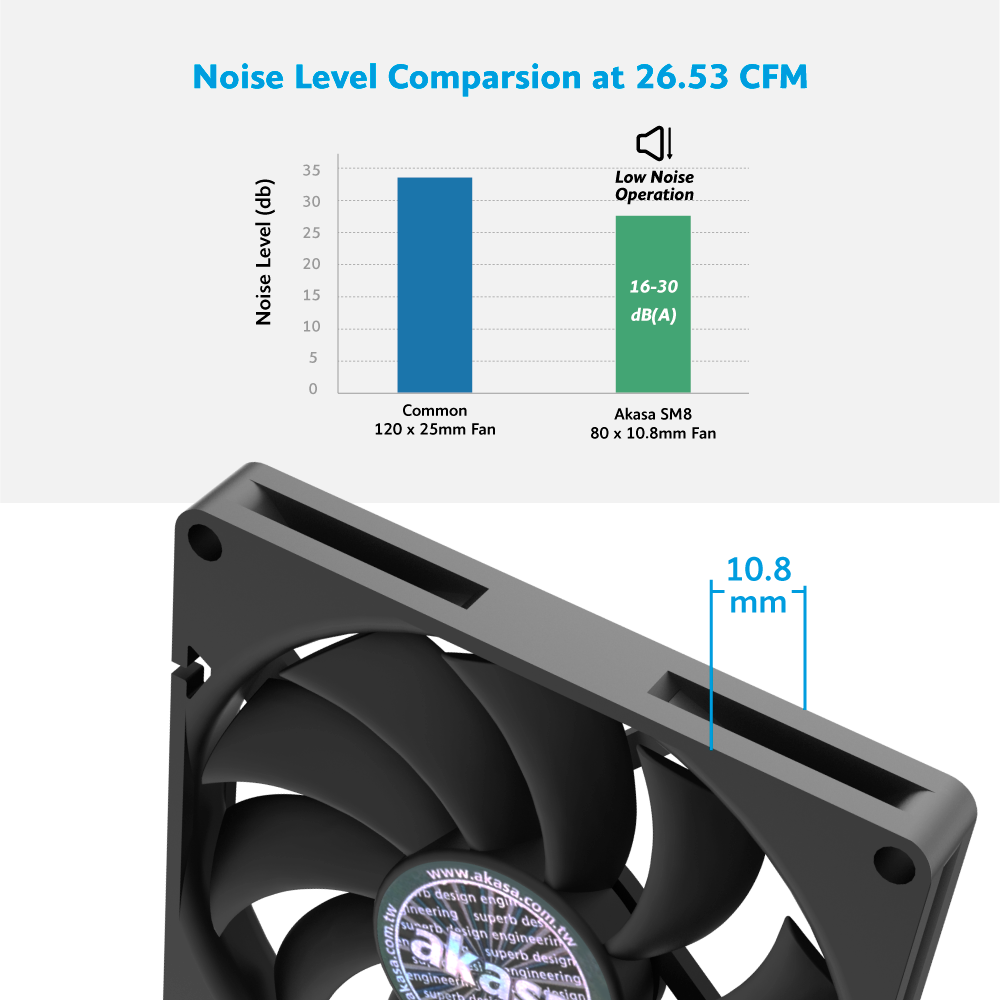

Operates at a sound level of just 16-30 dB(A), making it an excellent choice for noise-sensitive environments, such as home theaters or workspaces.
| Application | PC case or heatsink fan |
|---|---|
| Dimension | 80 x 80 x 10.8 mm |
| Bearing | EBR Bearing |
| Speed | 600 - 3000 RPM |
| Max Airflow | 26.53 CFM |
| Max Static Pressure | 1.81 mm-H2O |
| Sound Level | 16 - 30.1 dB(A) |
| Rated Voltage for Fan | 12V DC |
| Rated Current for Fan | 0.19 A |
| Fan Connector | 4-Pin PWM |
| Fan Life | 40,000 hours |
| Warranty | 2 years |
| Product Code | AK-FN076 |
