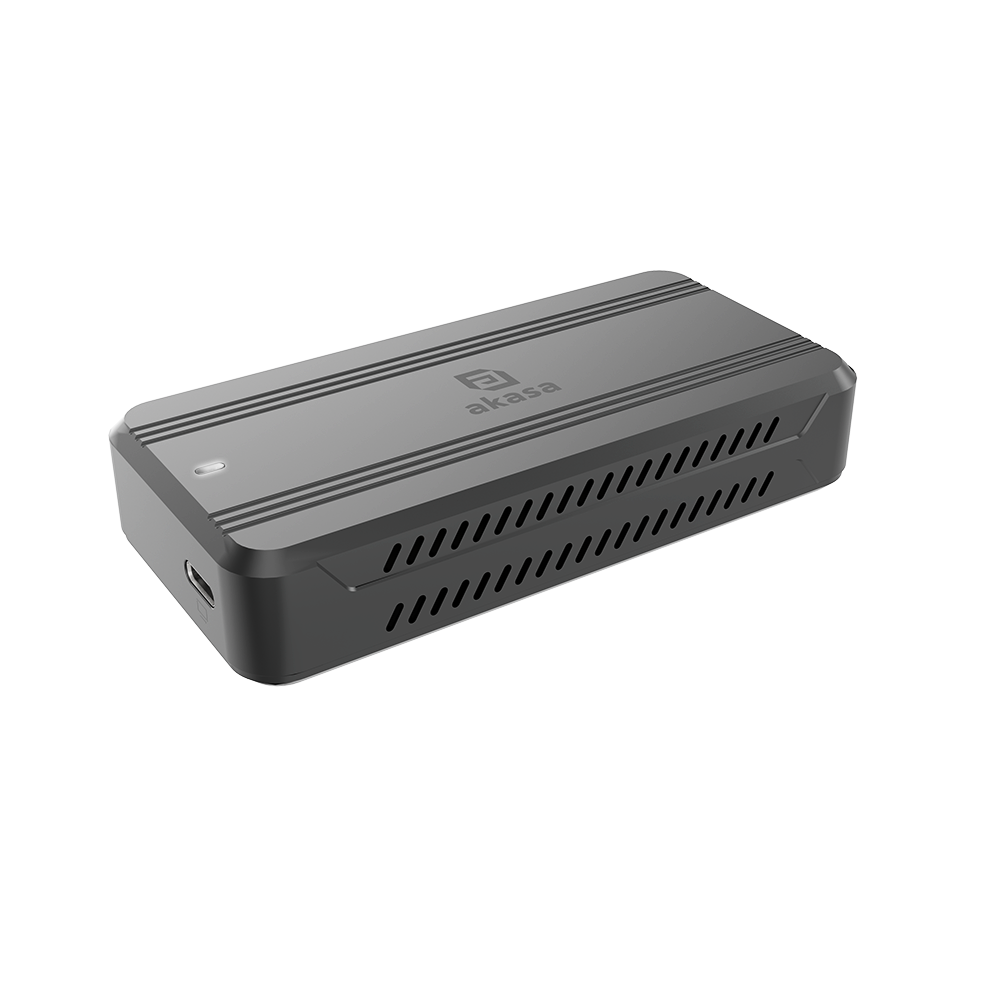

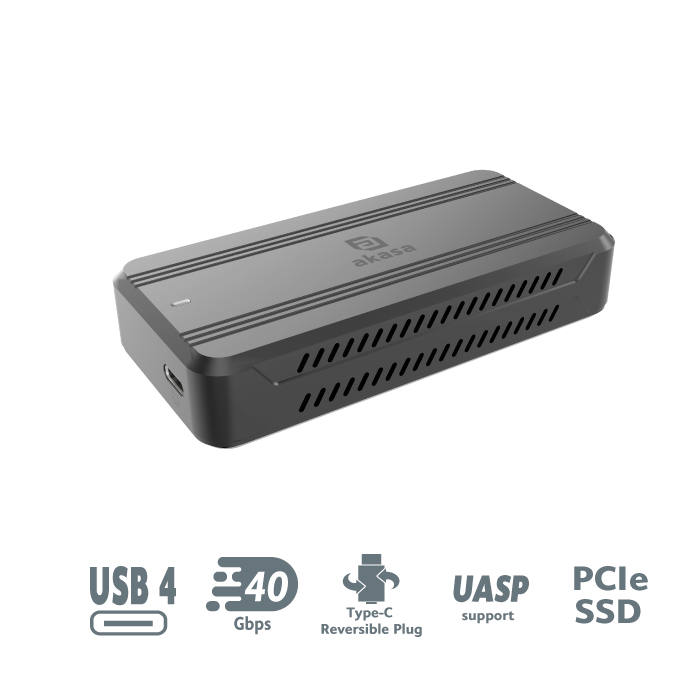

USB4 40Gbps to M.2 PCIe NVMe SSD Aluminium Enclosure
SSD enclosure offers hyper-fast data transfer speeds and broad compatibility across devices and platforms, all in a compact design with advanced cooling and reliable connections. Ideal for high-performance storage on the go.
• High-performance cooling with built-in fan

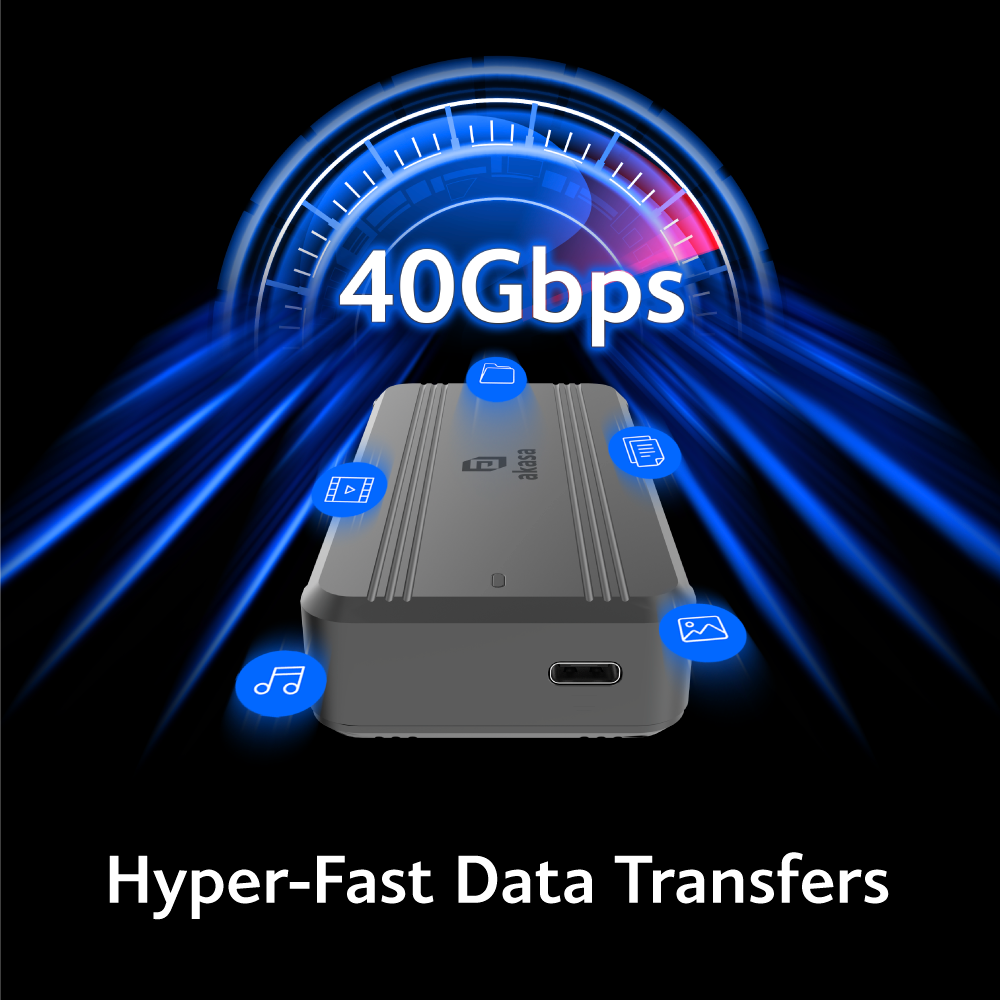

• Experience Hyper-Fast Data Transfers
• Designed For Versatility
• Connect Seamlessly Across Platforms
• Reliable and Efficient Connections

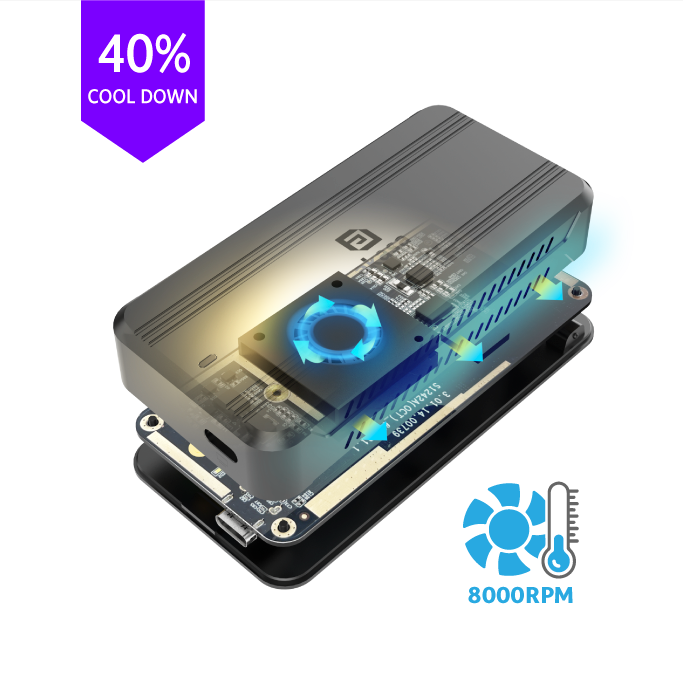

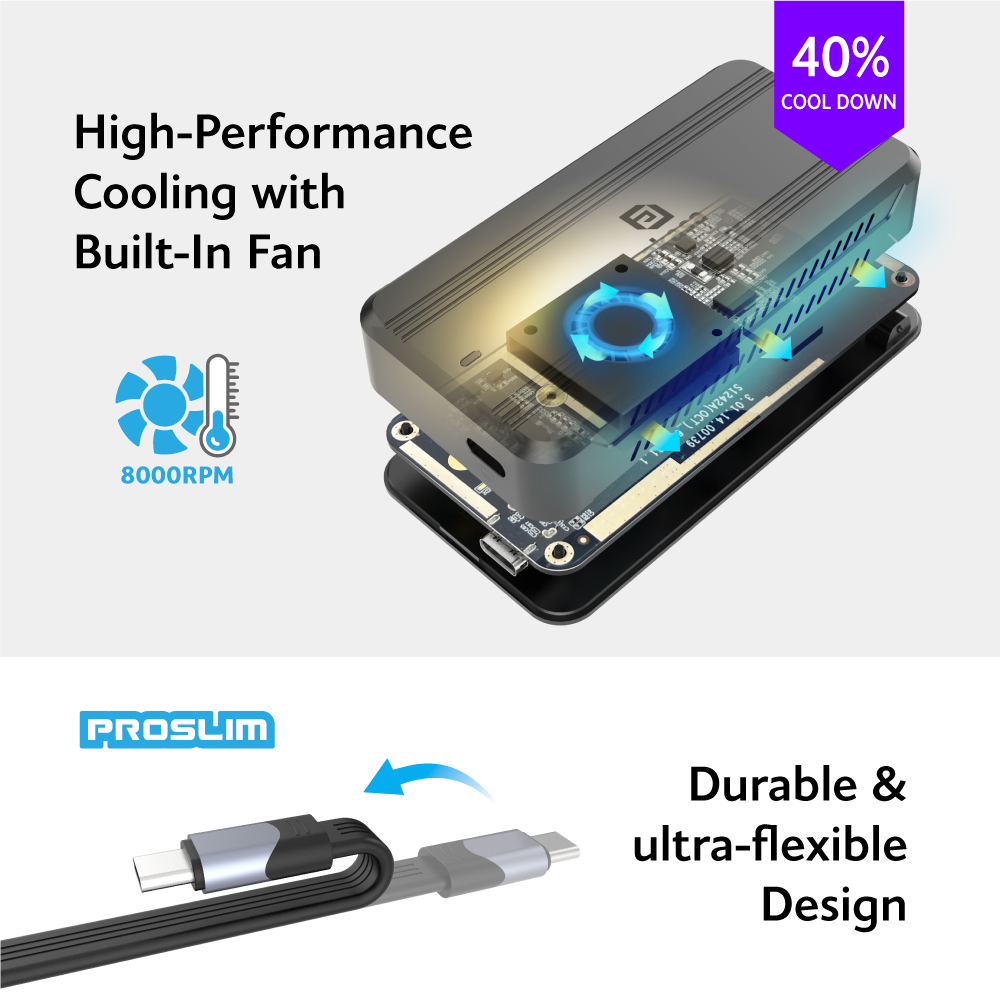

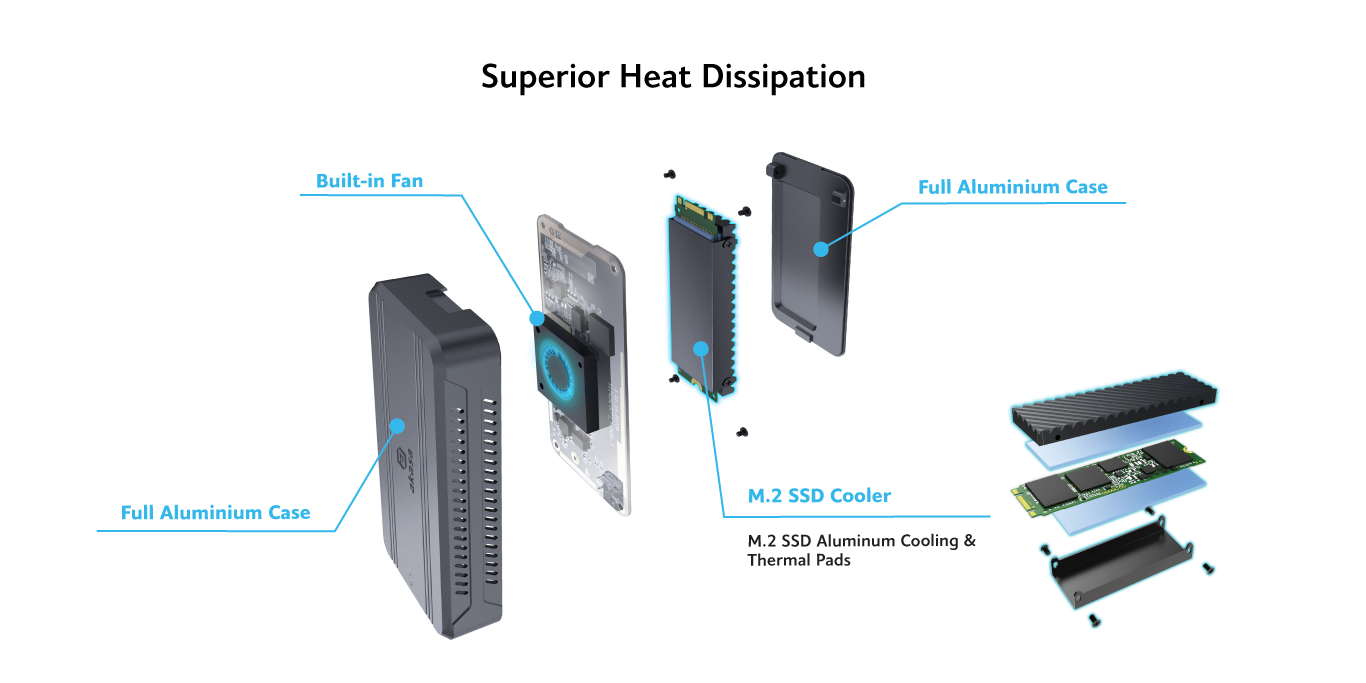

Our enclosure features a high-performance cooling system with an 8000RPM fan to prevent overheating and ensure optimal performance during intensive tasks.

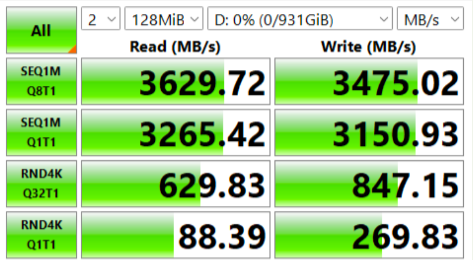

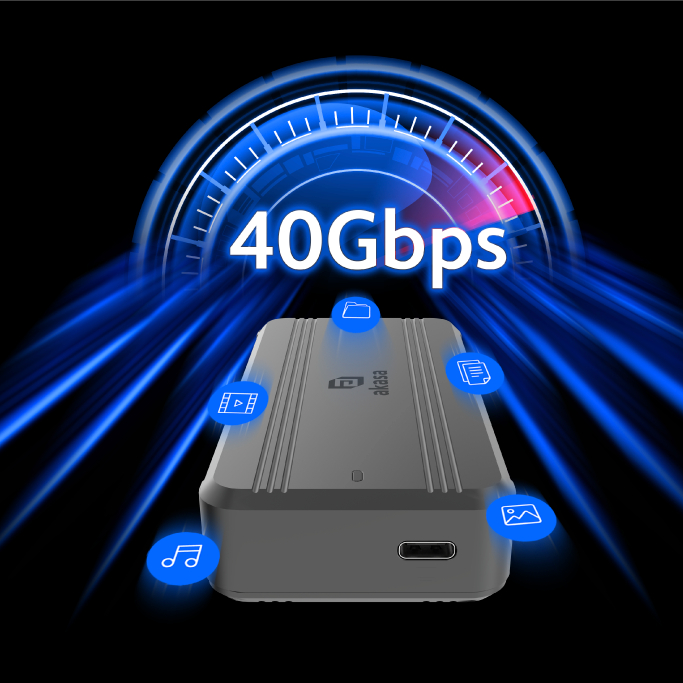

Equipped with USB 40Gbps connectivity, with backward compatibility for Thunderbolt 3 & USB 3.2. This enclosure delivers unparalleled data transfer rates, making it perfect for demanding applications and large file transfers. Boost your productivity with lightning-fast performance.

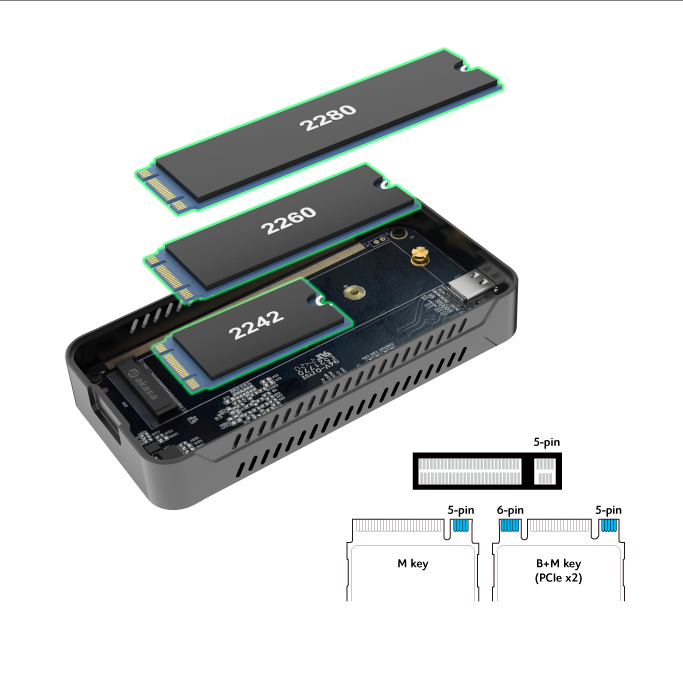

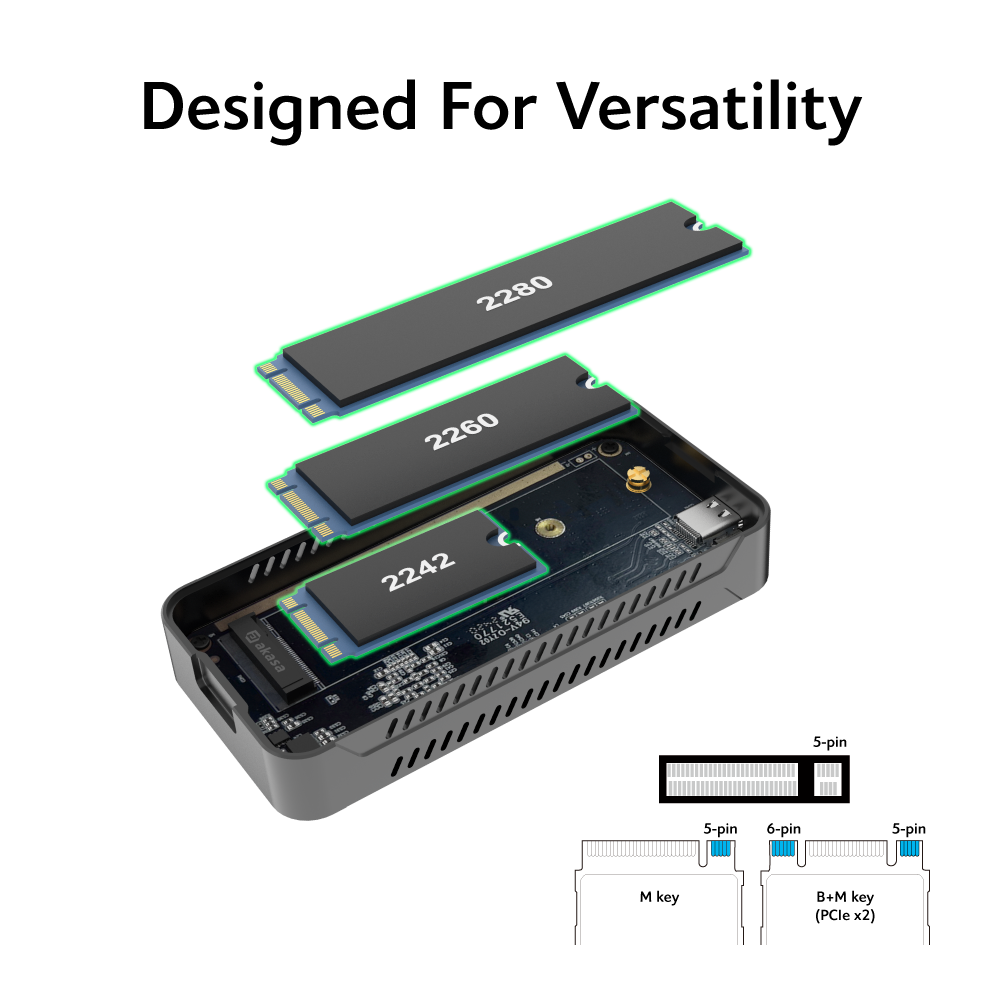

This enclosure supports different M.2 PCIe NVMe SSD sizes, including 42mm(2242), 60mm(2260), and 80mm(2280), offering a flexible and efficient storage solution for any need. Easily upgrade or expand your storage, confident that it fits a wide range of high-performance SSDs.

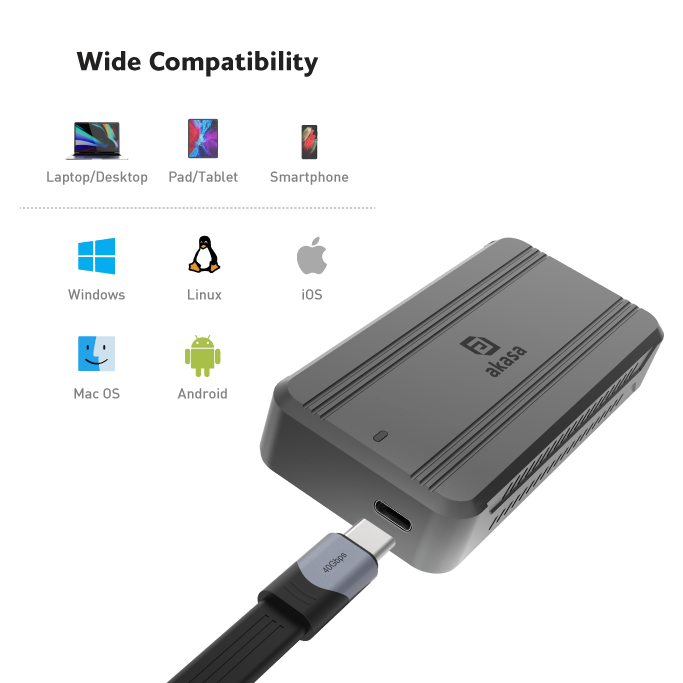

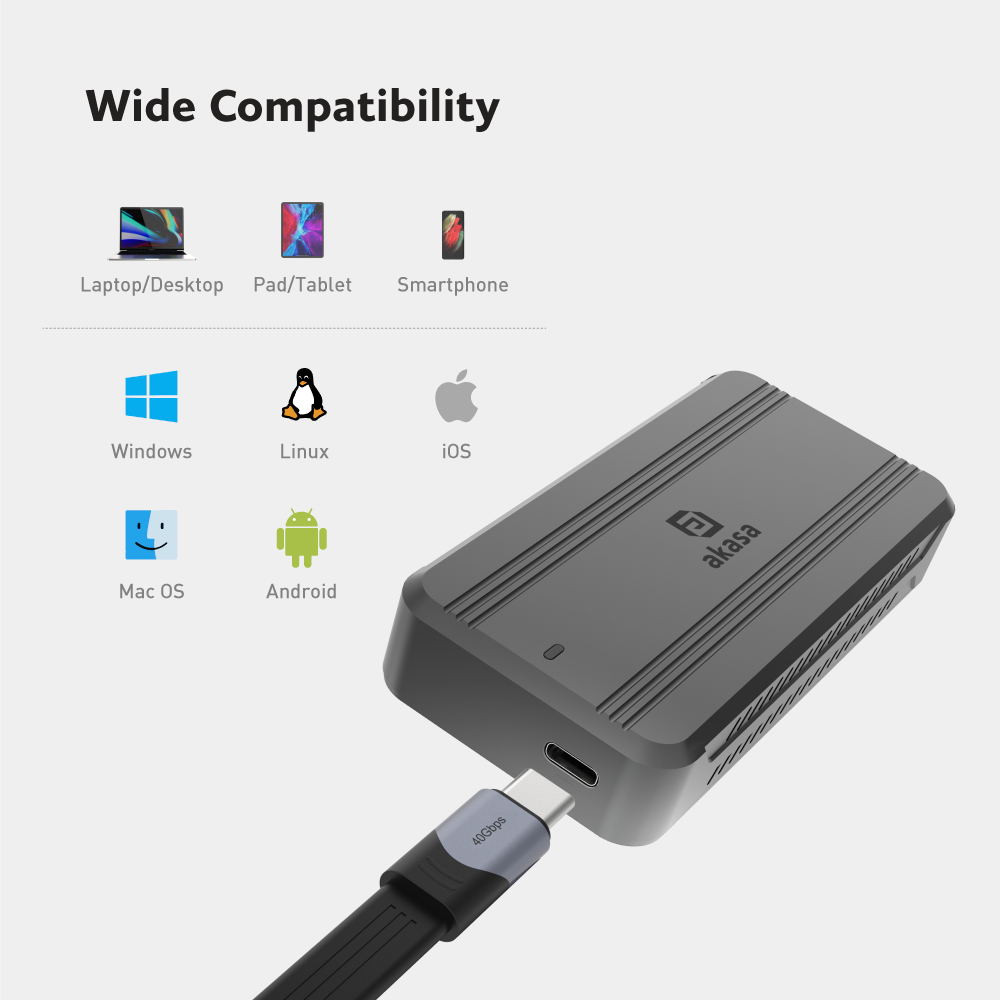

Our enclosure is compatible with a wide range of devices and operating systems, including Windows, macOS, iOS, Android, and Linux. Effortlessly integrate with your laptops, desktops, tablets, and smartphones, providing a versatile storage solution for all your digital needs.

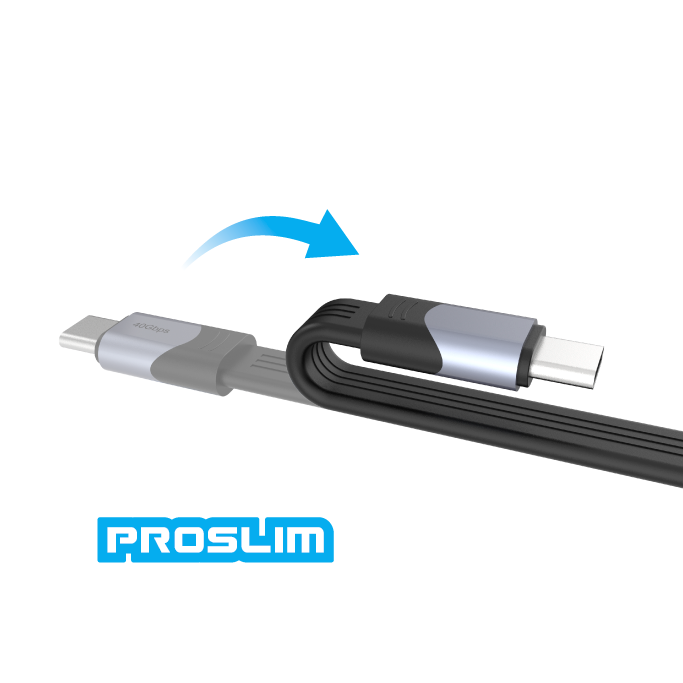

Equipped with ProSlim cable for stable and high-speed data transfer, it delivers consistent top-notch performance and exceptional long-lasting reliability.
| Application | USB 40Gbps aluminium enclosure for M.2 PCIe NVMe SSD |
|---|---|
| Operating System Support | Windows 8.X / 10 / 11 Mac OS Linux |
| External Interface | USB 40Gbps Type-C |
| Internal Interface | PCIe NVMe (compatible with M key and B+M key SSD) |
| Max Thickness of NVMe | 10.4mm (includes heatsink and SSD base) |
| PCle Compatibility | PCIe Gen 5, Gen 4, Gen 3, Gen 2, Gen 1 x2/x4 NVMe SSD 2280, 2260, 2242 size SSD |
| Transfer Rate | 40 Gbps (USB 4) |
| Protocol | USB Attached SCSI Protocol (UASP) specification compliant |
| Dimensions | 103.75 x 50.65 x 20.5 mm |
| Product Code | AK-ENU4M2-01 |

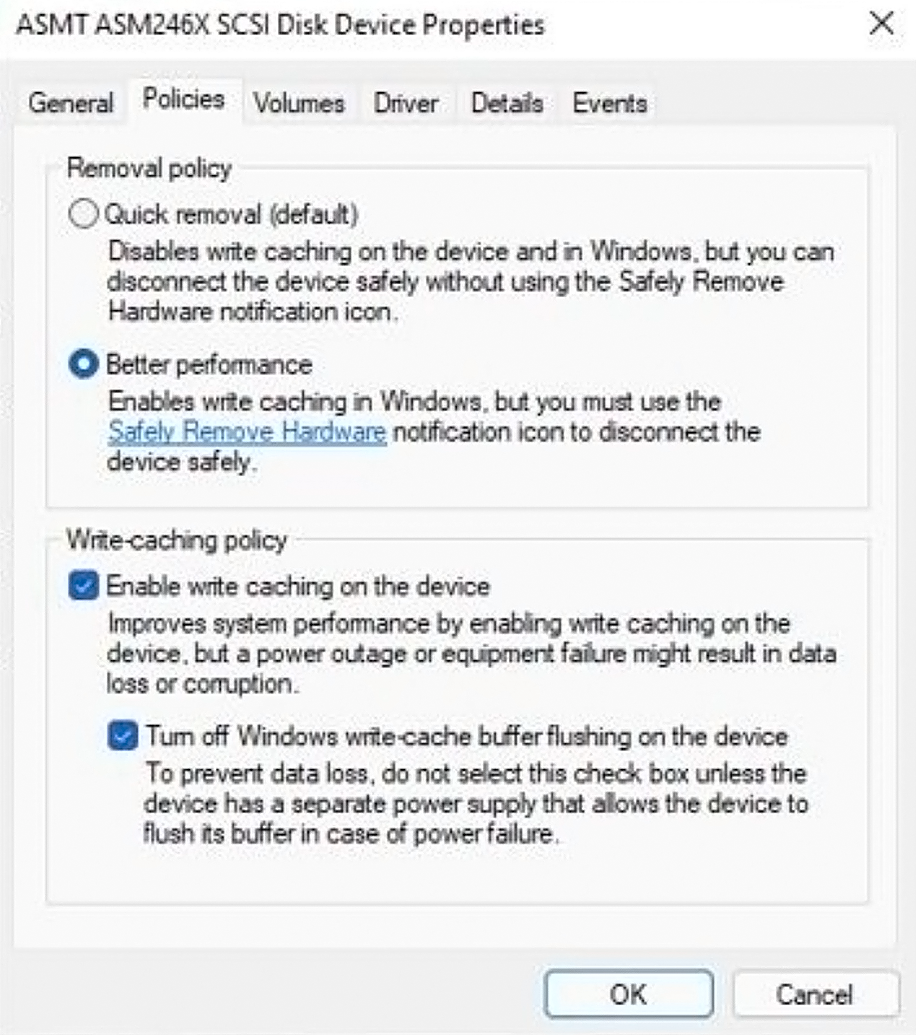

When using a Windows system computer, it is recommended to enable the following functions to optimize transmission performance:
Step1 : Find the hard disk device of this product in the device manager --> right-click
Step2 : Open the properties menu, select better performance in the strategy.
Step3 : And check both of the following write-caching strategies.
This setting can optimize and improve the SSD transmission performance.
