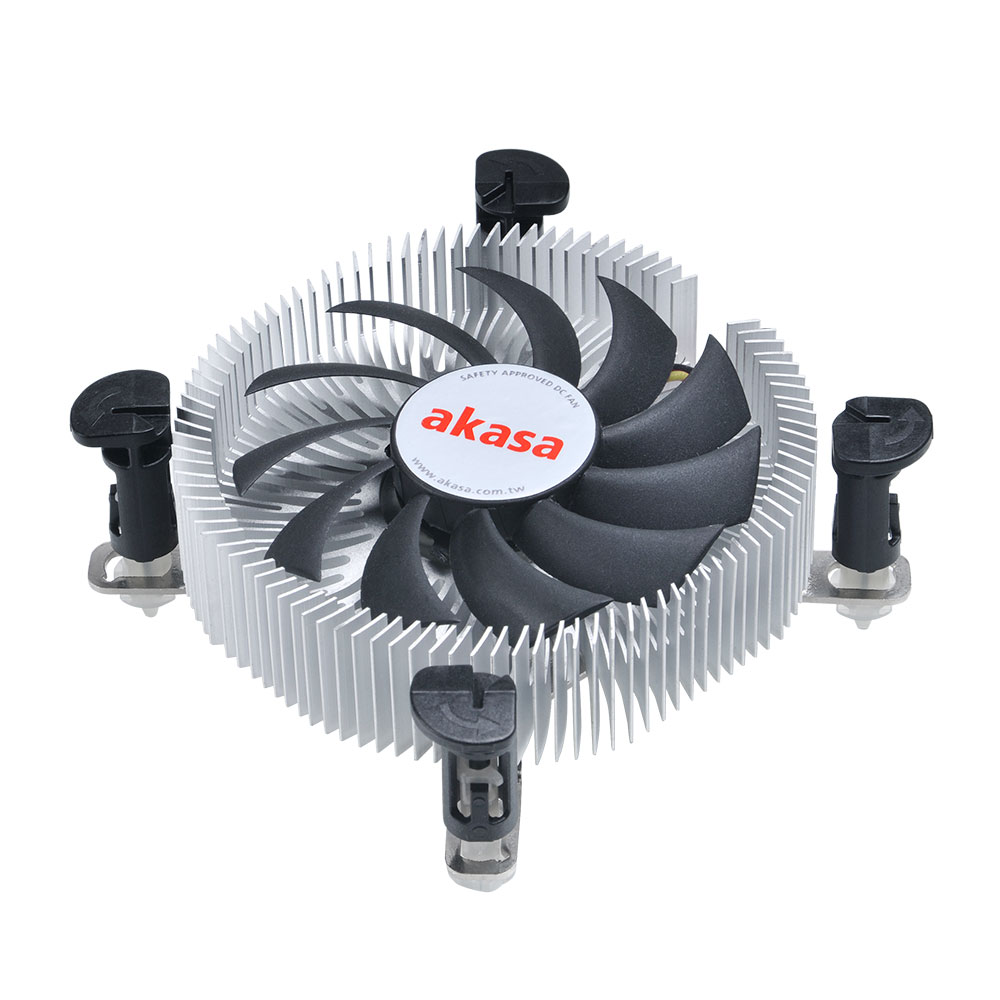

Ultra compact and low noise cooler for Intel Core 2 Duo and Core i3 CPU’s. The low profile design with embedded fan makes it a perfect solution for mini-ITX, HTPC and SFF systems.

Aluminium heatsink and enter bearing fan ensure high efficiency and long life. High engineered multi directional aluminium heatsink maximizes heat dissipation and PWM fan provides optimal CPU, motherboard and VRM cooling with minimal noise levels.

Intel approved pushpins ensure easy installation, reliable retention and maximum compatibility on LGA775, LGA115X and LGA1200 platforms without any mounting adjustment, pushpins will automatically slide into correct position. Pre-applied high performance thermal compound ensures clean and easy installation.

Hi-engineered aluminium heatsink
Multi-directional fins for maximum system cooling
Embedded 8cm PWM fan with long life Enter bearing
Intel approved push pins provide maximum compatibility
• Dual mounting for Intel LGA775, LGA115X and LGA1200 platforms
High performance thermal interface is pre-applied
Total height only 26mm

Socket Type Intel LGA775, LGA1150, LGA1151, LGA1155, LGA1156, LGA1200
Suggestion TDP (W) 45
Cooler Dimension 87.2 x 85.2 x 26 mm
Heatsink Material Aluminium fins and core
Installation Push-pins
Weight 152.8g
Product Code AK-CC7122EP01

Dimensions ∅75 x 10 mm
Bearing EBR Bearing
Fan Speed 600 - 3000 RPM
Max Airflow 23.45 CFM
Max Air Pressure 1.81 mm-H2O
Noise Level 15 - 30.75 dB(A)
Current Rating for Fan 0.19A
Voltage Rating for Fan DC 12V
Fan Connector 4-pin PWM
Fan Life Expectancy 40,000 hours
Warranty 2 years
