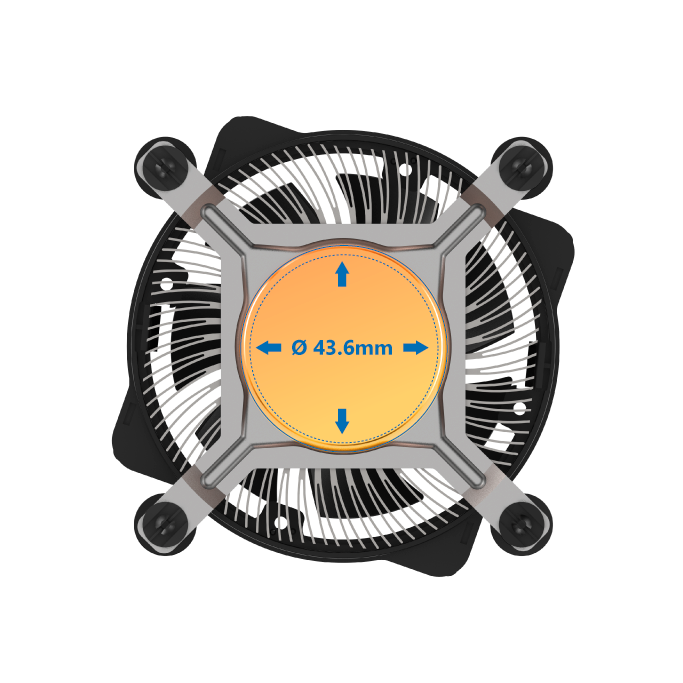

Extra Large Core Shape, More Cooling Performance
The new LGA1700 socket caters for processors with larger package sizes compared to previous desktop processor generations. To ensure maximum contact and thermal transfer, Akasa has increased the contact area between the cooler core and the processor in order to maximise heat dissipation and cooling performance.

Low-Noise and Efficient Cooling
Combines low-noise, efficient cooling with great value. Designed to work with CPU’s up to 125W thermal design but greater cooling efficiency can be attained with efficient case airflow. Perfect for workstation desktop systems.

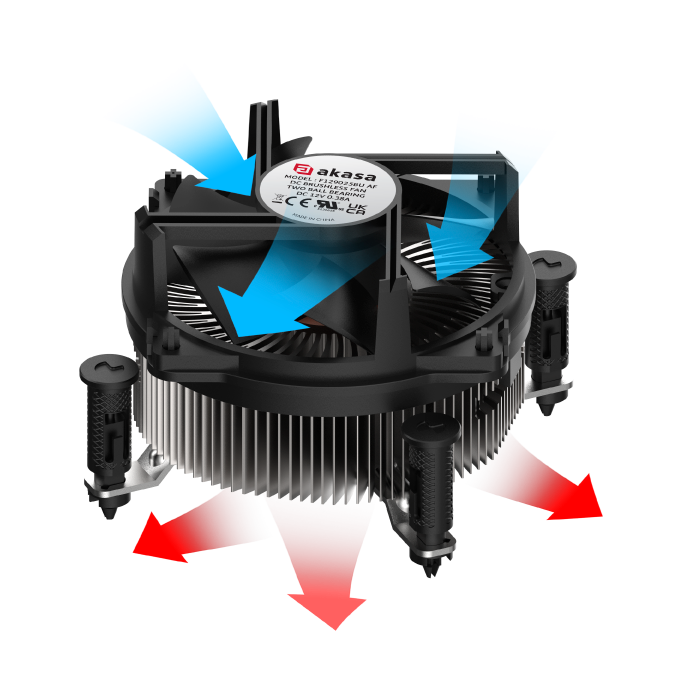

Intelligent and Optimised Design

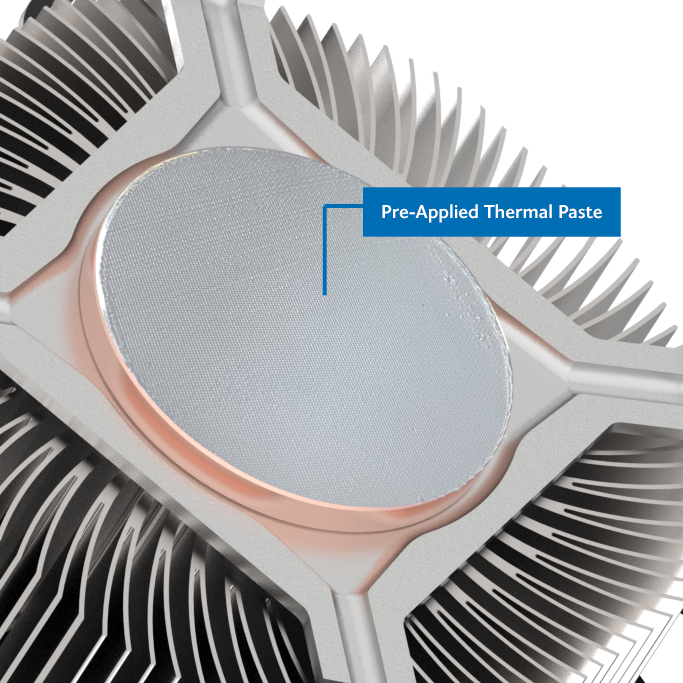

Hi-performance and engineered aluminium heatsink with bi-ped fins to double the dissipation area, coupled with 90mm fan that features intelligent PWM function, delivers as much air as needed at any given time to cool the CPU. Coupled with hi-grade thermal interface pre-applied. Ensuring that the cooler delivers outstanding cooling performance.

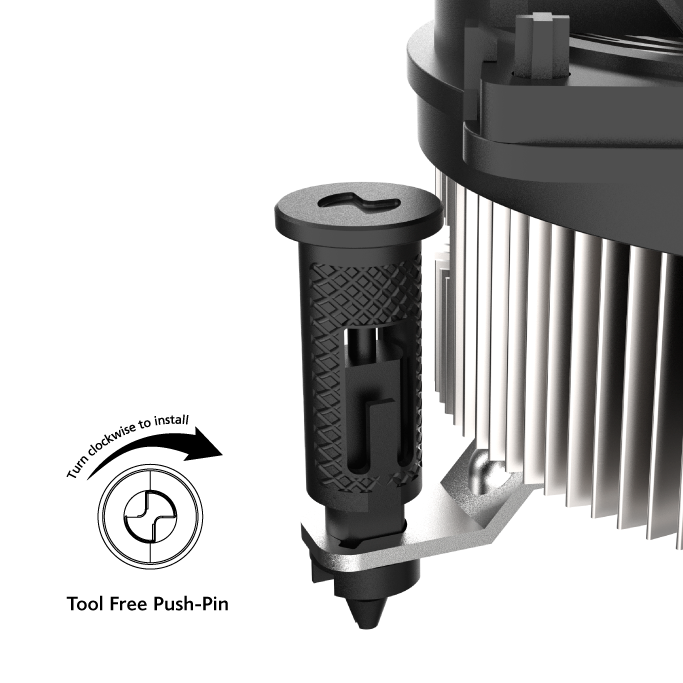

New and Easy Mounting Design
New push-pin design to cater for the Intel® LGA1700.

Array of Compatibility
Supports common desktop motherboards such as ATX, Micro-ATX, Mini-ITX, and Thin Mini-ITX.

• Height of the cooler is only 63.2mm

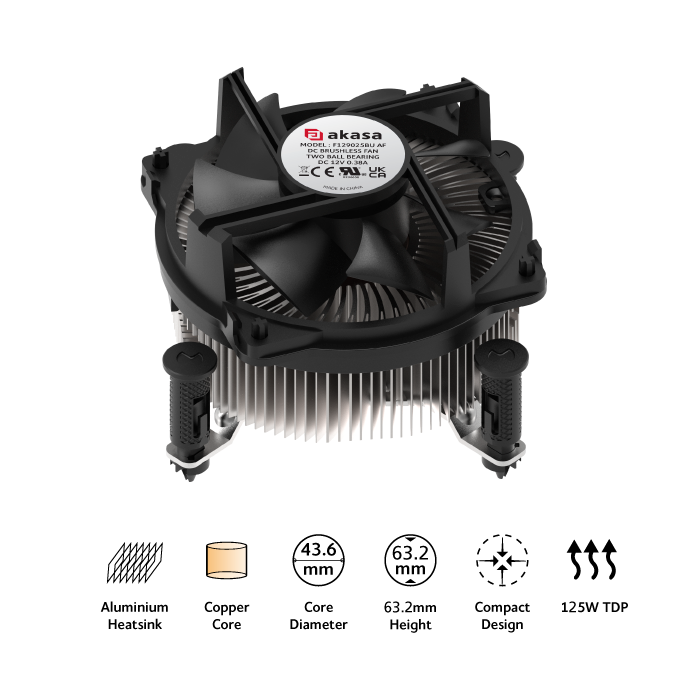

• Large full-height copper core for rapid heat dissipation
• Compatible with Intel® LGA 1700
• Intelligent PWM and silent fan
• 90mm low-noise and durable PWM fan

Socket Type Intel LGA1700
Suggestion TDP (W) 125
Cooler Dimension 94.8 x 94.8 x 63.2 mm
Heatsink Material Aluminium fins with copper core
Installation Push-pins
Weight 439.1g
Product Code AK-CC6606BP01

Dimensions ∅90 x 25 mm
Bearing Two Ball Bearing
Fan Speed 500 - 3400 RPM
Max Airflow 40.90 CFM
Max Air Pressure 3.81 mm-H2O
Noise Level 19 - 36 dB(A)
Current Rating for Fan 0.38A
Voltage Rating for Fan DC 12V
Connector 4-pin PWM
Fan Life Expectancy 80,000 hours
Warranty 2 years
