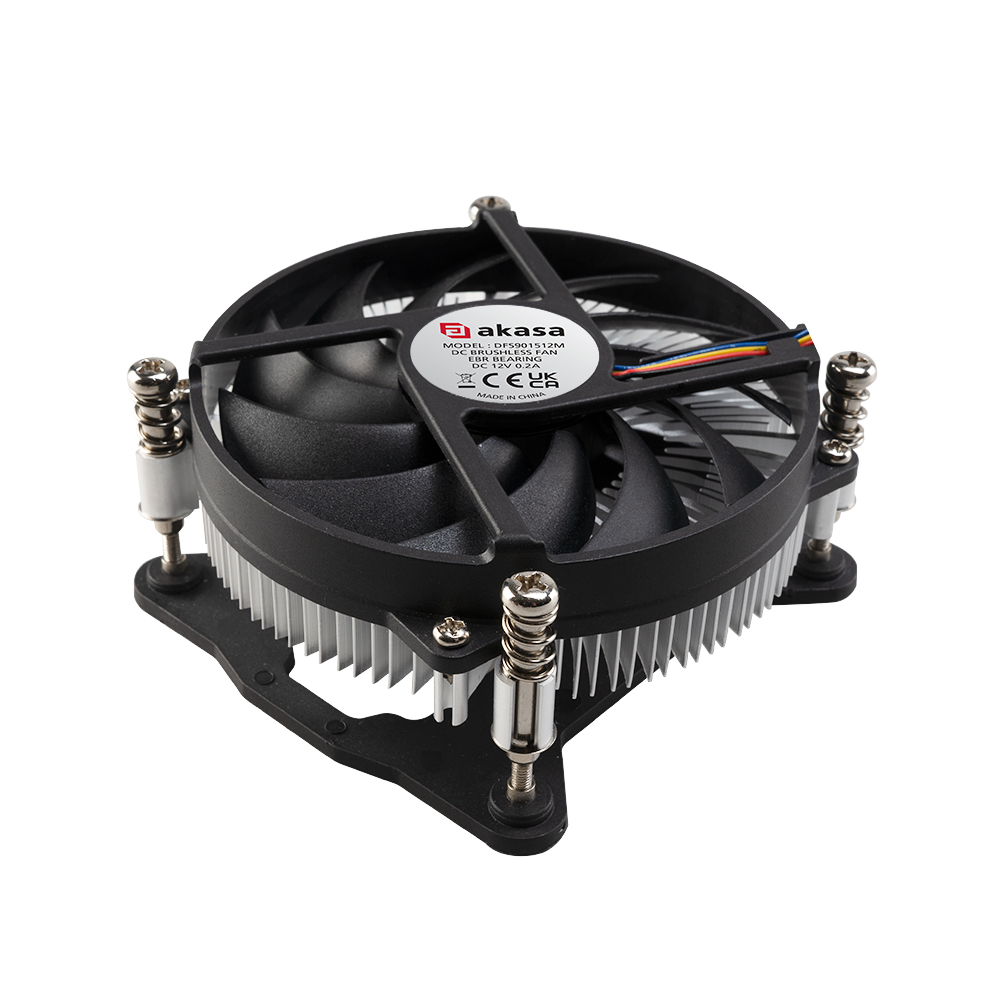

KS12
Low Profile CPU Cooler (31.8mm), 96mm Fan, Screw Mount, TDP 65W, Intel
Low profile design optimised for Mini-ITX and HTPC cases. 95mm intelligent PWM fan delivers outstanding focused airflow.
Product Code: AK-CC6308EP01
KS12
Low Profile CPU Cooler (31.8mm), 96mm Fan, Screw Mount, TDP 65W, Intel
Low profile design optimised for Mini-ITX and HTPC cases. 95mm intelligent PWM fan delivers outstanding focused airflow.
The thin sickle-shape fan blades of the fan along with the radial aluminium heatsink deliver outstanding cooling performance. With a height of only 31.8mm this low profile cooler is optimised to fit in Mini-ITX, HTPC or other small form factor cases. The intelligent PWM fan delivers as much air as needed at any given time to cool the CPU. The spring-loaded screws with backplate mounting design ensure maximum stability and ideal mounting pressure. Thermal compound is pre-applied.
• High engineered radial aluminium heatsink for effective cooling performance

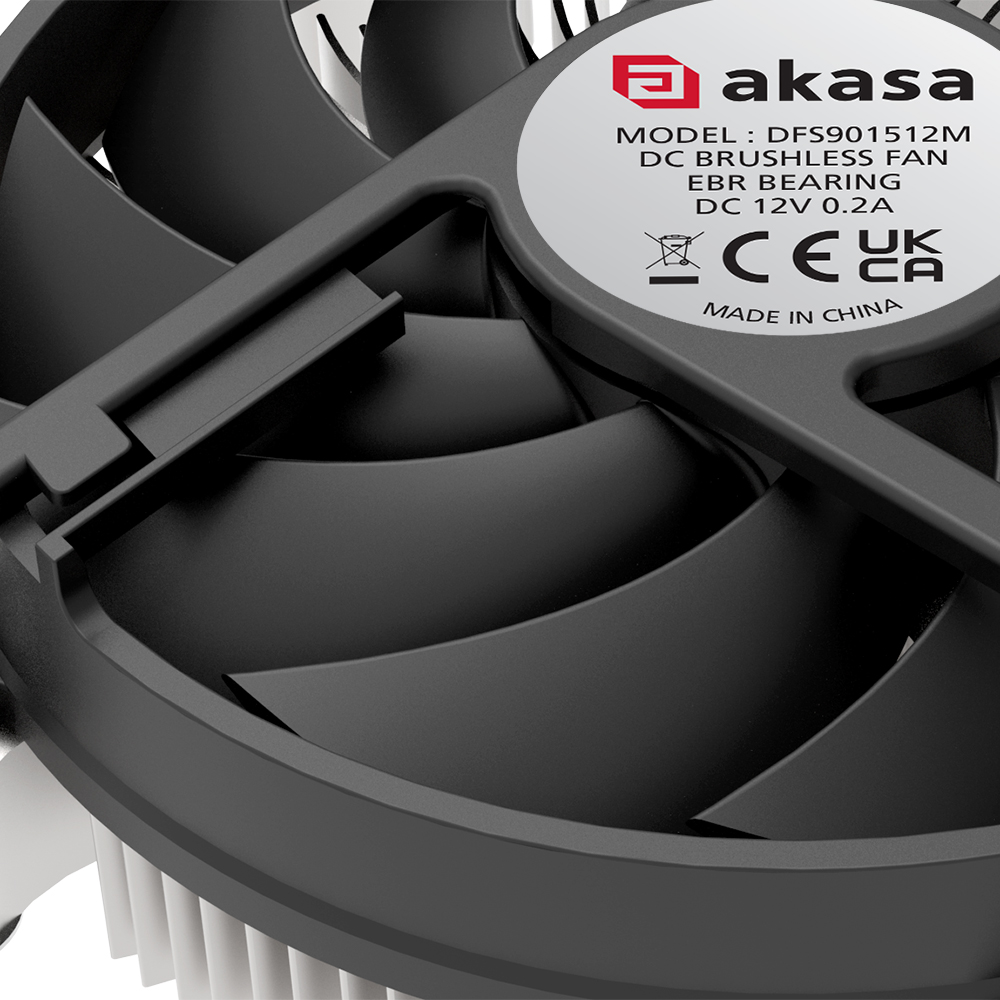

• 95 mm low noise intelligent PWM fan

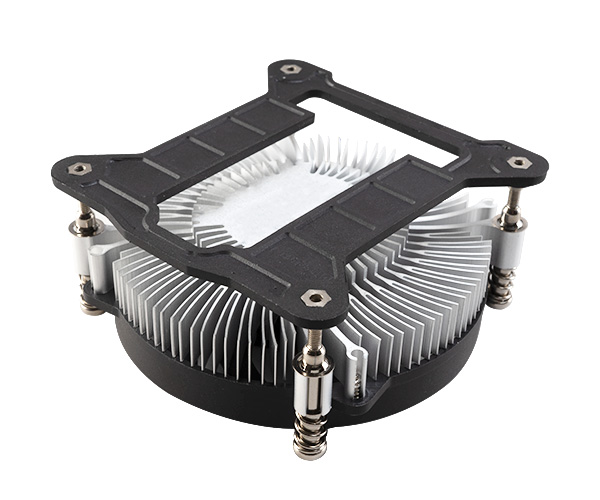

• Spring-loaded screws and backplate mounting design ensure maximum stability and ideal mounting pressure
• Hi-grade thermal interface pre-applied
| Socket Type | Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200 |
|---|---|
| Suggestion TDP (W) | 65 |
| Cooler Dimension | 96 x 96 x 31.8 mm |
| Heatsink Material | Aluminium |
| Installation | Screws and retention backplate |
| Weight | 184g |
| Product Code | AK-CC6308EP01 |
| Dimensions | ∅96 x 16.8 mm |
|---|---|
| Bearing | EBR Bearing |
| Fan Speed | 800 - 2800 RPM |
| Max Airflow | 36.28 CFM |
| Max Air Pressure | 1.7 mm-H2O |
| Noise Level | 15 - 37.6 dB(A) |
| Current Rating for Fan | 0.2A |
| Voltage Rating for Fan | DC 12V |
| Fan Connector | 4-pin PWM |
| Fan Life Expectancy | 40,000 hours |
| Warranty | 2 years |
