Plato PX
Slim fanless case for 8th Generation Intel® NUC board (Provo Canyon)
Low profile fanless case for 8th Generation Intel® NUC boards (Provo Canyon). Supports VESA mounting. Accommodates 2.5" SATA HDD/SSD. Compatible with Intel® NUC8v7PNH / NUC8v7PNK / NUC8v7PNB / NUC8v5PNH / NUC8v5PNK / NUC8v5PNB / NUC8i3PNH / NUC8i3PNK / NUC8i3PNB.
|
Plato PX
Slim fanless casefor 8th Generation Intel® NUC boards (Provo Canyon) support 2.5" SATA HDD / SSD
• Aluminium fanless CPU cooling design
• Stylish front panel diamond effect • Provides one rear serial port • Compatible with the following Intel® NUC Board: NUC8v7PNH / NUC8v7PNK / NUC8v7PNB NUC8v5PNH / NUC8v5PNK / NUC8v5PNB NUC8i3PNH / NUC8i3PNK / NUC8i3PNB Supported board allows 24/7
sustained operation as tested by Intel® for a diverse range of applications, including robotic assembly lines With a commercial NUC’s
first ever Thunderbolt 3 and two HDMI ports, power three 4K@60Hz digital signage displays Stylish front panel
diamond edge finish Fanless
Aluminium fanless CPU cooling design |
| Material | Aluminium |
|---|---|
| Motherboard types | UCFF 4" X 4" |
| Motherboard support | Intel® NUC Board (kit): NUC8v7PNH / NUC8v7PNK / NUC8v7PNB / NUC8v5PNH / NUC8v5PNK / NUC8v5PNB / NUC8i3PNH / NUC8i3PNK / NUC8i3PNB |
| Dimensions | 247 x 200 x 38.5mm (W x D x H) |
| Drive bays | 2.5" SSD/HDD (up to 9.5 mm high) |

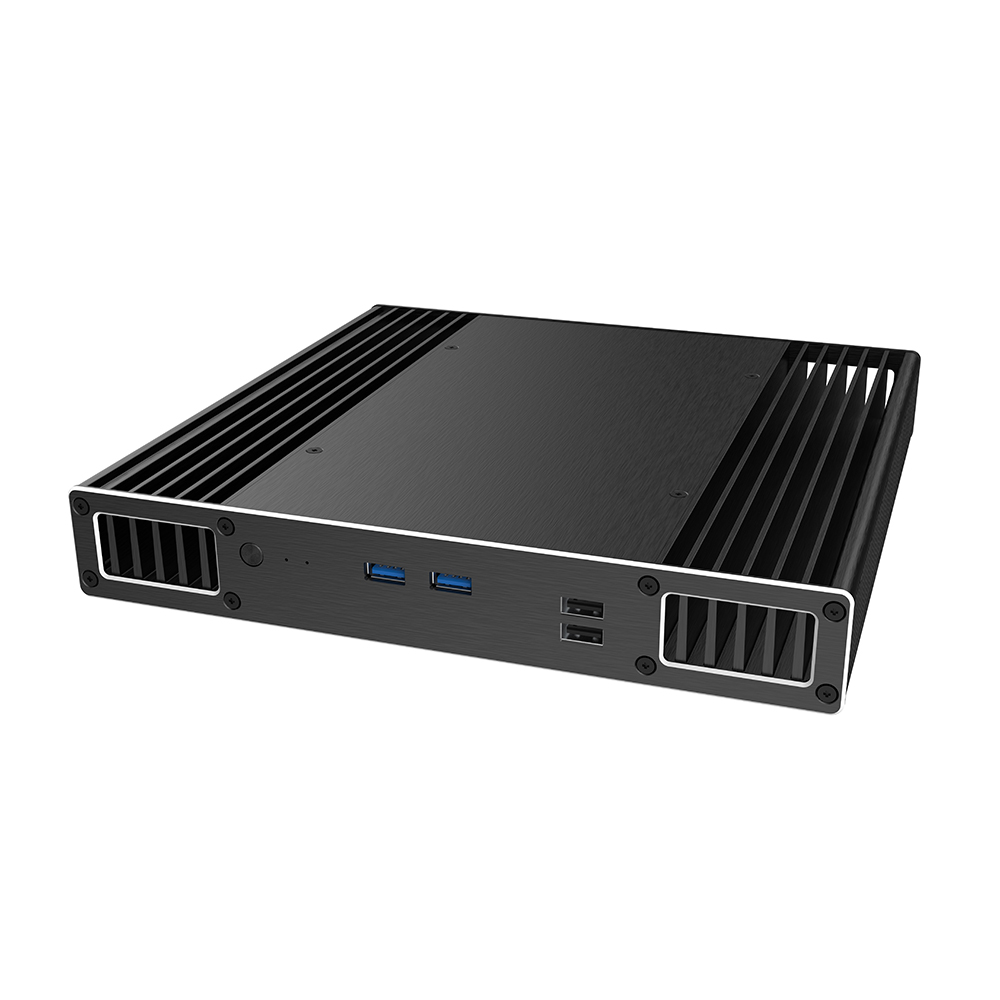

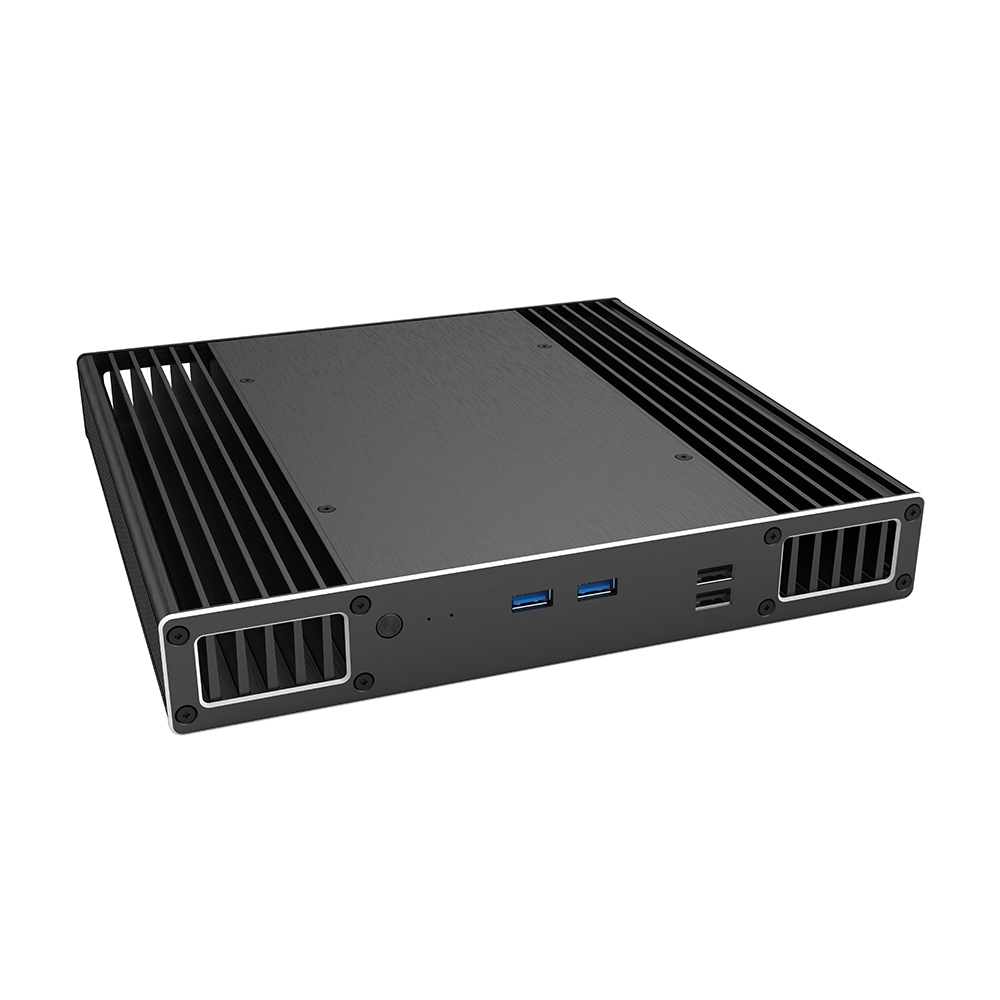

| Front I/O Interfaces | Power button, power and HDD led, USB 3.0 port x 2, USB 2.0 port x 2 |
| Antenna fitting holes | 2 |
| Security | Kensington lock |
| VESA mounting | Support |
| Optional Power Adaptor | AK-PD065-01M |
| Product Code | A-NUC51-A1B / A-NUC51-M1B |
