Turing RC Pro
Contemporary Premium Fanless Case for ASUS NUC 14/15 Pro (Revel Canyon / Cyber Canyon)
Perfectly balanced in cooling performance, compact size and contemporary design. Internal M.2 SSD heatsink reduces heat and enhances performance. Compatible with ASUS NUC 14/15 Pro models up to 40W TDP.
• Solid aluminium fanless cooling design
• Stylish cover panels with diamond effect
• Positioned vertically or horizontally
• Perfect for home, business and commercial applications
• Designed for ASUS NUC 14/15 Pro up to Core™ i7 (40W TDP)
Designed for the ASUS NUC 14 Pro (Revel Canyon) and ASUS NUC 15 Pro (Cyber Canyon) which deliver best-in-class performance thanks to the all-new Intel® Core™ Ultra processor family. It is the most comprehensive mini-PC built with Intel vPro® Enterprise for exceptional security, manageability, and stability. Harness the prowess of Intel® Core™ Ultra processors' three AI engines – GPU, NPU, and CPU – for high throughput, low power, and fast response. Unleash your full potential with the ultimate compact computing solution today.

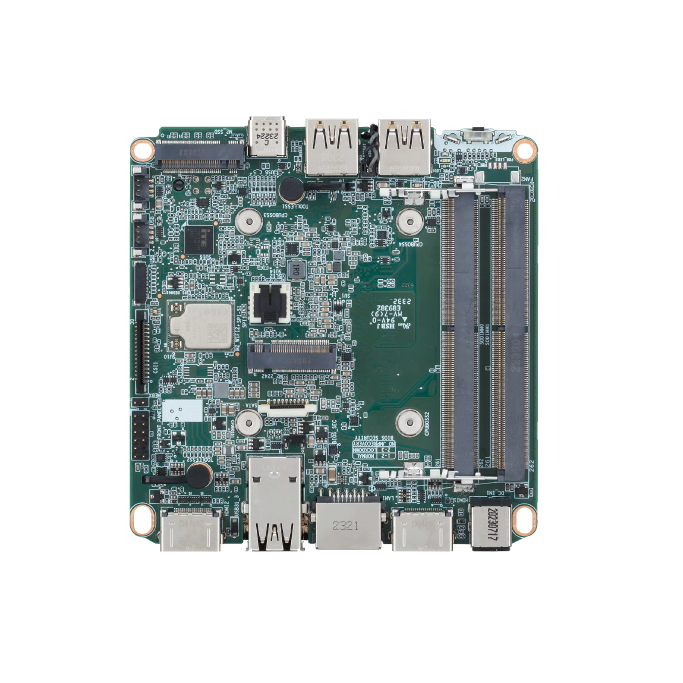

Learn more about the ASUS NUC 14/15 Pro (Revel Canyon / Cyber Canyon) >Easily removable top cover and rear panel with fixed thermal module with two heat pipes to transfer the heat from the CPU. Making installation of the NUC board as easy as possible.
Bi-symmetrical extruded fins on either side of the case maximise the surface area of the exterior for increased heat dissipation. Coupled with internally hi-efficient passive copper thermal module and 6mm heatpipes to ensure the Thermal Design Point (TDP) is met, with the case supporting the ASUS NUC 14/15 Pro up to 40W TDP.
Fanless CPU design eliminates the need for noisy mechanical fans so that true silence can be achieved. Paired with the use of Solid State Drives, one can truly immerse themselves in the experience of soundless acoustics.
The internal M.2 SSD thermal kit efficiently transfers residual heat generated by the SSD to the outside of the case, effectively keeping the SSD cool and preserving its performance.
Aluminum case provides durability and long-lasting use. Symmetrically extruded fins and striking, classically inspired panels combine for stunning aesthetics and enhanced functionality, making the case look great in any environment.
The Turing RC Pro case provides connector openings for dual HDMI 2.1 and dual Thunderbolt™ 4 from the ASUS NUC 14/15 Pro for connectivity of four 4K displays. Perfect for an array of business applications such as security and digital signage.
ldeal for home and business applications from digital signage to home-theatre setups and more.
The Turing RC Pro is designed for the ASUS NUC 14/15 Pro with Intel® Core™ Ultra mobile processors and integrated Intel® Arc™ graphics. Play without fan noise so you can focus on your gaming experience!
The Turing RC Pro case features a compact size of 2.8L and fanless CPU cooling for silent operation and classic styling, all wrapped in a beautiful premium brushed aluminum finish. It is the ideal platform for a discreet, stylish and powerful mini-PC based on an ASUS NUC.
Measuring just 260mm in depth, 113.5mm in height, and 95mm in width, the Turing RC Pro boasts a small footprint that seamlessly fits into any environment. Its compact size makes it an ideal choice for space-constrained areas, ensuring that you get powerful performance without the bulk.
Optional hi-quality external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR) to connect the antenna to the Wi-fi connector. Perfect additions for your fanless ASUS NUC build should a wireless connection be required.
The ASUS NUC 14/15 Pro is available as a Mini-PC, Kit or Board models. For Board only models, there are optional compatible external power adapters available: 120W, 19V (AK-PD120-04M) for the Core i7 and i5 models, and 90W, 19V (AK-PD090-01M) for the Core i3 model.
| Material | Aluminium body / fins with anodised finish Copper thermal module x1 6 mm copper heatpipe x2 |
|---|---|
| Motherboards Types | UCFF 4" X 4" |
| Motherboard Support | ASUS NUC 15 Pro (Cyber Canyon) Kit/Board/Mini-PC NUC15CRB, NUC15CRH, NUC15CRK, NUC15CRH-B, NUC15CRK-B, NUC15CRHI3, NUC15CRKI3, NUC15CRHU5, NUC15CRHV5, NUC15CRKV5, NUC15CRHC5, NUC15CRKC5, NUC15CRKU5, NUC15CRHC7, NUC15CRKC7, NUC15CRHV7, NUC15CRHU7, NUC15CRKU7, NUC15CRKV7 ASUS NUC 14 Pro (Revel Canyon) Kit/Board/Mini-PC NUC14RVK, NUC14RVH, NUC14RVS, NUC14RVB, NUC14RVKC3, NUC14RVHC3, NUC14RVBC3, NUC14RVKU5, NUC14RVHU5, NUC14RVSU5, NUC14RVBU5, NUC14RVKv5, NUC14RVHv5, NUC14RVSv5, NUC14RVBv5, NUC14RVKU7, NUC14RVHU7, NUC14RVSU7, NUC14RVBU7, NUC14RVKv7, NUC14RVHv7, NUC14RVSv7, NUC14RVBv7 |
| Dimensions | 95 x 260 x 113.5 mm (W x D x H) |
| Maximum TDP Support | 40W |
| Drive Bays | 2.5" HDD/SSD (up to 9.5 mm high) only for ASUS NUC 14 Pro (Revel Canyon) *Note: ASUS NUC 15 Pro (Cyber Canyon) does not support 2.5" SATA HDD/SSD drives |
| Front I/O | Power button, power and HDD LED, USB 3.2 port x2, USB 3.2 Type-C |
| Rear I/O | DC-In port, HDMI port x2, USB Type-A port x2, USB Type-C x2, LAN port x1 |
| Antenna Fitting Holes | 2 |
| Security | Kensington lock |
| VESA Mounting | Support |
| Optional Power Adapter | • Core™ 3 models - 90W 19V adapter: AK-PD090-01M • Core™ Ultra 5, Core™ Ultra 7 - 120W 19V adapter: AK-PD120-04M |
| Product Code | A-NUC101-M1B |
