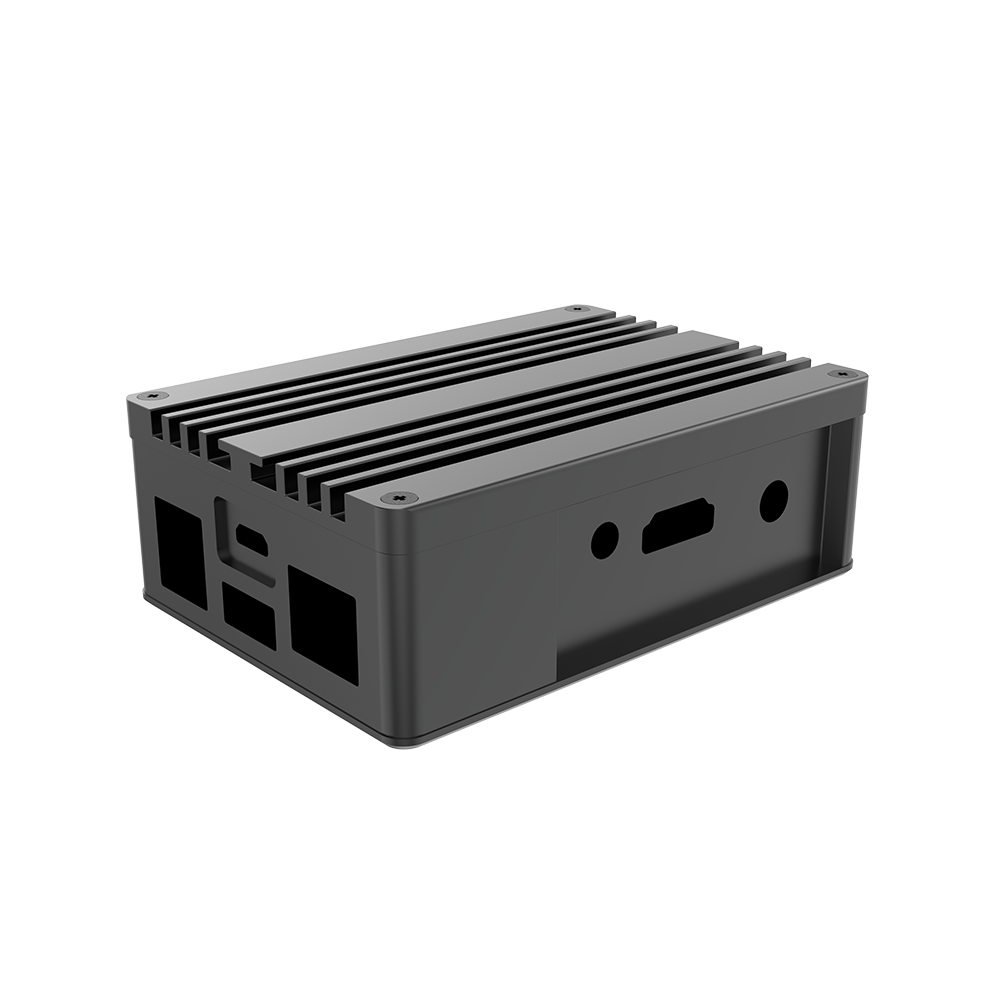

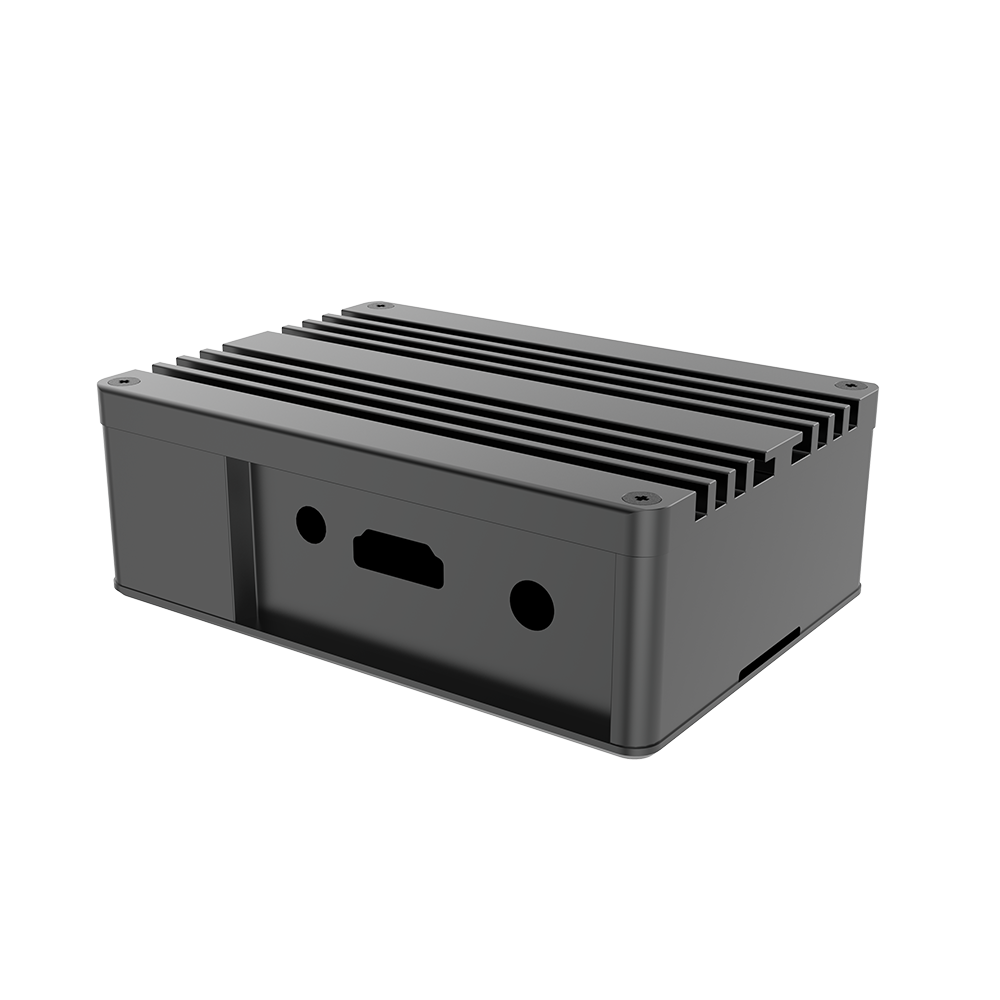

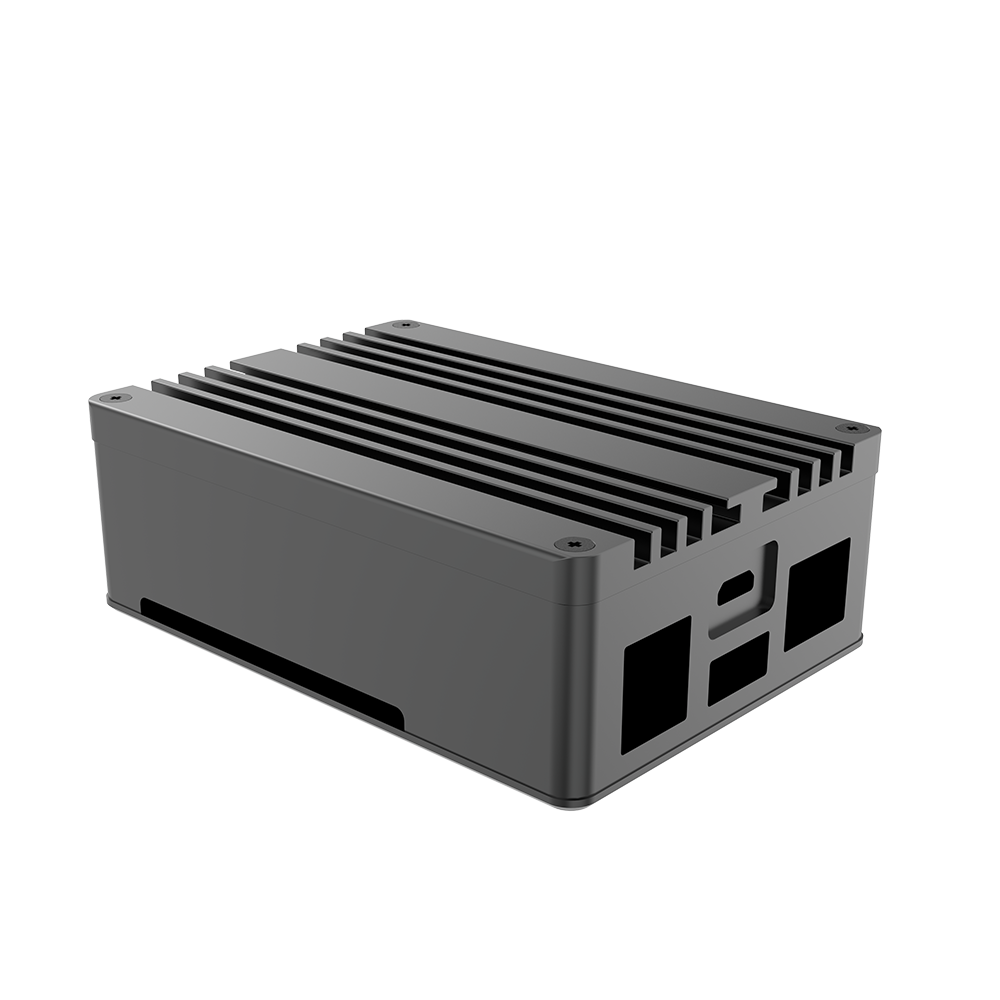

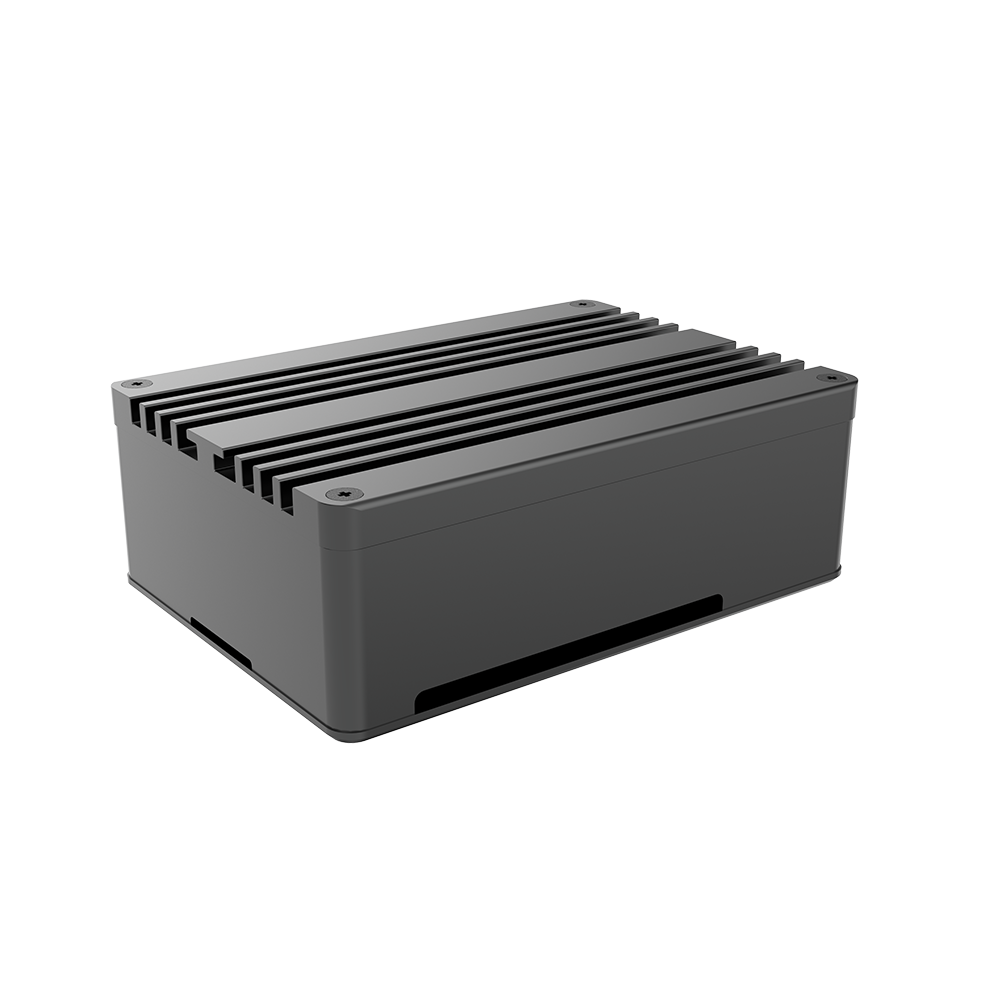

Fanless Case for ASUS Tinker 3S with Arm Processor
Fanless case for ASUS Tinker 3S with Arm processor which is perfect for space-constrained environments in smart retail and IoT applications such as IoT gateways, digital signage, and self-service kiosks.
• Aluminium fanless CPU cooling design
• Designed for ASUS Tinker 3S (learn more about the SBC)
• Dimensions: 68.3 x 96 x 33.5mm (W x D x H)
• Compact size of sub-0.3L
• Perfect for space-constrained environments such as IoT gateways, digital signage, and self-service kiosks applications
• Optional wall, VESA or DIN rail mountings
• Opton to cover some of the interfaces on the SBC if they are not required
| Material | Aluminium |
|---|---|
| Motherboards Types | SBC |
| Motherboard Support | ASUS Tinker 3S |
| Dimensions | 68.3 x 96 x 33.5mm (W x D x H) |
| Maximum TDP Support | 10W |
| I/O Interfaces | Audio jack, HDMI, DC-in, USB-A x 3, USB micro-B, LAN, GPIO, Display ribbon |
| Mounting | Optional for wall, VESA or DIN |
| Product Code | A-ITC135-M1B |
