Premium CPU Cooler
• Sleek all-black heatsink and
  tranquil blue fan that channels
  the calm and power of oceanic
• Maximum reliability in cooling
• Secure and easy mounting
• Optimised footprint for ideal
  memory compatibility
• Advanced Hydro Dynamic
  Bearing for increased fan life
• Compatible with the new LGA 1700
Designed for LGA 1700
Increased contact surface area allows for more heat to be dissipated at a time
Maximum Reliability in Cooling Performance
4 high performing copper heat pipes with Direct Touch Technology (DTT) for efficient heat dissipation. Superior rotor design with Hydro Dynamic bearing for improved lubrication, reducing fan noise and extending fan life up to 40,000 hours. Ensuring the cooler is able to support CPU’s up to 185W TDP.
Advanced Fan
Alucia fan with advanced blade
technology, intelligent PWM
synced speed control, and
damping pads to reduce
operating vibration.
Premium Badge
Metallic Akasa badge
reinforces the premium
feel and overall

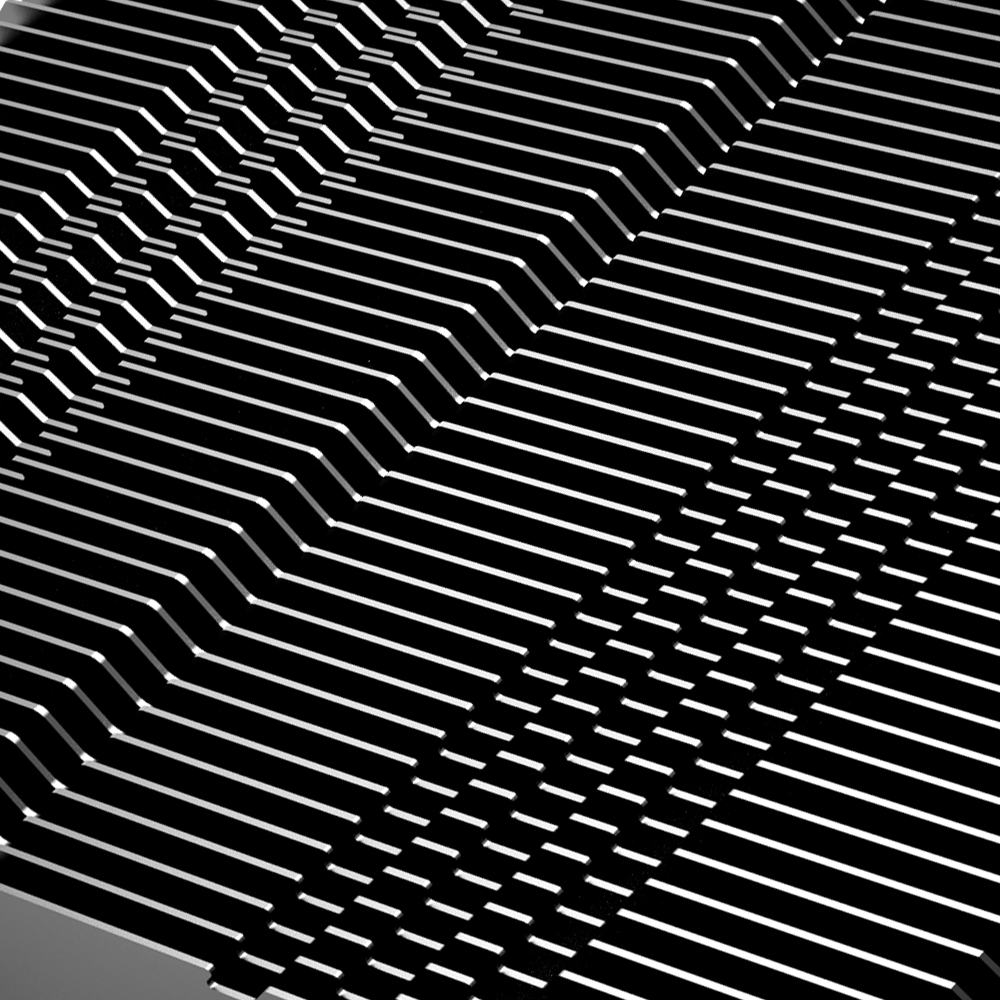

Sleek Black Fins
High density design for maximum thermal distribution to ensure CPU has superb cooling. Electro-painted in black for corrosion resistance and sleek aesthetics.
Four Heatpipes
Highly conductive with Direct Contact Technology that maximises efficient heat transfer from the CPU to the fins.
Easy Installation & Wide Compatibility
Mounting kit offers easy and secure installation for a wide range of Intel® and AMD motherboards.
For most Intel® and AMD sockets: LGA2066/2011/1700/1156/1155
Memory Compatibility
Slanted heatsink designs for RAM compatibility including mini-ITX
Included Ultra-Performance Thermal Paste
T5 Pro-Grade Plus thermal paste is included with hybrid silicone and nano-diamond particles for ultra-performance. Outperforming other top selling ultra-performance competitor thermal pastes.
Included Extra Clips
An optional choice to install an additional fan for enhanced cooling efficiency.

Socket Type Intel LGA1150, LGA1151, LGA1155, LGA1156, LGA1200, LGA1700, LGA1851, LGA2011, LGA2066, AMD Socket AM4, AM5
Suggestion TDP (W) 185
Cooler Dimension 148 x 120 x 92 mm
Heatsink Material Aluminium fins with copper heatpipes
Installation Mounting screw and bracket kit
Weight 643.7g
Product Code AK-CC4021HP01

Dimension 120 x 120 x 25 mm
Bearing HD Bearing
Fan Speed 500 - 2000 RPM
Max Airflow 56.3 CFM
Max Air Pressure 1.94 mm-H2O
Noise Level 16 - 33.1 dB(A)
Current Rating for Fan 0.2A
Voltage Rating for Fan DC 12V
Fan Connector 4-pin PWM
Fan Life Expectancy 40,000 hours
Warranty 2 years
