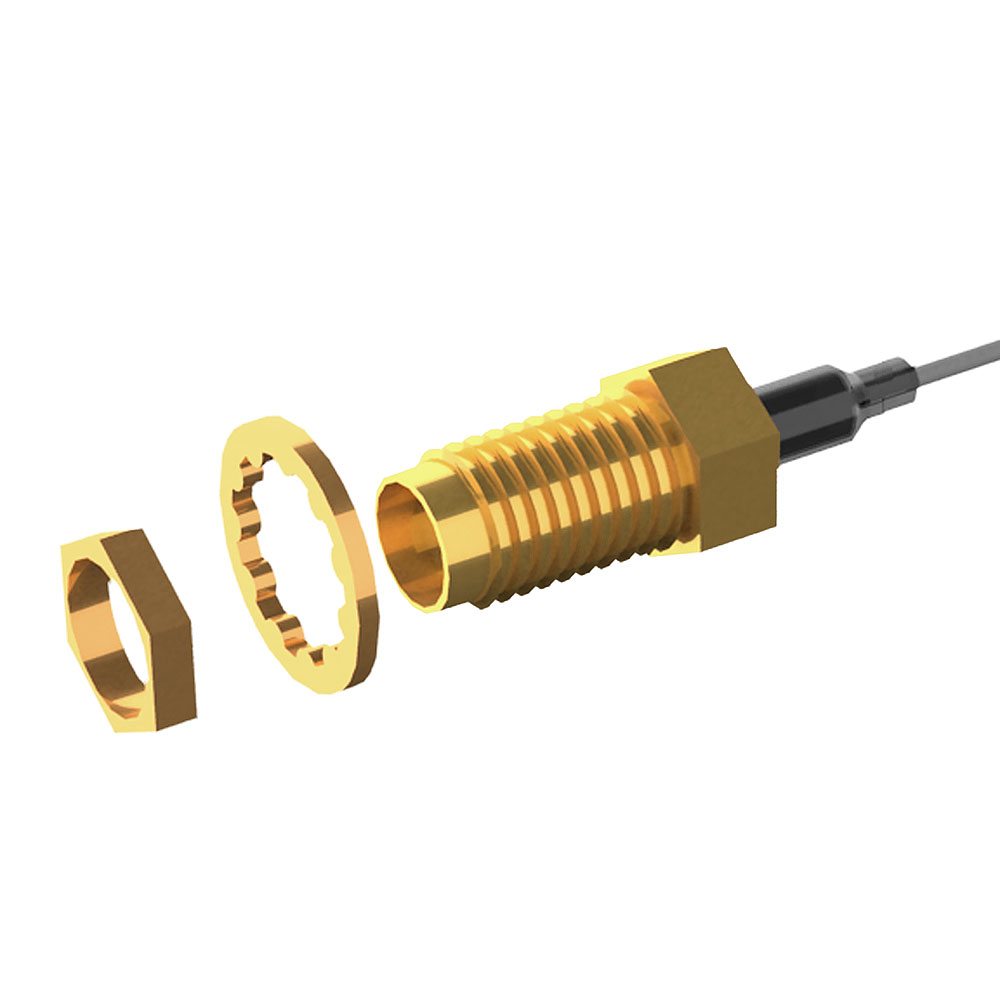

I-PEX MHF4L to RP-SMA Female Pigtail Cable
22 cm length
Easily utilise and extend the Wi-Fi and bluetooth functionality of your NUC or SFF motherboard whilst installed inside an Akasa fanless case when coupled with an omni-directional antenna.
Comes in 15 or 22 cm lengths.
|
I-PEX MHF4L
to RP-SMA Female Pigtail Cable • Connects a Wi-Fi antenna cable to
a Wi-Fi/Bluetooth module • Easy installation • Designed for common Wi-Fi module controllers with I-PEX MHF4L connectors • Perfect for Intel NUC, Asus PN50 and other SFF mainboards with onboard Wi-Fi controllers that are mounted inside Akasa fanless cases • Comes in 15 or 22 cm lengths Note: The MHF4 connectors are tiny and are
not intended for repeated mating/de-mating without early failure. |
| Frequency range | 0 - 6 GHz |
|---|---|
| Impedance | 50 Ω |
| Insertion loss | ≥ -1.5 dB |
| VSWR | ≤ 2.0 |
| Connector | RP-SMA female I-PEX MHF4L |
| Weight | 3.5 g |
| Operating temperature | -40ºC - +85ºC |
| Length | 150 mm (A-ATC01-150GR) 220 mm (A-ATC01-220GR) |
| Product code | A-ATC01-150GR / A-ATC01-220GR |
