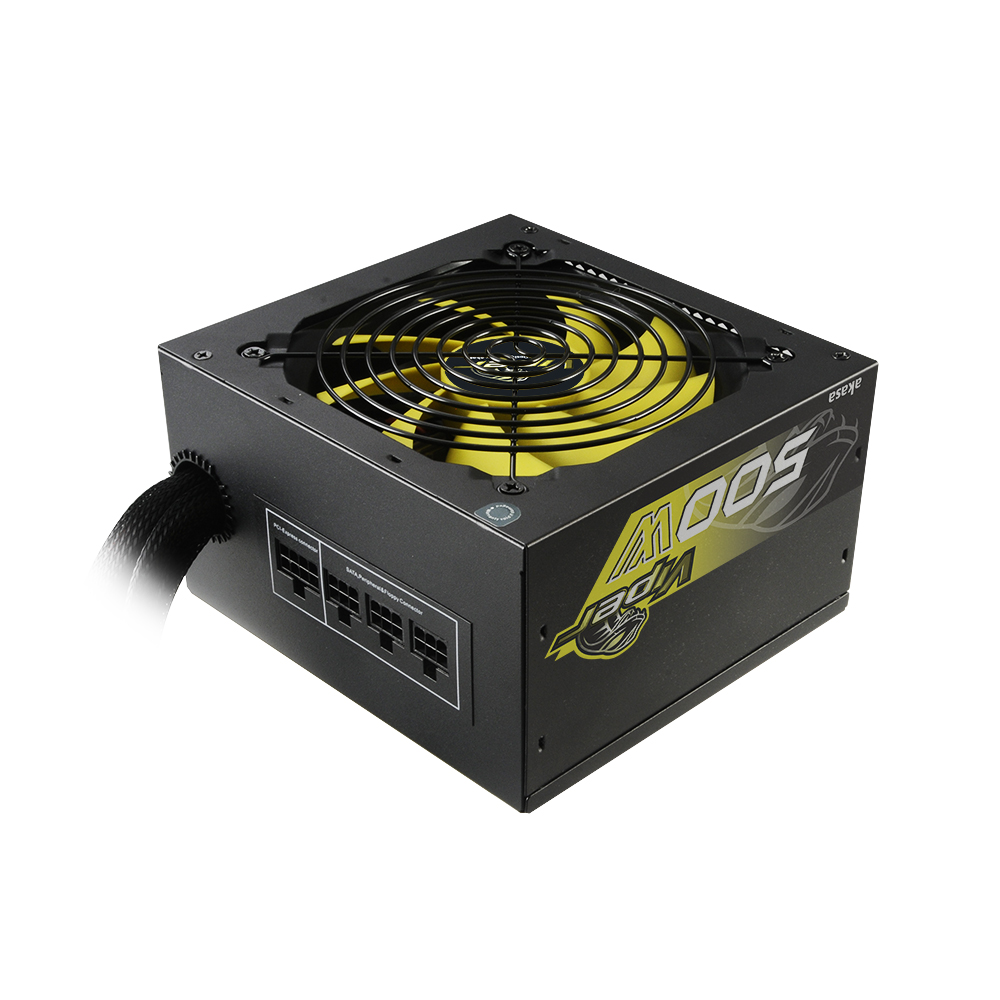

Viper Power
500W 80plus Bronze modular PSU
Modular cable management enhances airflow. Dynamic single 12V rail for power hungry hardware. Energy saving active PFC.
Product Code: AK-PA050AF07M
Viper Power
500W 80plus Bronze modular PSU
Modular cable management enhances airflow. Dynamic single 12V rail for power hungry hardware. Energy saving active PFC.
Modular cable management
|
| Application | 500W PC Power Supply |
|---|---|
| Designed for | AMD / INTEL based systems ATI-AMD / NVIDIA graphics |
| Form factor | ATX 12V 2.3 |
| Dimensions | 150 x 140 x 86 mm( W x L x H ) |
| Typical efficiency | Over 85% |
| Power Factor Correction | Active PFC |
| Fan | 120 x 120 x 25 mm, thermal control |
| Motherboard connector | 1 (20+4pin ) |
| ATX12V connectors | 1 (4+4pin) |
| PCIe 6+2pin connectors | 2 |
| SATA connectors | 7 |
| Molex 4pin connectors | 1 |
| MOLEX 4-Pin to FDD adapter cable | 1 |
| AC power input | 115~240V AC |
| Protection | Over Power / Voltage / Current Protection |
| Product code | AK-PA050AF07M |
