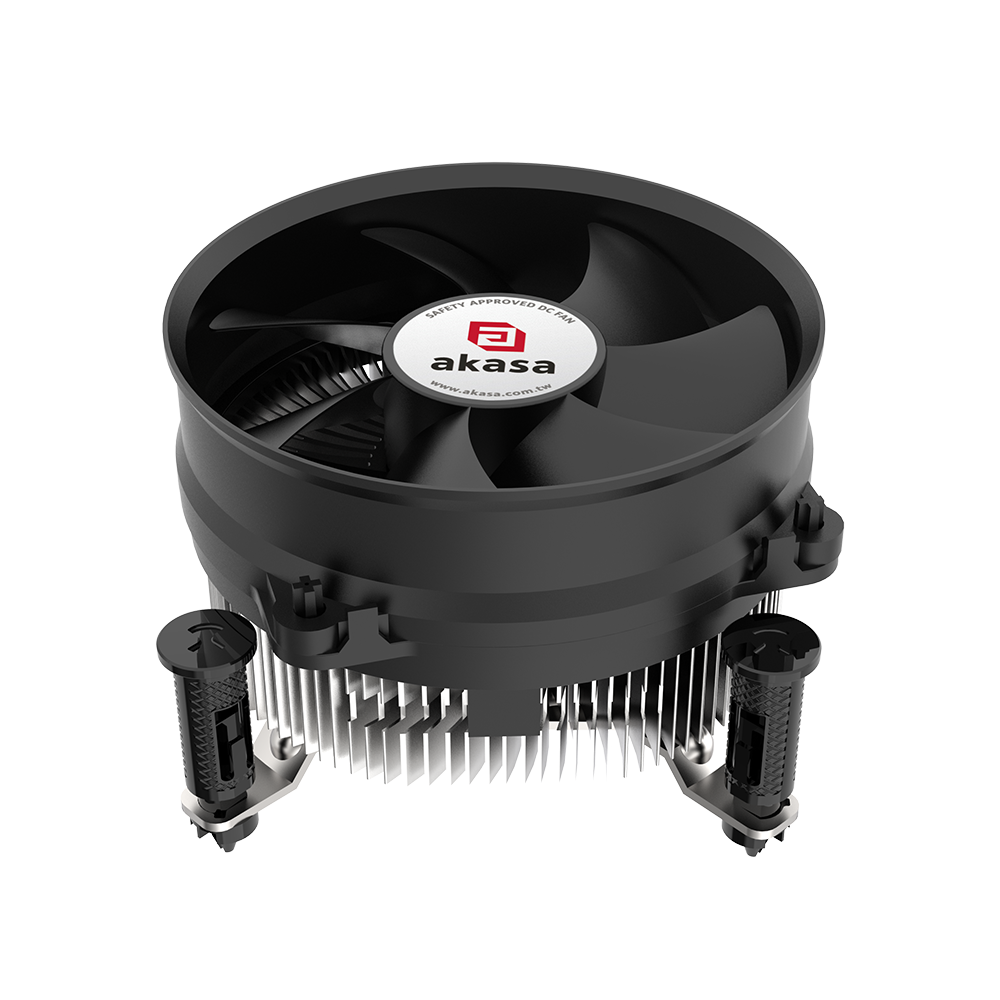

Low-Noise Intel LGA1851 Cooler
CPU Cooler (59.2mm), 92mm Fan, Push-Pins, TDP 115W, Intel
Copper core Intel® CPU cooler with 92mm low-noise PWM fan and bi-ped fin aluminum heatsink for LGA1851 and LGA1700 sockets. Designed for efficient cooling of up to 115W TDP. Features tool-free push pin mounting for easy installation and reliable retention. Perfect for small form factor (SFF) builds.
• Optimised and intelligent design
• Compatible with Intel® LGA1851 and LGA1700 sockets
• Low-noise and efficient cooling
• Easy & tool-free installation
• Versatile motherboard compatibility
• Pre-applied thermal paste

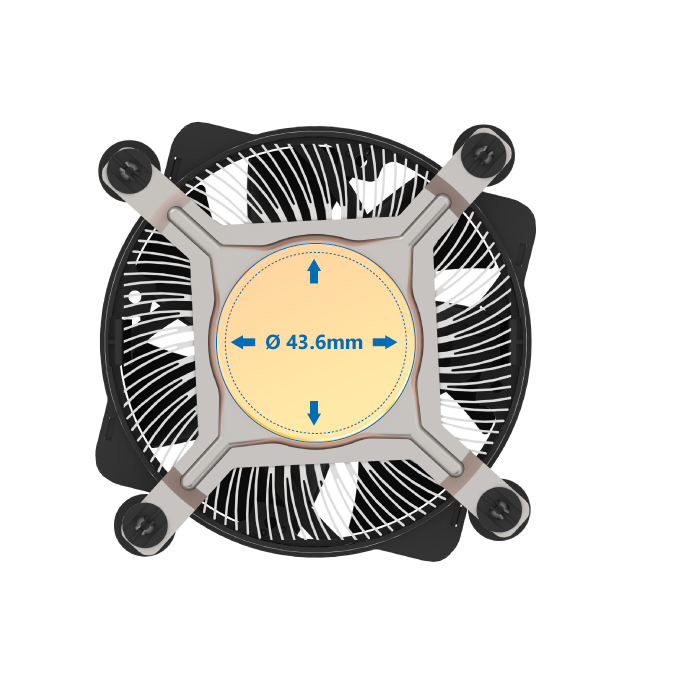

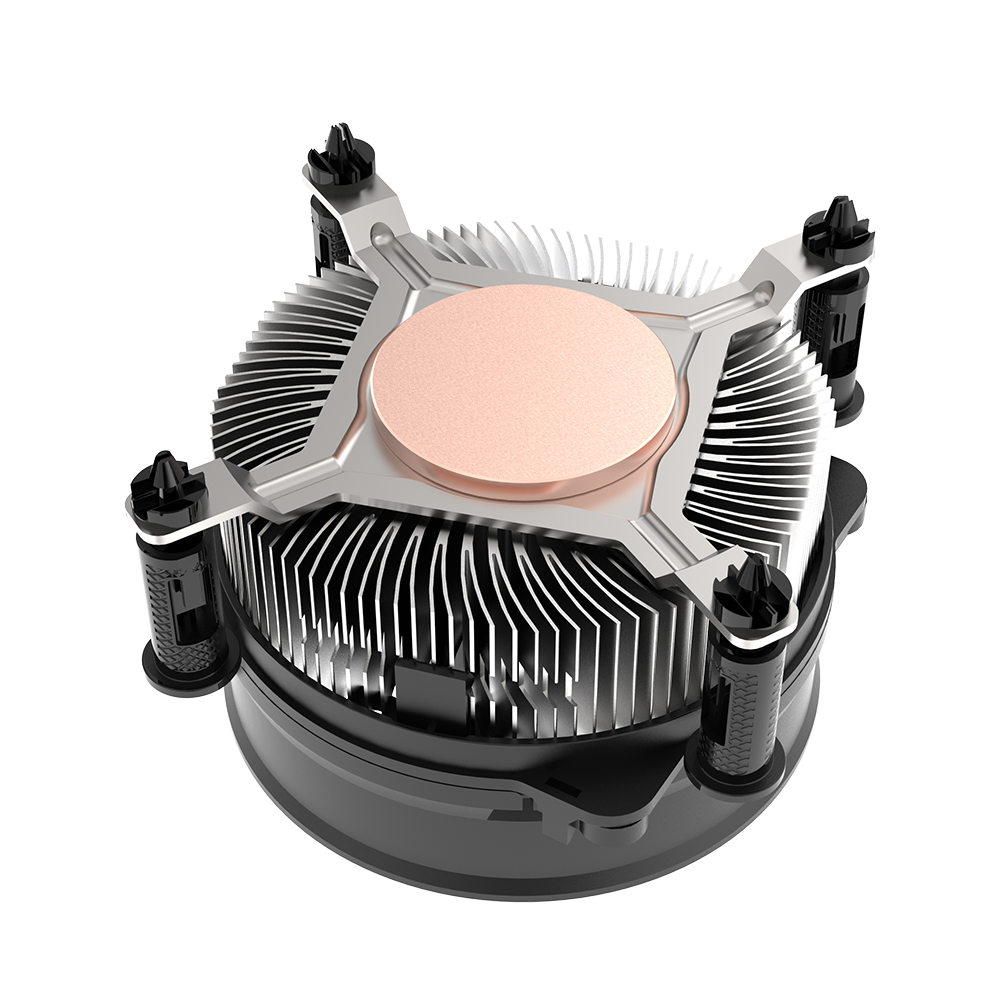

High-engineered aluminium heatsink features bi-ped fins and a large copper core base, ensuring maximum heat dissipation and thermal transfer. Designed to work with CPUs up to 115W TDP.
Compatible with Intel® LGA1851 and LGA1700 sockets.

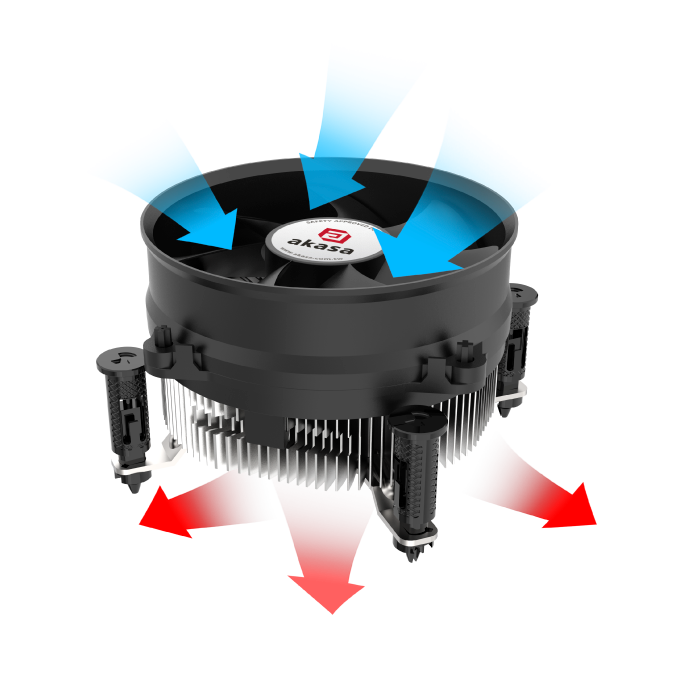

The 92mm PWM fan delivers efficient cooling with minimal noise, automatically adjusting its speed based on workload for a quiet and effective cooling solution. Featuring an enter bearing (EBR), the fan offers improved durability and a longer lifespan, ensuring reliable cooling performance over time.
The push-pin mounting design offers a quick, secure, and hassle-free installation with no tools required. Simply align the cooler and push the pins down to secure them into place.
With a compact 59.2mm height and a small footprint, this cooler offers wide motherboard compatibility (ATX, Micro-ATX, Mini-ITX and Thin Mini-ITX), making it ideal for workstation desktops, home PCs and small form factor (SFF) systems.

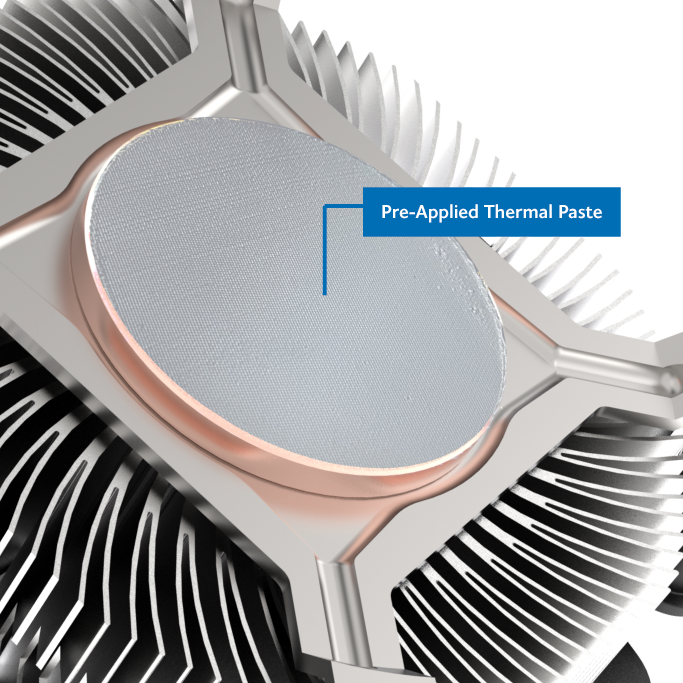

Pre-applied high-performance thermal interface material (TIM) ensures optimal heat transfer right out of the box, eliminating the need for manual application and reducing installation time.
| Socket Type | Intel LGA1851, 1700 |
|---|---|
| Suggestion TDP (W) | 115 |
| Cooler Dimension | 95 x 95 x 59.2 mm |
| Heatsink Material | Aluminium fins with copper core |
| Installation | Push pins |
| Weight | 351g |
| Product Code | AK-CC6605EP01 |
| Fan Dimension | ∅95 x 25 mm |
|---|---|
| Bearing | EBR Bearing |
| Fan Speed | 600 - 3000 RPM |
| Max Airflow | 53.62 CFM |
| Max Air Pressure | 4.87 mm-H2O |
| Noise Level | 11.7 - 36.6 dB(A) |
| Current Rating for Fan | 0.26A |
| Voltage Rating for Fan | DC 12V |
| Fan Connector | 4-pin PWM |
| Fan Life Expectancy | 40,000 hours |
| Warranty | 2 years |
