Plato MC
Slim fanless case for 5th Generation Intel® NUC boards

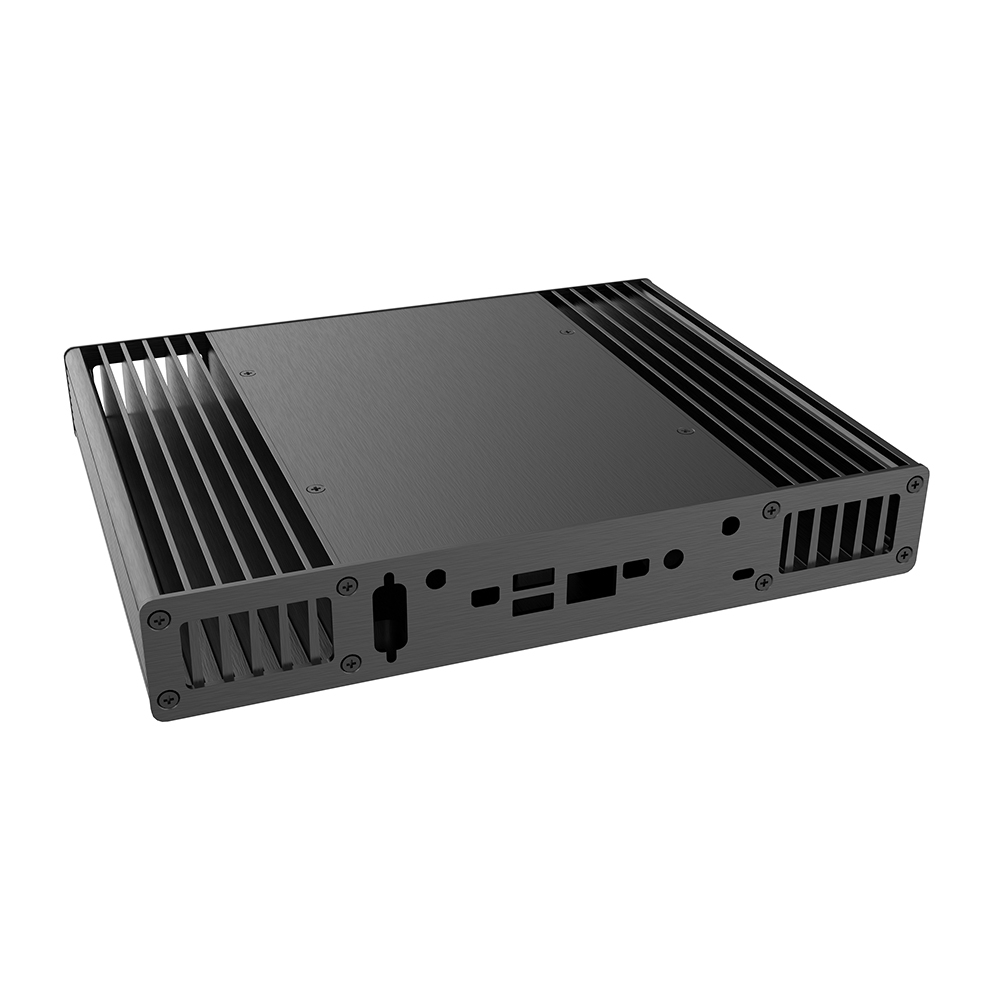

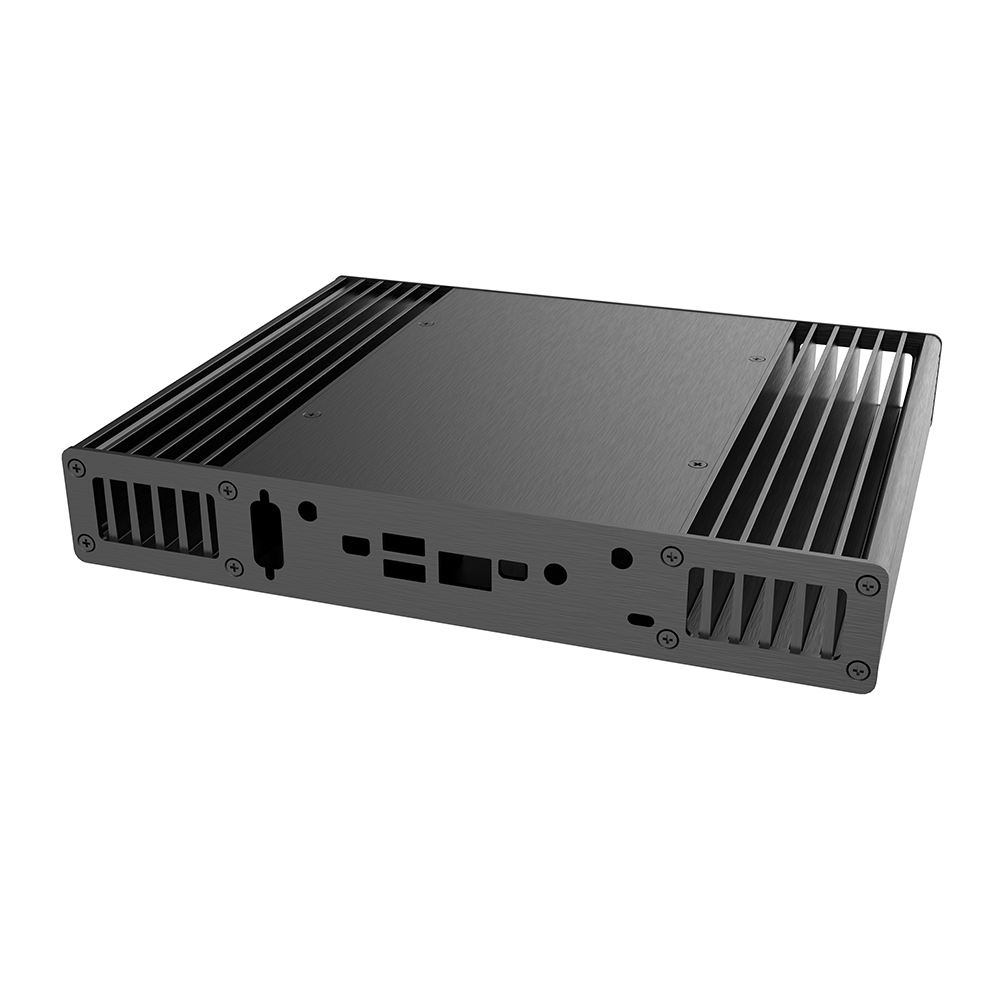

Low profile fanless case for 5th Generation Intel® NUC boards, suitable for VESA mount monitors saves valuable desk space. Accommodates 2.5" SATA HDD/SSD. Provide one rear serial port. Compatible with Intel NUC5i5MYBE / NUC5i5MYHE / NUC5i3MYBE / NUC5i3MYHE.
|
support 2.5” SATA HDD / SSD
• Aluminium fanless CPU cooling design
• Stylish front panel diamond effect • Support one serial port • Compatible with the following Intel® NUC Board NUC5i5MYBE / NUC5i5MYHE / NUC5i3MYBE / NUC5i3MYHE Stylish front panel
diamond edge finish Two front panel
USB 3.0 ports Totally silent
fanless CPU cooling design
CPU
aluminium heatsink for
heat transfer all aluminium body for
quick heat dissipation |
| Material | Aluminium |
|---|---|
| Motherboards types | UCFF 4" X 4" |
| Motherboard support | Intel® NUC Board NUC5i5MYBE / NUC5i5MYHE / NUC5i3MYBE / NUC5i3MYHE |
| Dimensions | 247 x 200 x 38.5mm (W x D x H) |
| Drive bays | 2.5" SSD/HDD (up to 9.5mm high) |
| Front I/O | Power button, power and HDD led, USB 3.0 port x 2, HD Audio in / out |
| Antenna fitting holes | 2 |
| Serial port | 1 |
| Security | Kensington lock |
| VESA mounting | Support |
| Optional Power Adaptor | AK-PD065-01M |
| Product code | A-NUC16-A1B A-NUC16-M1B |
