Pascal MX
IP65 Fanless Case for Industrial (Thin) Mini-ITX Boards
Waterproof, dust-tight aluminium case for Intel® socket-based (Thin) Mini-ITX motherboards, supporting Intel® Core™ (Ultra) processors up to 65W TDP. Features screw-thread locking cables and 220W internal DC-DC power adapter. Suitable for harsh industrial or outdoor use.

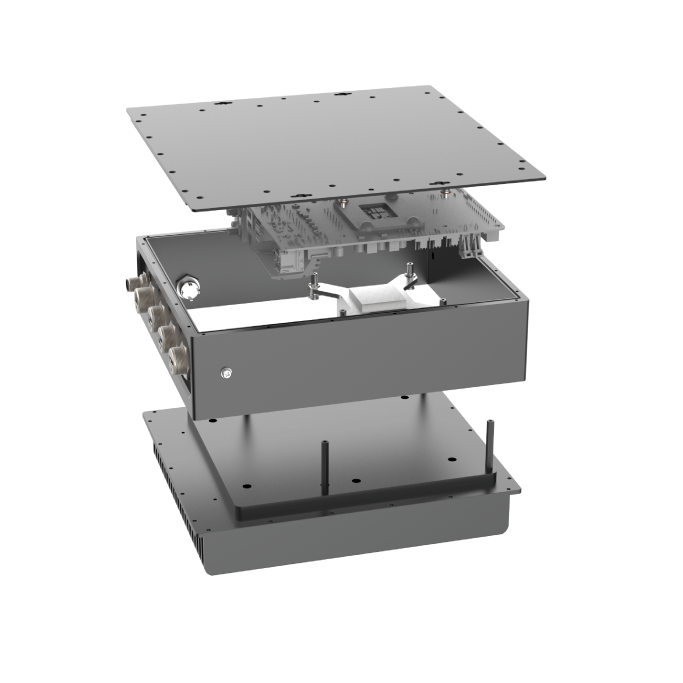

Patented spring mounting system ensures support across a diverse range of Mini-ITX and Thin Mini-ITX form factor boards across pro-business, industrial and long-life applications.
List of supported motherboard models can be found in the specification.
Supports Intel® Core™ (10th-14th Gen) & Core™ Ultra (15th Gen) processors up to 65W TDP.
Compatible with Intel® LGA1851 / LGA1700 / LGA1200 sockets.

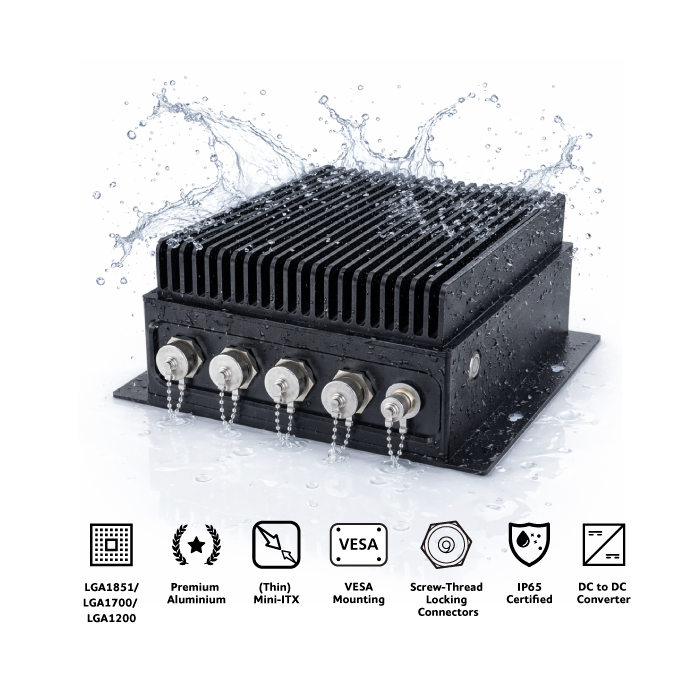

IP65-rated fanless case delivers dust-tight and water jet resistance for demanding outdoor and industrial deployments. Passive cooling with zero moving parts keeps systems protected and cool in extreme environments, from marine vessels to factory floors.

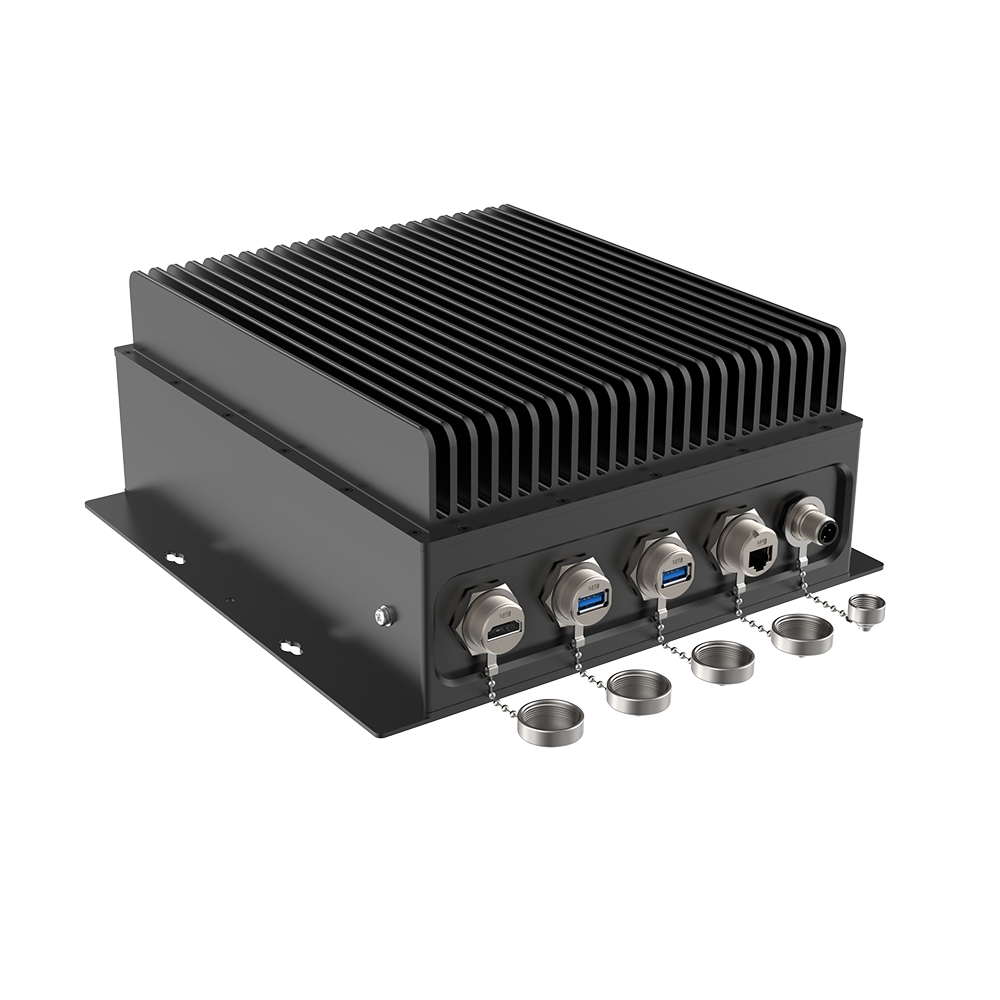

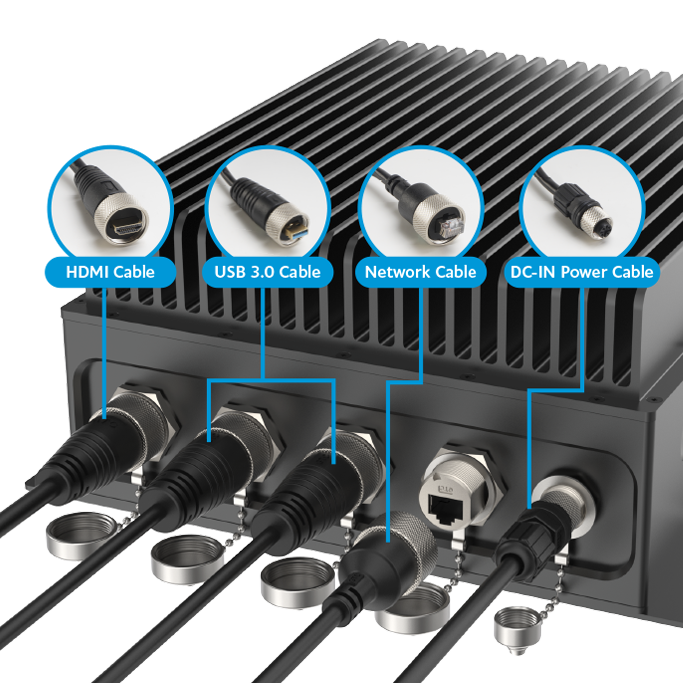

Includes HDMI, dual USB 3.0 Type-A, Ethernet (RJ45 LAN) and power cables with secure screw-thread locking connectors for protection against water and dust.
Cable length: 2m

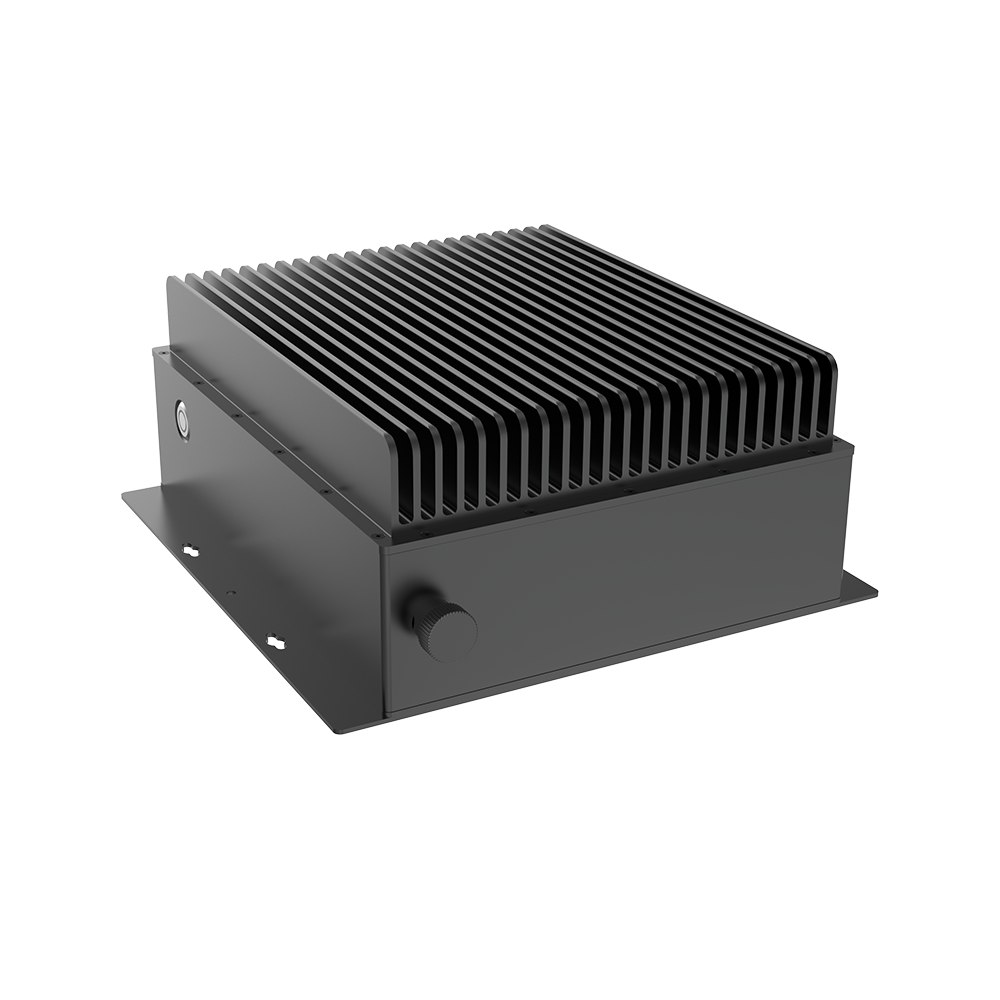

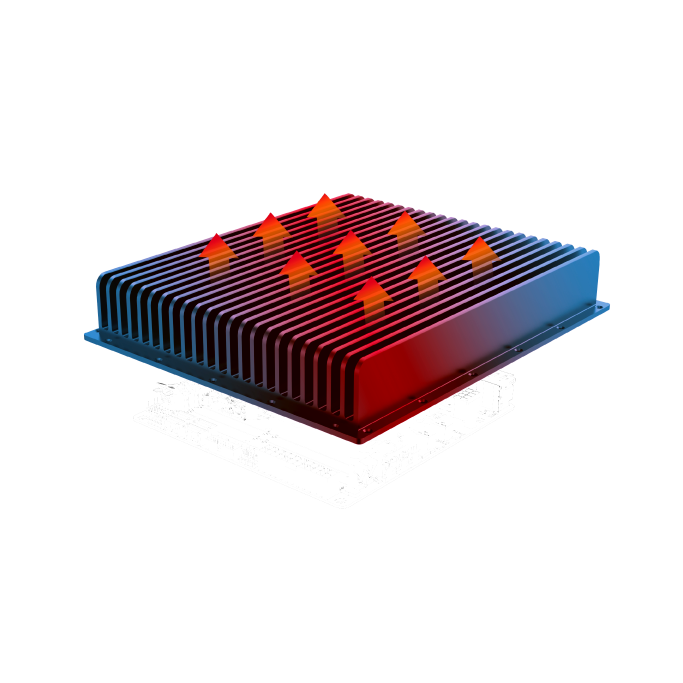

Fanless aluminium design efficiently dissipates heat from the CPU and M.2 SSD through the chassis fins, while eliminating noise and mechanical failure points, ensuring stable, long-term performance.

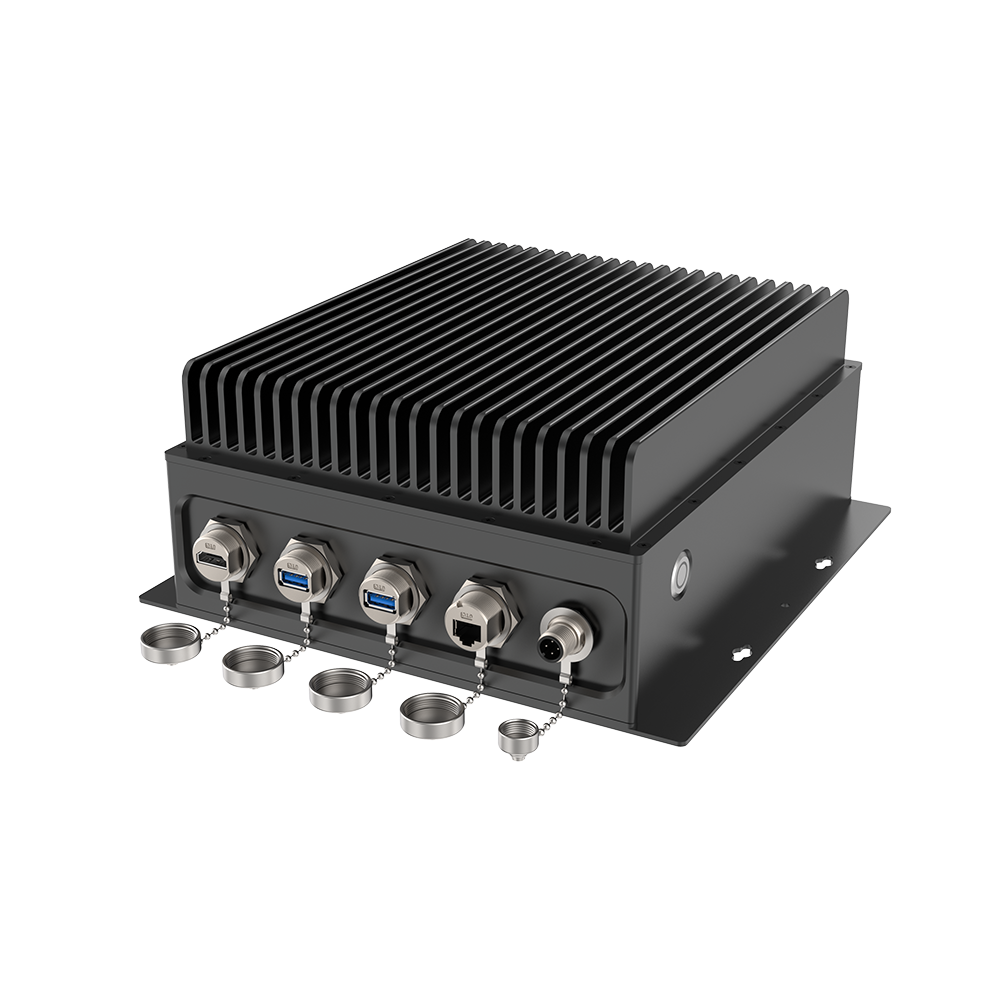

Features HDMI, dual USB 3.0 Type-A, RJ45 LAN and DC power ports for essential connectivity in fanless industrial systems.

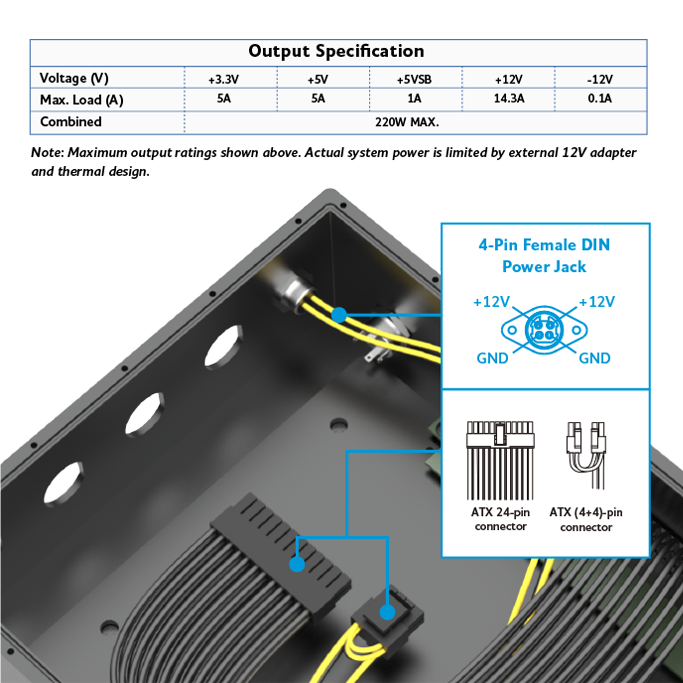

Equipped with an internal 220 W DC-to-DC converter rated for high operating temperatures (-25-70°C) and featuring 4-pin DIN power input.
Includes 24-pin and 4+4-pin ATX power connector cables for seamless integration with standard motherboard ATX power.

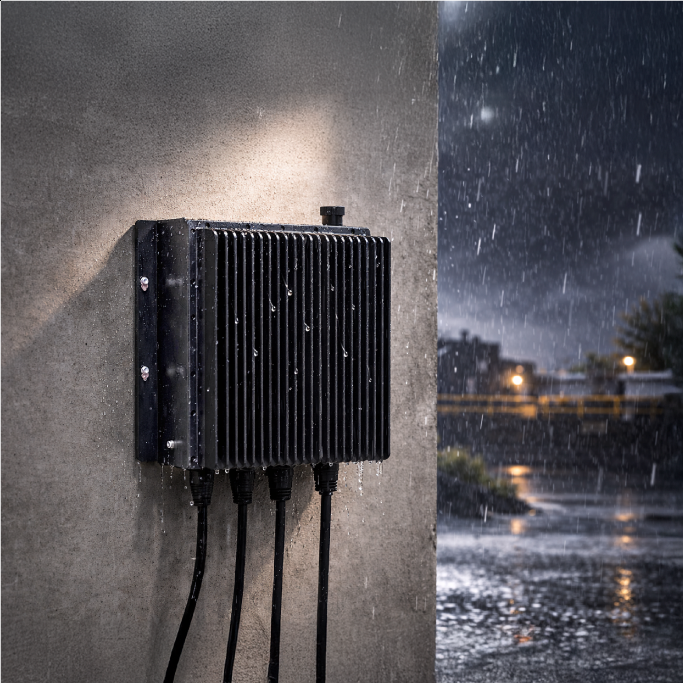

Supports wall mounting with included mounting brackets, enabling secure installation and a clutter-free environment.
Suitable for a wide range of outdoor and demanding applications, including navigation systems, multimedia platforms, digital signage, industrial automation, vehicle-mounted systems, and medical equipment.
Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.
Contact Us >
| Material | Aluminium with anodised black |
|---|---|
| Panel Material | Aluminium |
| Motherboard Type | Mini-ITX, Thin Mini-ITX |
| Socket Support | Intel® LGA1851, LGA1700, LGA1200 |
| Thermal Module | Aluminium CPU thermal module Aluminium M.2 2280 SSD thermal module |
| Maximum TDP Support | 65W |
| Dimensions | 255.6 x 255.6 x 110.5mm (W x D x H) |
| Volume | 6.1L |
| Weight | 5.48 kg |
| Drive Bays | Only suitable with M.2 SSDs |

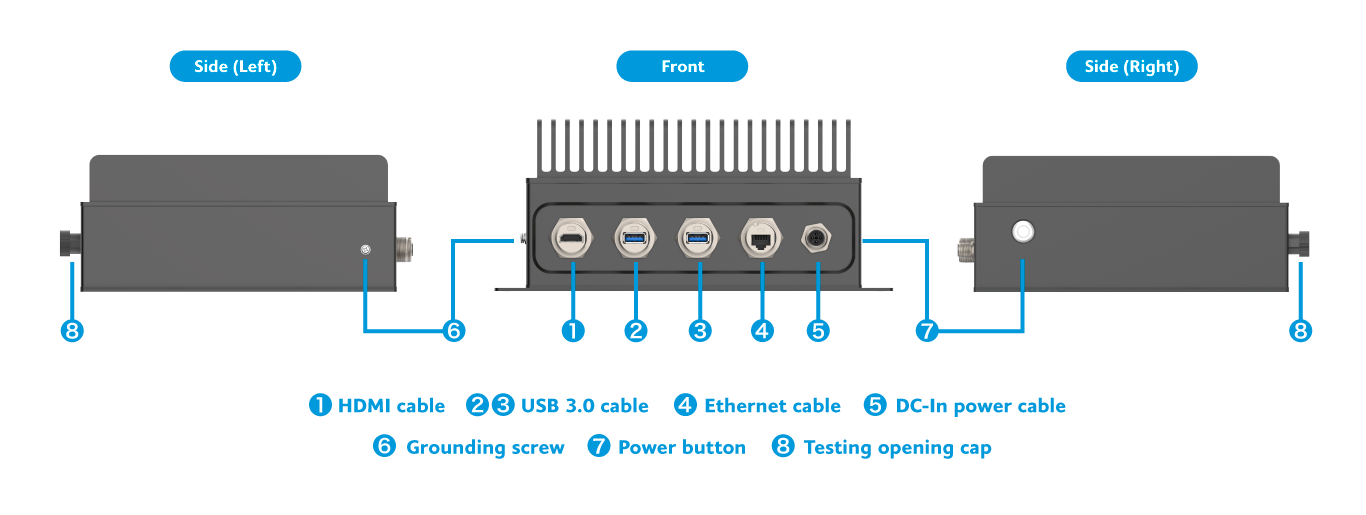

| Front I/O Interfaces | HDMI x1, USB 3.0 (5 Gbps) Type-A x2, LAN x1, DC-In x1 |
| Side I/O Interfaces | Power button, grounding screw |

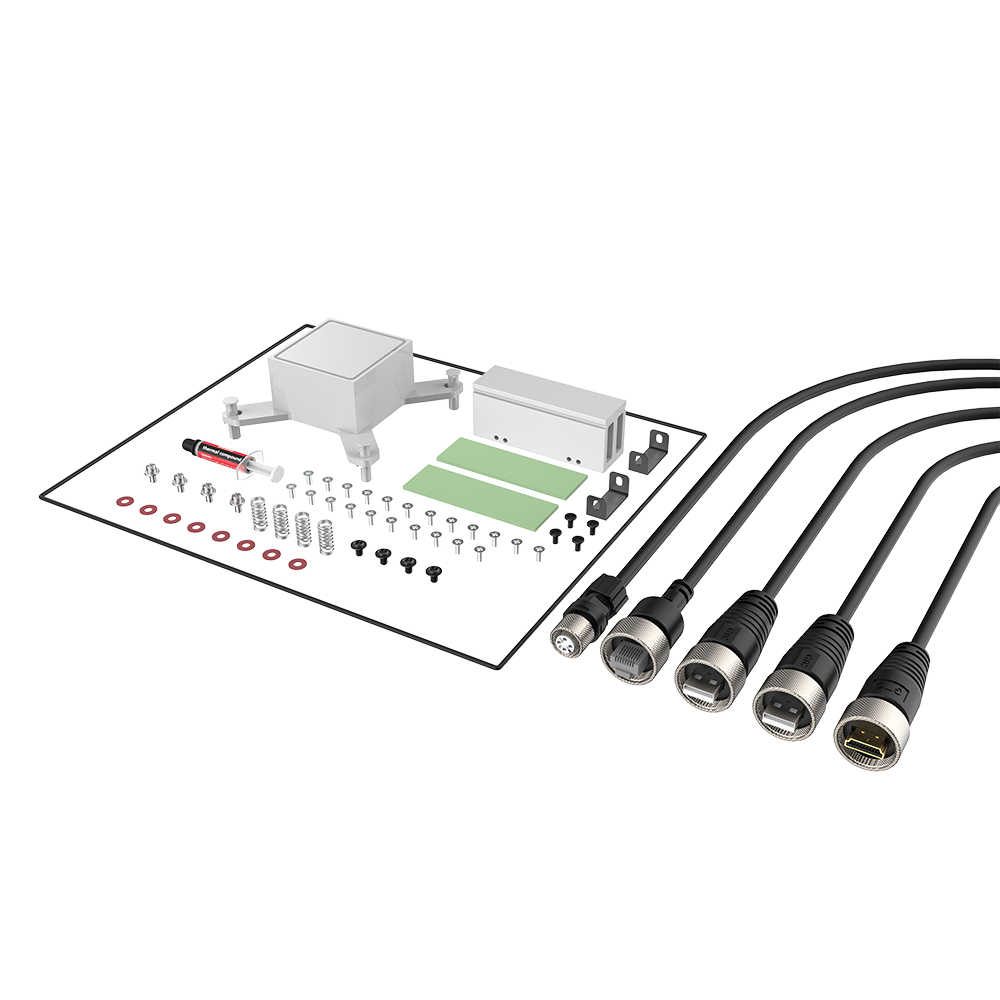

| Included Cable(s) | Internal (with metal cap): Internal HDMI cable (length: 20cm) Internal USB 3.0 (5 Gbps) Type-A cable (length: 20cm) Internal LAN (RJ45) cable (length: 20cm) Internal power cable (length: 35cm) Internal power button cable (length: 35cm) External: External HDMI cable (length: 2m) External USB 3.0 (5 Gbps) Type-A cable (length: 2m) External LAN (RJ45) cable (length: 2m) External power cable (length: 2m) |
| Cable Length | Internal: 20-35cm External: 2m |
| Rear I/O Interfaces | Testing opening cap |
| Wall Mounting | Supported |
| Ingress Protection (IP) Rating | IP65 |
| Internal DC to DC Converter | Included (see specification below) |
| Optional External Power Adapter | AC 150W, 12V (Product Code: AK-PD150-02K) |
| Product Code | A-ITX64-S1B |
| Output Power | 220W |
|---|---|
| Output Voltage | +3.3V, +5V, +5V standby, +12V, -12V |
| Input Voltage | 12V DC-in |
| Input Connector | 4-pin DIN power |
| Operating Temperature | -25°C to 70°C |
| Included Cable(s) | 24-pin ATX power connector cable 4+4-pin ATX power connector cable |
| Protection | Over Voltage Protection Over Power Protection |
