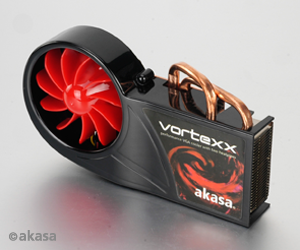

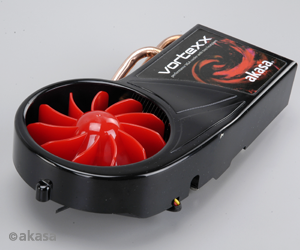

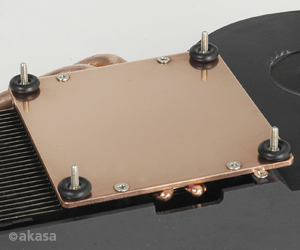

Vortexx provides good thermal performance with much improved acoustic levels. Two copper heatpipes connect the 60x60mm square copper base to the bonded fin heatsink. This cooler is designed to optimize mid-range NVIDIA and ATI VGA cards.

The cooler is SLI and CrossFire compatible. It is a perfect replacement for ATI & nVidia stock coolers delivering ultra quiet operation. A new Akasa design 70mm lo-noise fan efficiently cools the GPU and board components including the voltage regulators. It is crucial to keep VRM’s cool in order to stabilize graphic performance.

Vortexx has an acoustic performance at 2300 RPM of 0.475 Sone, incredibly silent, whilst delivering a cooling performance of 0.40ºC/W, most stock VGA coolers can only approach that thermal level at 5000 RPM fan speed producing much more noise.

ATI & NVIDIA compatible

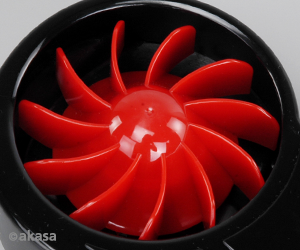

Low noise fan

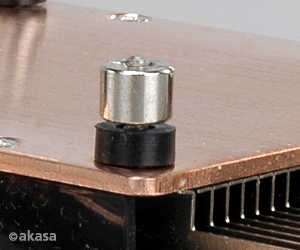

Easy tool-free installation

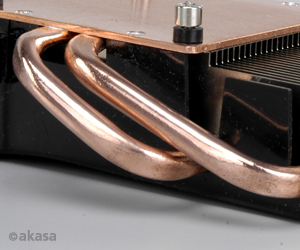

2 copper heatpipes

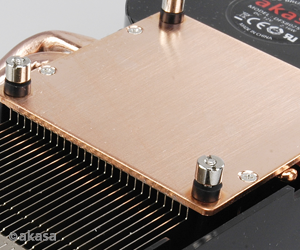

Copper base
Cools GPU and VRM’s

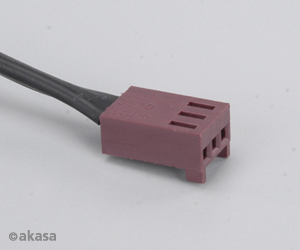

Standard 3 pin Motherboard connector
SLI & CrossFire ready
8 VGA ramsinks included


Application Peformance graphics card cooler
Design for NVIDIA and ATI VGA cards
Cooler Dimensions 171 x 91 x 33mm

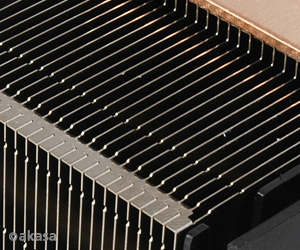

Heatsink material Aluminium fins, copper base and heatpipes
Weight 266g
Fan dimensions ∅80 x 25 mm
Fan speed 2300 RPM
Noise level 0.475 Sone
Rated current 0.24A
Voltage rating 12V DC
Bearing type Sleeve
Fan life expectancy 30,000 hours
Fan connector 3pin
Product code AK-VC02-RD
