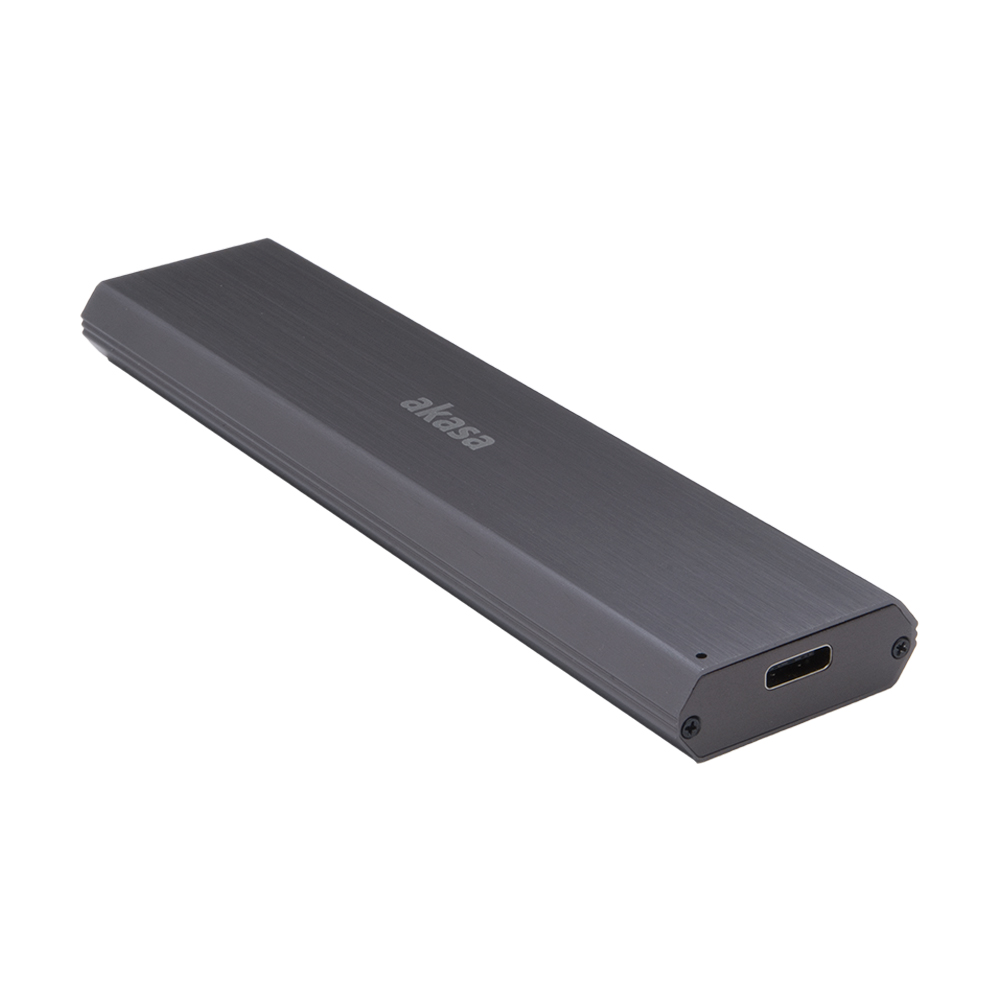

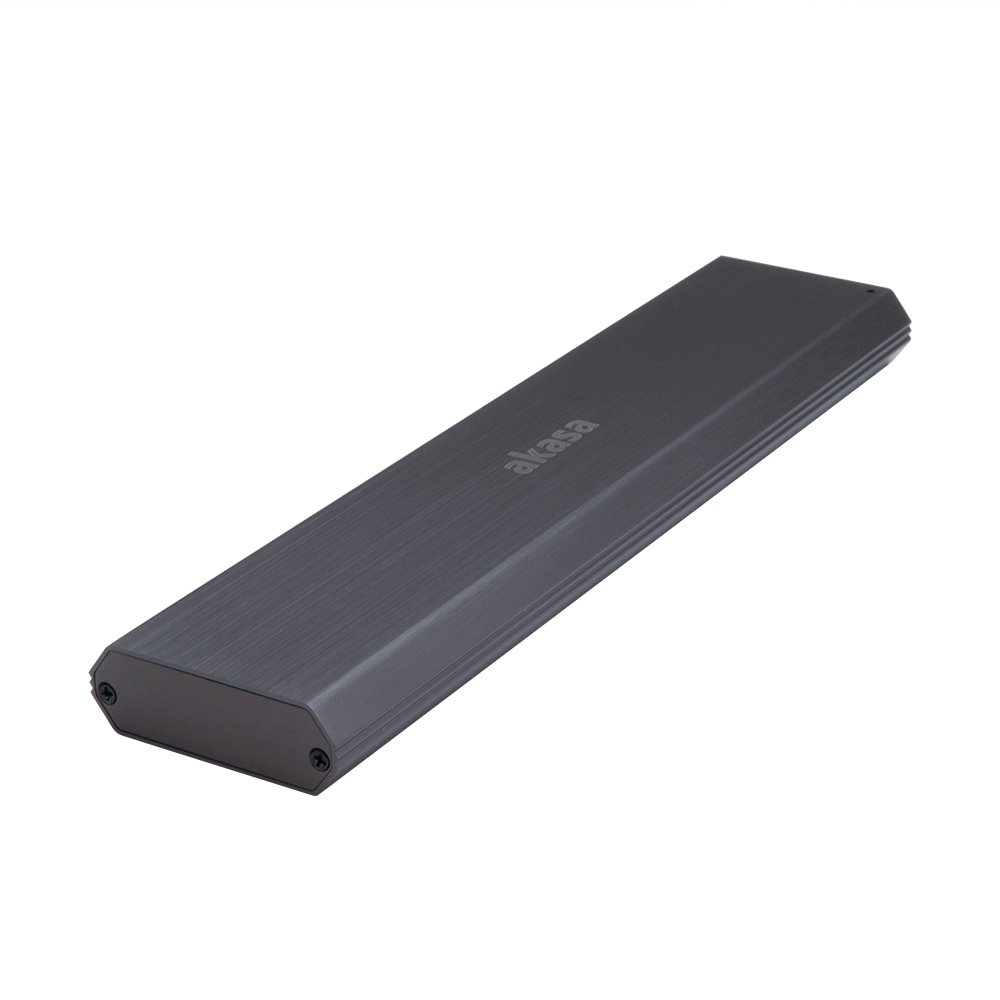

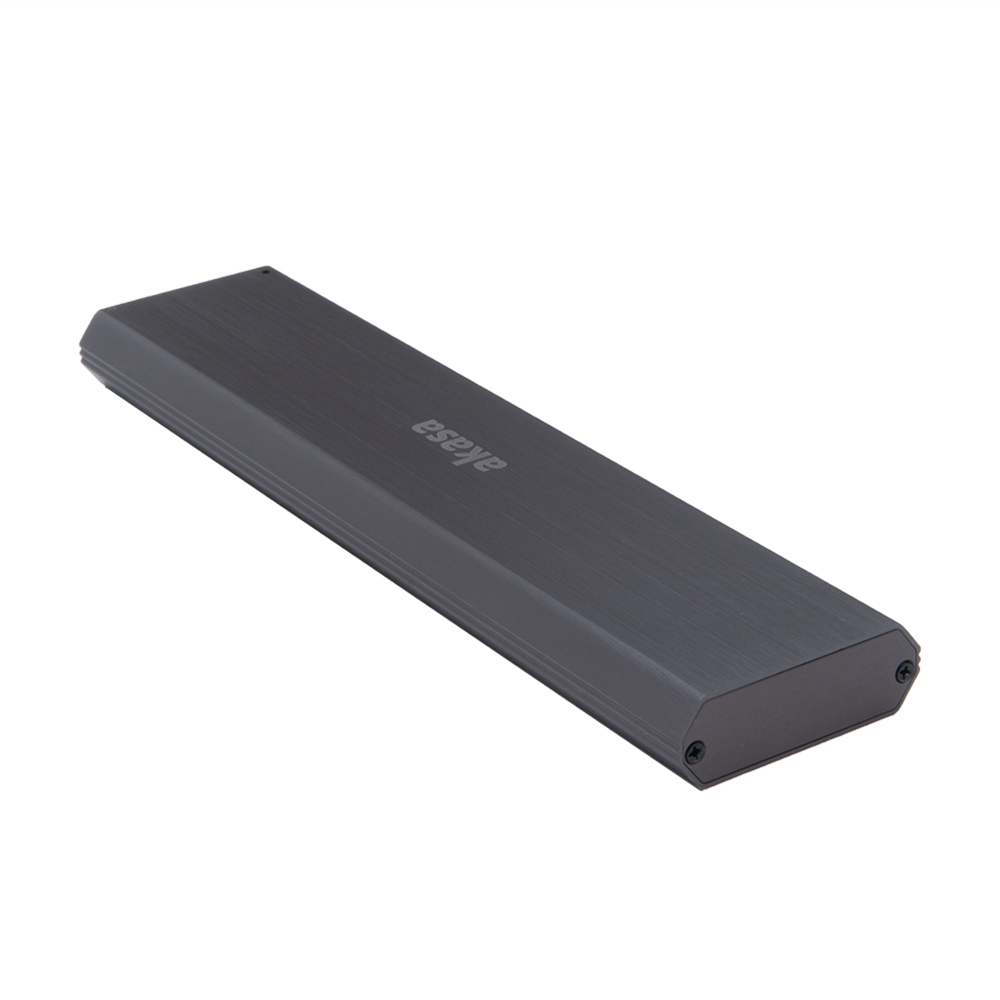

USB 3.1 Gen2 ultra slim
aluminium enclosure
for M.2 PCIe NVMe SSD

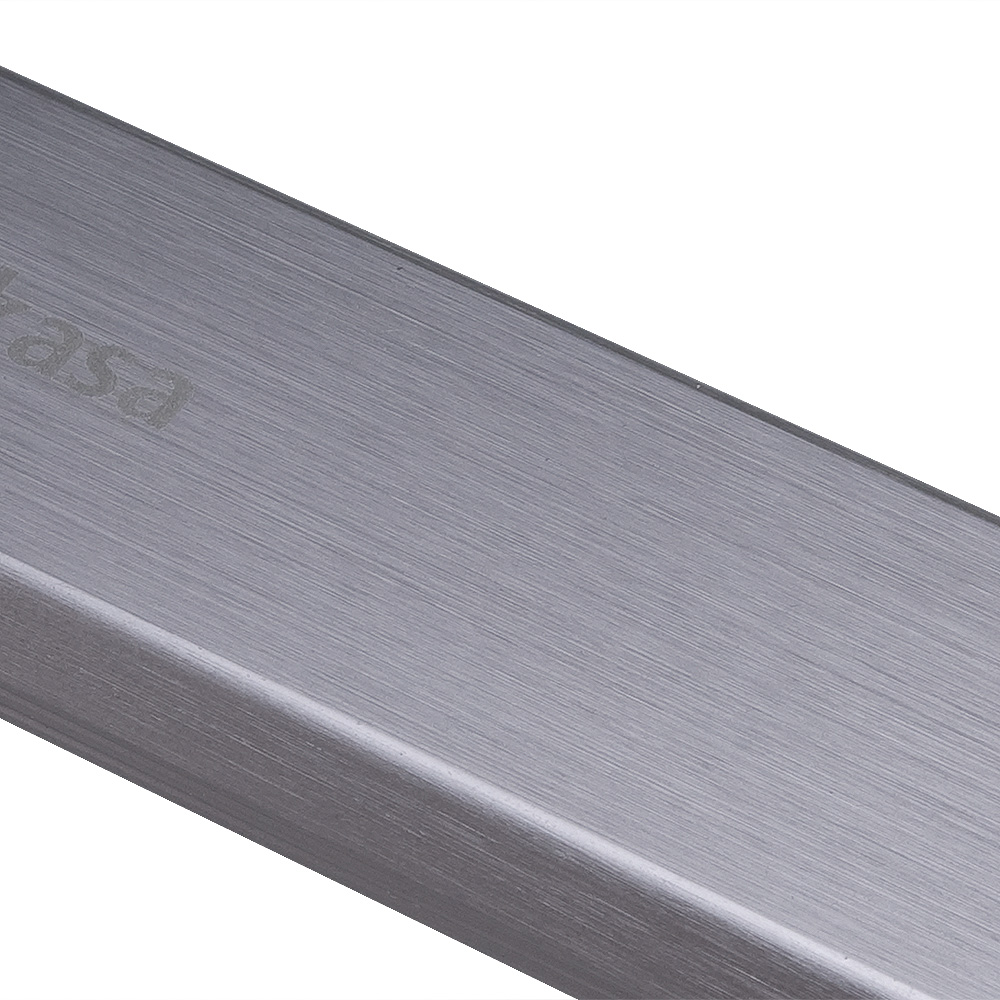

• Premium aluminium alloy with brushed finish
• Ultra slim, portable design
• SuperSpeed plus USB 3.1 Gen 2 connection
• Includes 2 thermal pads for added heat dissipation
• Easy assembly
• Backwards compatible with USB 3.1 Gen 1 / USB 3.0 and USB 2.0
Fast data transfer
Leverage the fast speeds
of up to 10 Gbps on the latest
USB Type-C enabled laptops
Compatible with 42mm, 60mm & 80mm
(2242, 2260 & 2280)
supports M.2 PCIe SSD
Note: This enclosure is not compatible with M.2 SATA SSDs.


Application USB 3.1 Gen 2 aluminium enclosure for M.2 PCIe NVMe SSD
Operating system support Windows 7/8.X/10/11 Mac OS X 10.3 and higher
External interface USB 3.1 Gen 2 Type-C
Internal interface M.2 PCIe Gen 3 M key
Compatibility M.2 PCIe Gen 3, Gen 2, Gen 1 x2/x4 NVMe SSD
2280, 2260, 2242 size SSD
Transfer rate 10 Gb/s (USB 3.1 Gen 2), 5Gb/s (USB 3.1 Gen 1), 480Mb/s (USB 2.0)
Protocol USB attached SCSI protocol (UASP) specification compliant
Dimensions 125 x 32 x 10.8 mm
Contents M.2 PCIe SSD enclosure, Type-C to Type-C cable, screwdriver, screws, carrying pouch, thermal pads (x 2), user manual
Chipset ASM2362 USB 3.1 Gen 2 to PCIe Gen 3 x2 NVMe device bridge
Product code AK-ENU3M2-03

Installation manual


- 2019-06-10

Please first double check that your M.2 SSD is PCIe (NVMe), as this product only supports PCIe (NVMe) based M.2 modules with key M or key B+M.

It does not support SATA SSD, even if it is M+B Key.

Do also check that the drive is initialised and formatted if it is new.
