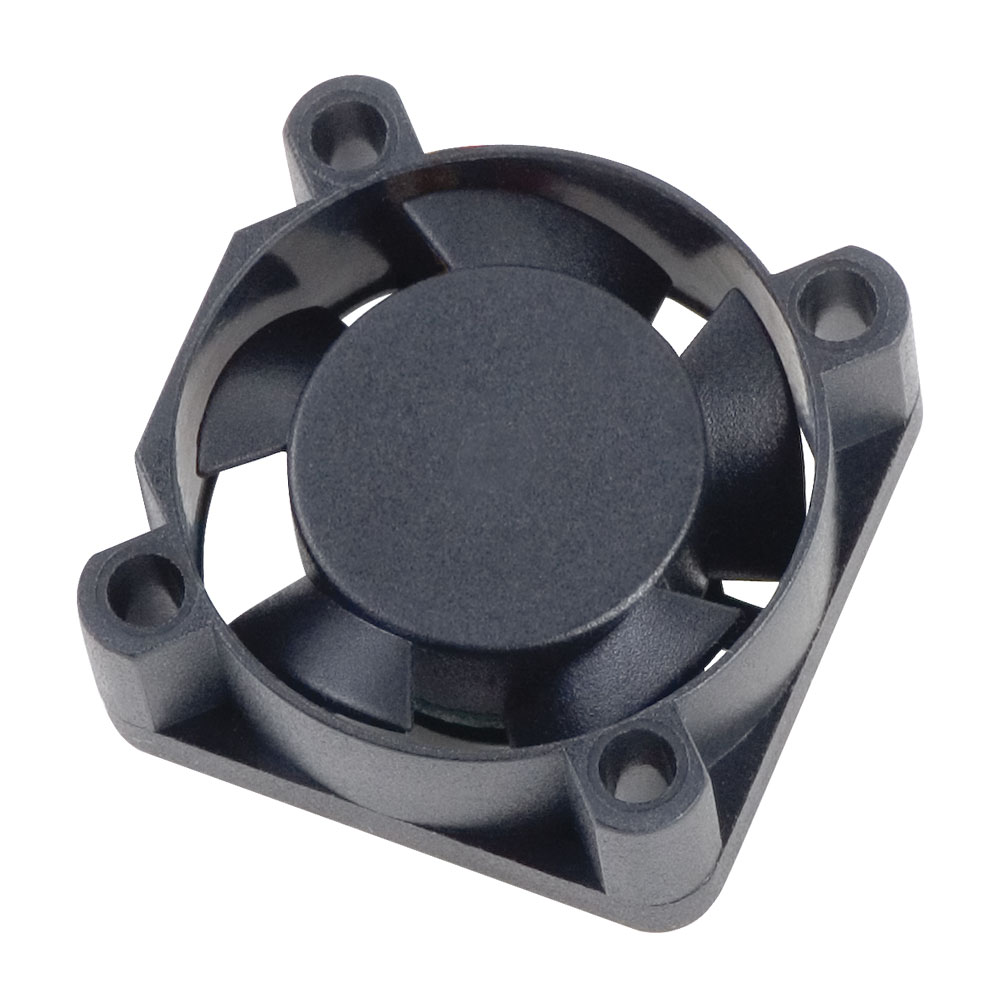

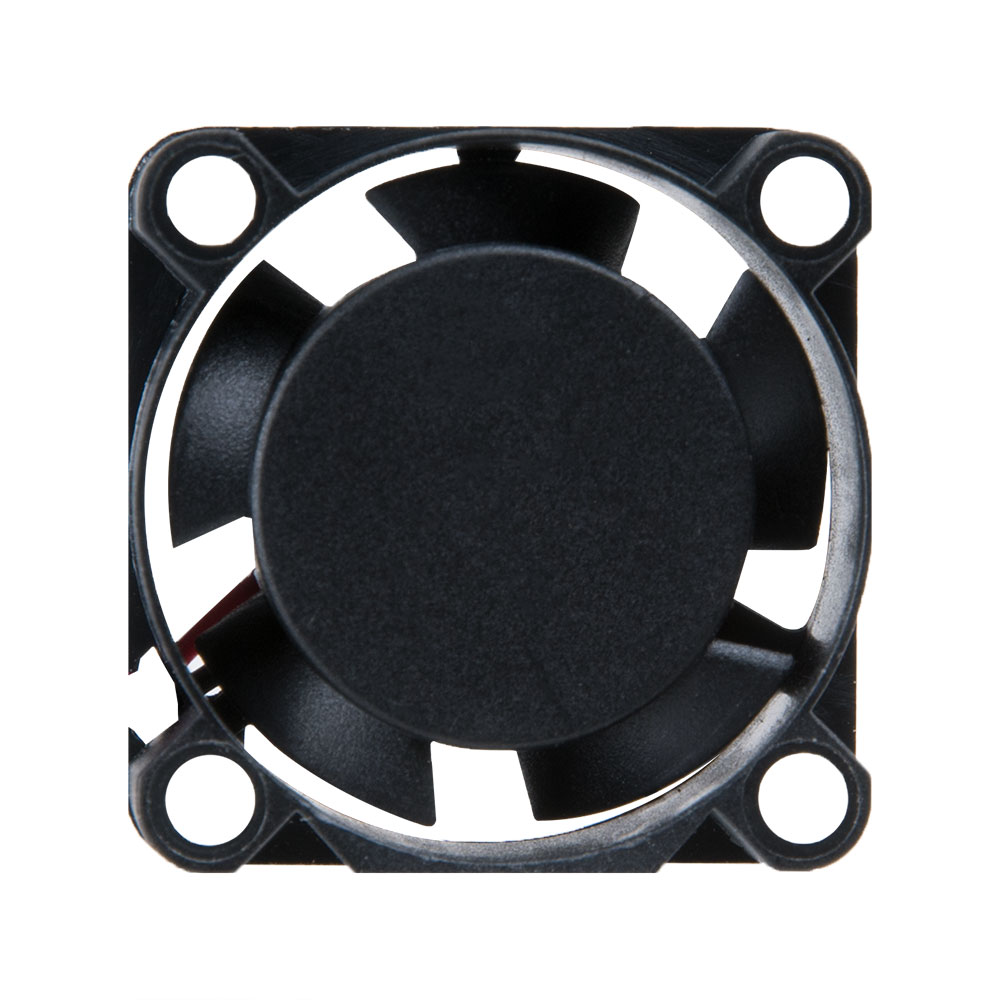

Black Fan 25mm
25mm fan, 10mm thickness, 2-pin with two ball bearings for long life usage
Mini DC axial fan with 2 pin connector for 2.54mm PCB header long life twin ball bearings are used.
Product Code: AK-189BK-2B
Black Fan 25mm
25mm fan, 10mm thickness, 2-pin with two ball bearings for long life usage
Mini DC axial fan with 2 pin connector for 2.54mm PCB header long life twin ball bearings are used.
Mini DC axial fan with 2 pin connector for 2.54mm PCB header long life twin ball bearings are used.
• 2-pin connector for 2.54mm PCB header
| Application | PC case or heatsink fan |
|---|---|
| Dimension | 25 x 25 x 10 mm |
| Bearing | Two Ball Bearing |
| Speed | 10000 RPM |
| Max Airflow | 2.5 CFM |
| Max Static Pressure | 5.09 mm-H2O |
| Sound Level | 24.76 dB(A) |
| Rated Voltage for Fan | DC 12V |
| Rated Current for Fan | 0.1 A |
| Fan Connector | 2-Pin |
| Fan Life | 80,000 hours |
| Warranty | 2 years |
| Package Dimensions | 77 x 92 x 28 mm |
| Product Code | AK-189BK-2B |
