Premium fanless case

Maxwell AC Pro

for Intel® NUC 13 Pro (Arena Canyon)

• Solid aluminium fanless cooling design
• Designed for the Intel® NUC 13 Pro up to Core™ i7 with long-life availability
• Stylish cover panels with diamond effect
• Perfect for home, business and commercial applications
• Lay it or hang it with optional VESA mount
• Backwards compatible with Intel® NUC 12 Pro (Wall Street Canyon)

Small but Powerful

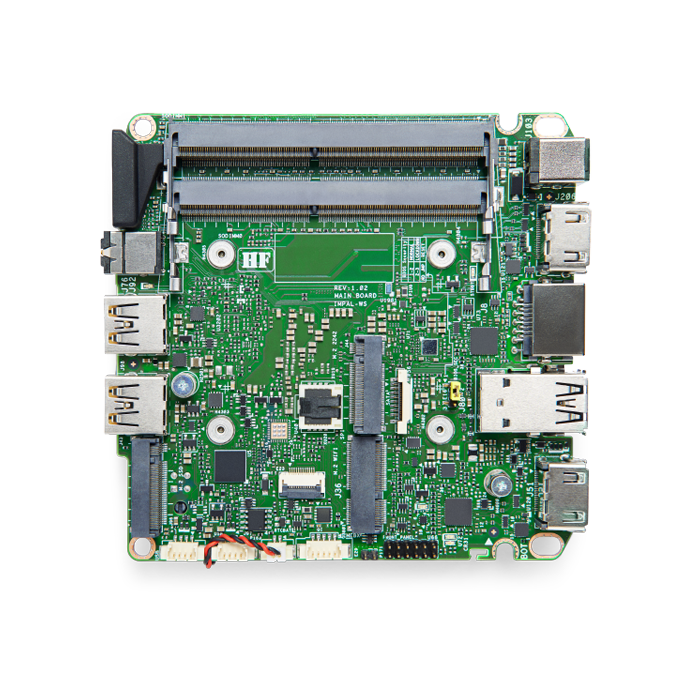

Supports Intel® NUC 13 Pro (Arena Canyon) with up to Intel® Core™ i7-1370P Processor and 4K displays or one 8K display outputs, making it ideal for digital signage applications or where multiple displays are required.

Learn more about the Intel® NUC 13 Pro (Arena Canyon) >

Advanced Performance

Bi-symmetrical extruded fins on either side of the case maximise the surface area of the exterior for increased heat dissipation. Coupled with internally hi-efficient passive thermal module and 8mm heat pipes to ensure the Thermal Design Point (TDP) is met, with the case supporting the Intel® NUC 13 Pro up to 40W TDP.

Easy Installation

Easily adjustable thermal module with two 8mm copper heat pipes to transfer the heat from the CPU. Superbly engineered for maximum efficiency and ease of use.

True Silent Experience

Fanless CPU design eliminates the need for noisy mechanical fans so that true silence can be achieved. Paired with the use of Solid State Drives, one can truly immerse themselves in the experience of soundless acoustics.

Cool Storage, Cool Performance

Internal M.2 SSD thermal kit reduces heat and enhances performance.

Supports up to Four 4K Displays

The Maxwell AC Pro case provides connector opening for dual HDMI 2.1 and dual Thunderbolt™ 4 from the Intel® NUC 13 Pro for connectivity of four 4K displays.
Perfect for an array of business applications such as security and digital signage.

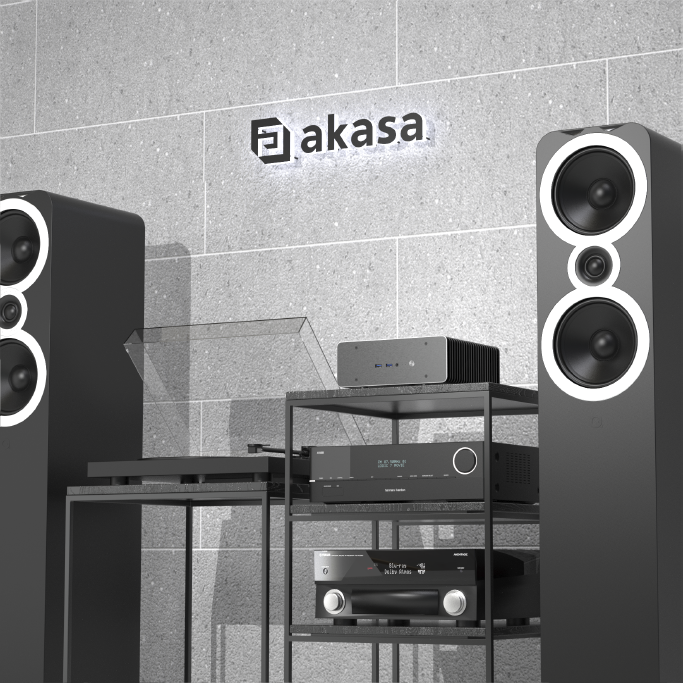

Wide Application Capabilities

ldeal for home and business applications from digital signage to home-theatre setups and more.

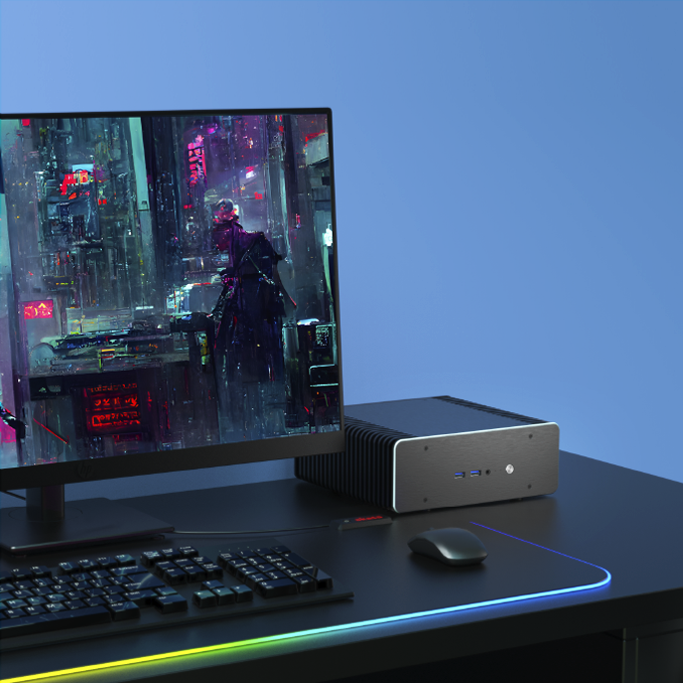

Perfect for Casual Gaming

The Maxwell AC Pro is designed for the NUC 13 Pro with Intel® 13th generation mobile processor up to Core™ i7 with integrated Intel® Iris® Xe Graphics. So play without fan noise so you can focus on your gaming experience!

Compact in Size 3.6L

Express Your Branding & Identity

Optional bespoke engraving and colouring solutions to highlight and differentiate your fanless system solution. Requires a minimum order quantity - please talk to our Team about the different options available.

Contact Us >

Full Access to Connectivity Ports

Perfect for your Build

Optional hi-quality external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR) to connect the antenna to the Wi-fi connector. Perfect additions for your fanless Intel NUC build should a wireless connection be required.

The Intel® NUC 13 Pro (Arena Canyon) is available as a Mini-PC, Kit or Board models. For Board only models, there are optional compatible external power adapters available: 120W, 19V (AK-PD120-04M) for the Core i7 and i5 models, and 90W, 19V (AK-PD090-01M) for the Core i3 model.

Material Aluminium
8mm Copper heatpipes
Motherboards Types UCFF 4" X 4"
Motherboard Support (1) Intel® NUC 13 Pro (Arena Canyon) Mini PC / Board / Kit:
NUC13L5Bi3 / NUC13ANBi3 / NUC13ANHi3 / NUC13ANKi3 / NUC13L3Hi3 / NUC13L3Ki3 / NUC13ANKi30WC
NUC13L5Bi5 / NUC13ANBv5 / NUC13L5Bv5 / NUC13ANBi5 / NUC13ANHi5 / NUC13ANKi5 / NUC13L3Hv5 / NUC13L3Kv5 / NUC13ANKi50WC
NUC13L5Bv7 / NUC13ANBi7 / NUC13ANHi7 / NUC13ANKi7 / NUC13L3Hv7 / NUC13L3Kv7 / NUC13ANKi70QC


(2) Intel® NUC 13 Pro Desk Edition (Vivid Canyon) Mini PC:
NUC13VYKi70Q / NUC13VYKi50W


(3) Intel® NUC 12 Pro (Wall Street Canyon) Mini PC / Board / Kit:
NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7
NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5
NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3
Maximum TDP Support 40W
Dimensions 218.5 x 206 x 80.3 mm (W x D x H)
Internal Bays One for 2.5” HDD/SSD (max height 9.5mm)
Antenna Fitting Holes 2
Security Kensington lock
VESA Mounting Optional kit
Front I/O Opening Power button, USB Type-A port x2, 3.5mm audio jack
Rear I/O Opening DC-In port, HDMI port x2, USB Type-A port x2, USB Type-C x2, LAN port x1
External Power Adapter (Optional) 120W, 19V for Core i7 and i5
90W, 19V for Core i3
Product Code A-NUC94-M1B

Installation manual

GB, FR, DE, PT, ES, RU, CZ, PL, JP, CN

- 2023-04-14
