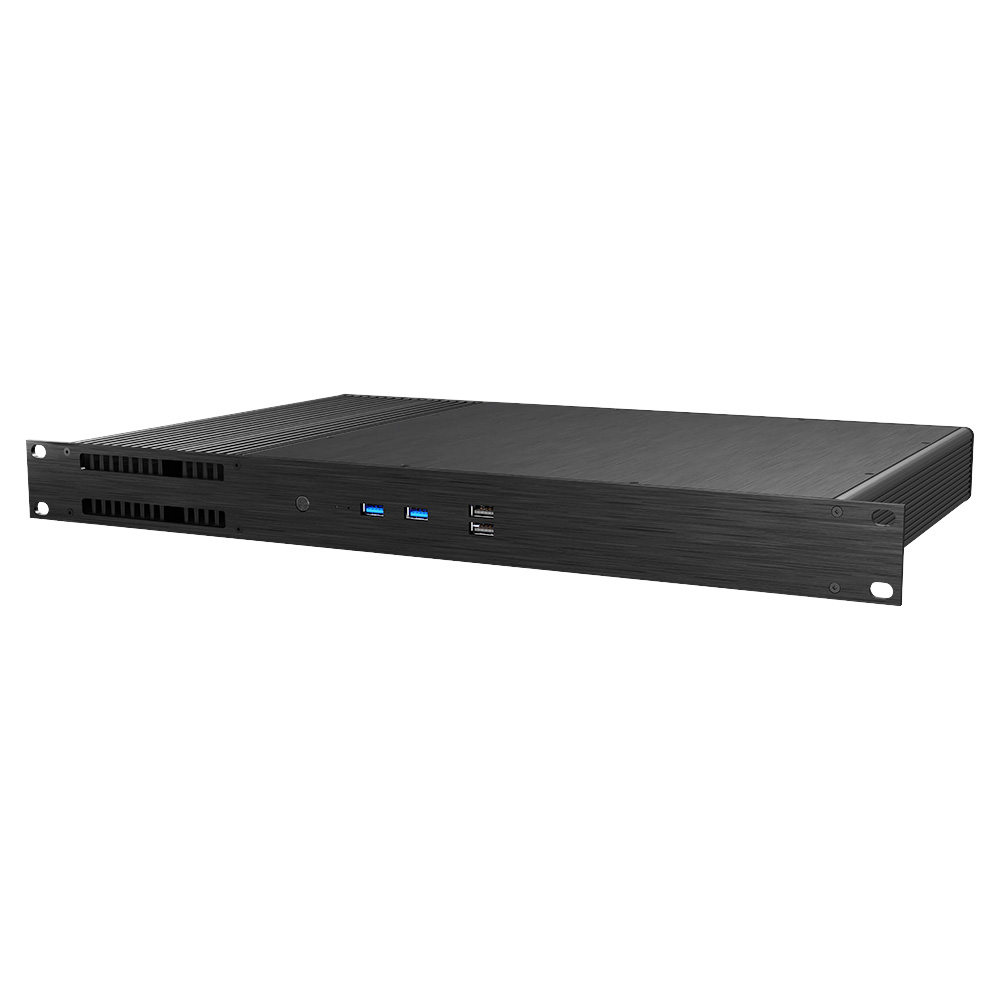

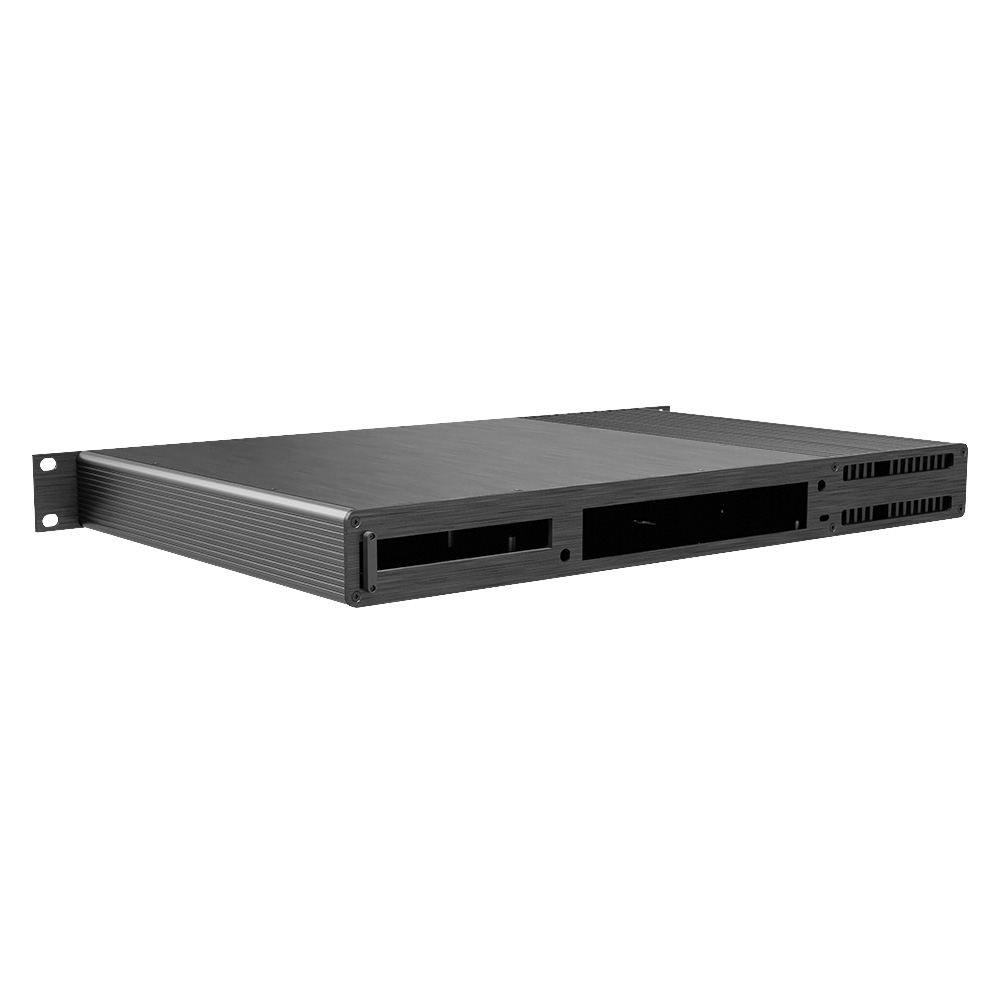

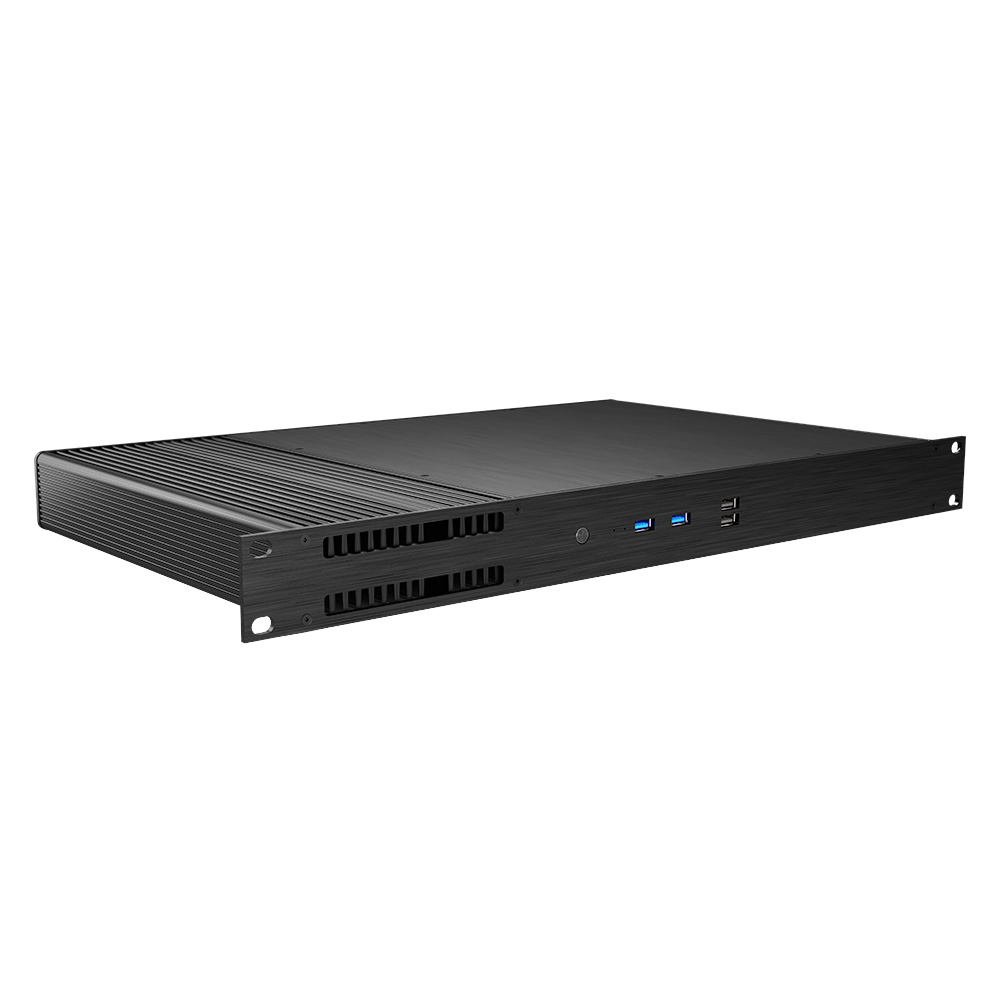

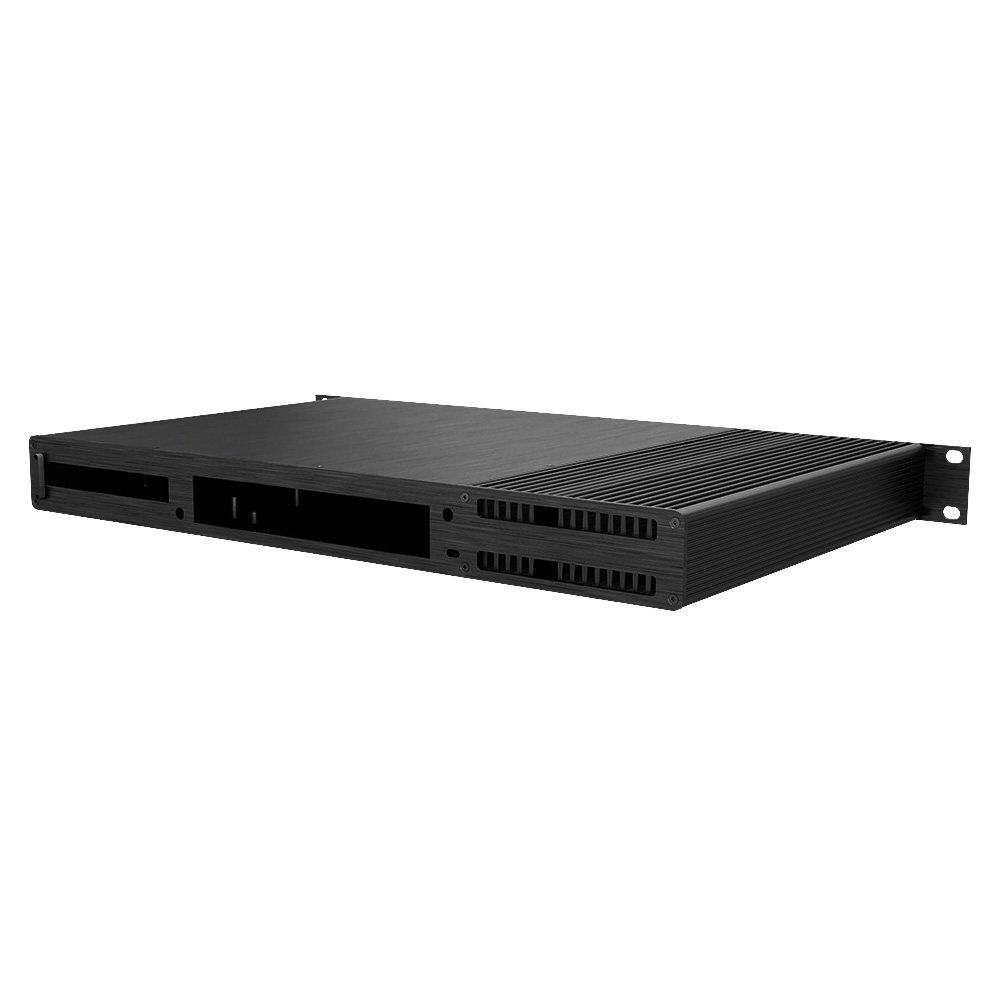

Galileo TU3 Plus
1U Rackmount
Fanless Thin Mini-ITX Case
• Premium aluminium fanless CPU cooling design
• LGA1700 ready
• 1U high fanless Thin Mini-ITX case
• Aluminium fanless CPU cooling design
• Four internal 2.5" HDD / SSD bay
• Support one PCI-E slot (8X)
Premium Brushed Aluminium
Premium aluminium case for hi-heat dissipation and durability. Brushed finish for a sleek and stylish look.
Intel® LGA1700 Ready
Perfect for low-powered T-series Intel® Alder Lake processors up to 35W Thermal Design Point (TDP). Featuring an upgrade thermal module to cater for increased contact surface area and mounting pattern for LGA1700.
Abundance of Storage Space
Four internal 2.5" HDD/SSD mobile bays for plentiful storage capability.
Rack Mountable
Perfect for server, broadcasting and audiophile applications.
Lo-Profile PCIe Expansion
Supports one low-profile PCIe card (8x).
Multiport USB Connection
Two front panel USB 3.2 Gen 1 and two USB 2.0 ports for added connectivity.
Superb Cooling Performance
Completely silent premium aluminium Thin Mini-ITX case with hi-efficient passive thermal module and hi-performance dual copper heatpipes. Transfers the heat from the processor to the fins on the exterior of the case, in order for the heat to be dissipated to the surroundings.
Low Profile
1U in profile height with volume of 5.2L

Material Aluminium with anodised black
Motherboard Types Thin mini-ITX with DC onboard
Socket Support Intel® LGA1700/1200/115X
Maximum TDP Support 35W
Dimensions 482.6 x 278 x 43.6mm ( W x D x H )
Drive Bays Four internal 2.5" HDD / SSD bays (max height of 15.5mm)
Front I/O USB 3.2 Gen 1 x2, USB 2.0 x2, Power button, Power & hard drive LEDs
Rear I/O Low profile PCI-E slot x1 (8X)
Antenna Fitting Holes 2
Security Kensington lock
VESA Mounting Support
Product Code A-ITX54-M1B

Installation manual


- 2022-06-15
