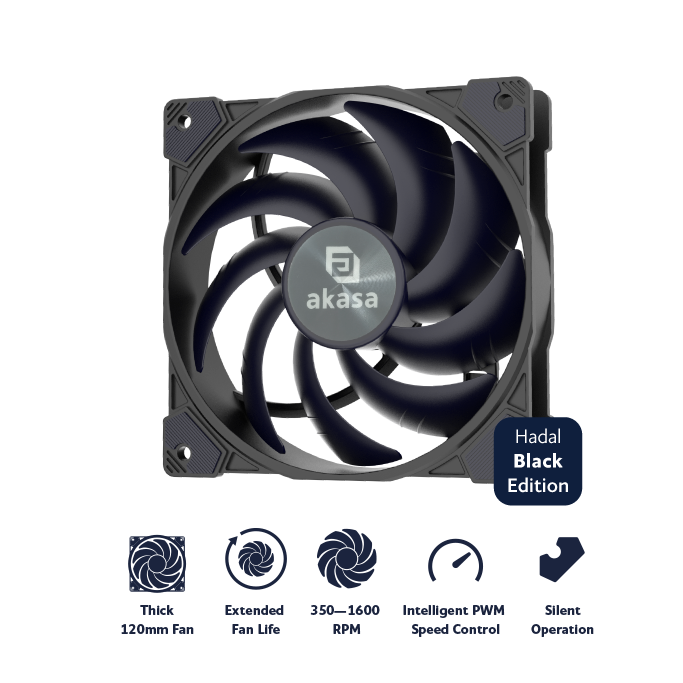

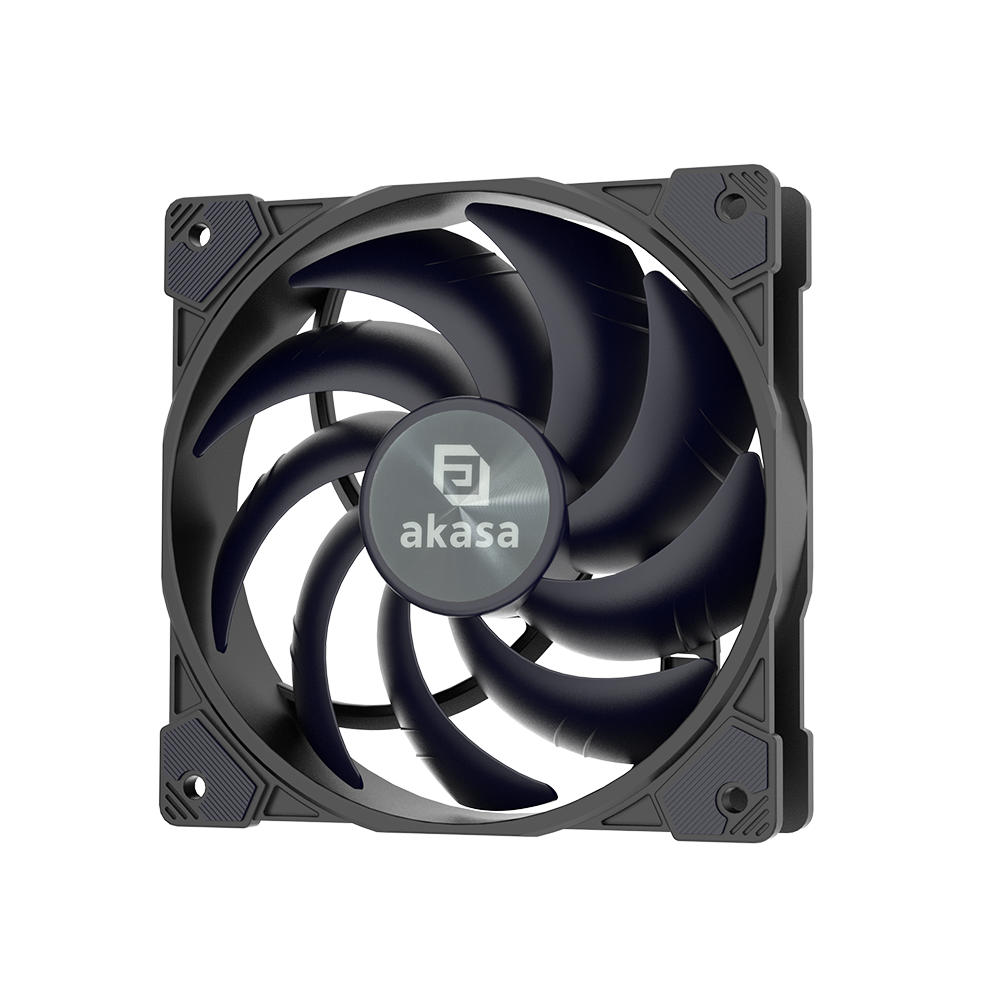

Alucia SM12
120x30mm PWM fan, 30mm thickness, designed for silent cooling
Premium 30mm fan, engineered for impressively silent cooling performance. With a sleek black design. This fan delivers 15% airflow increase and lower noise, making it perfect for use as a case intake/outtake fan.
• Silent cooling
• Upgraded blade design
• Silent operation with anti-vibration padding
• Intelligent fan performance
• Two ball bearing

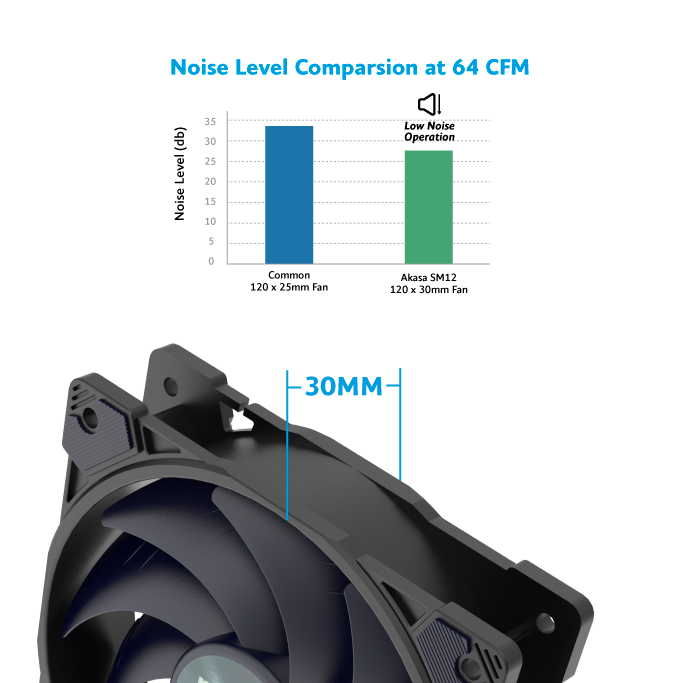

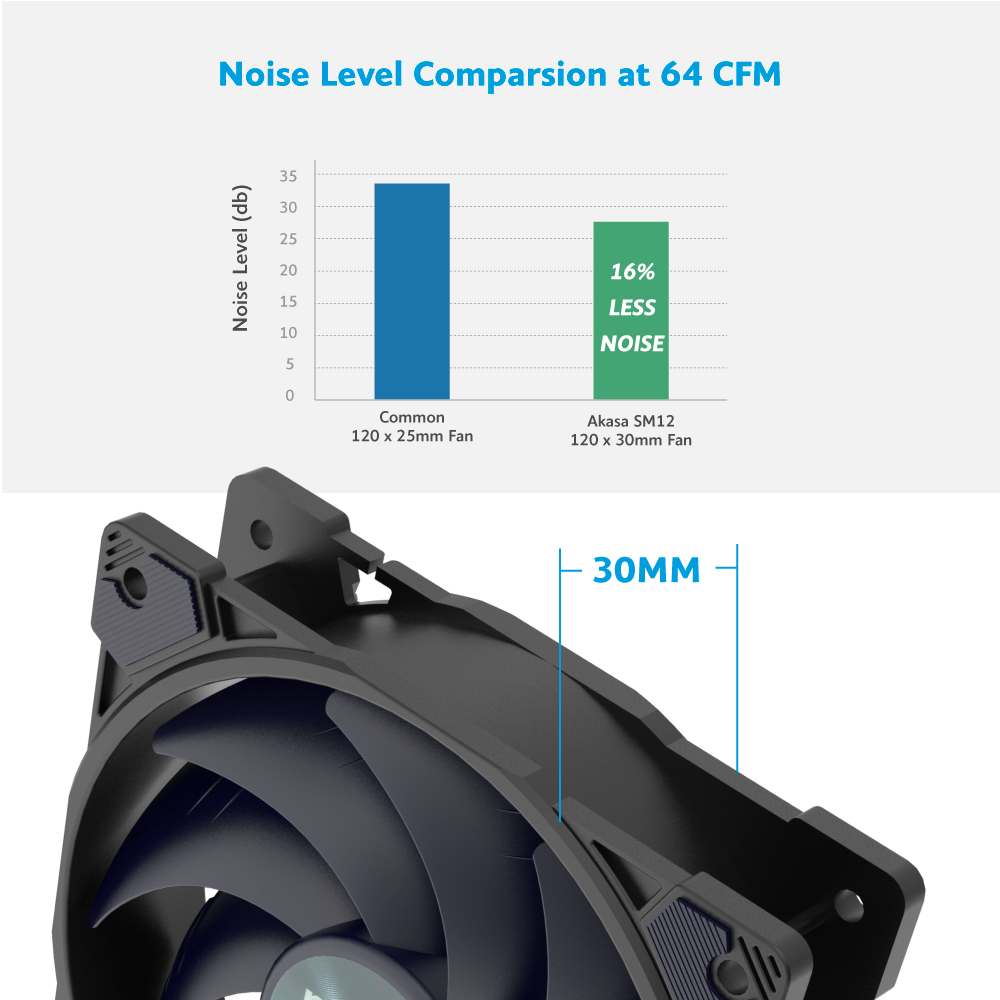

By having a bigger fan design to 30mm, our design minimises the resonance, resulting in 16% reduced noise levels to 27.5dB(A). Enjoy quieter operation without sacrificing performance.

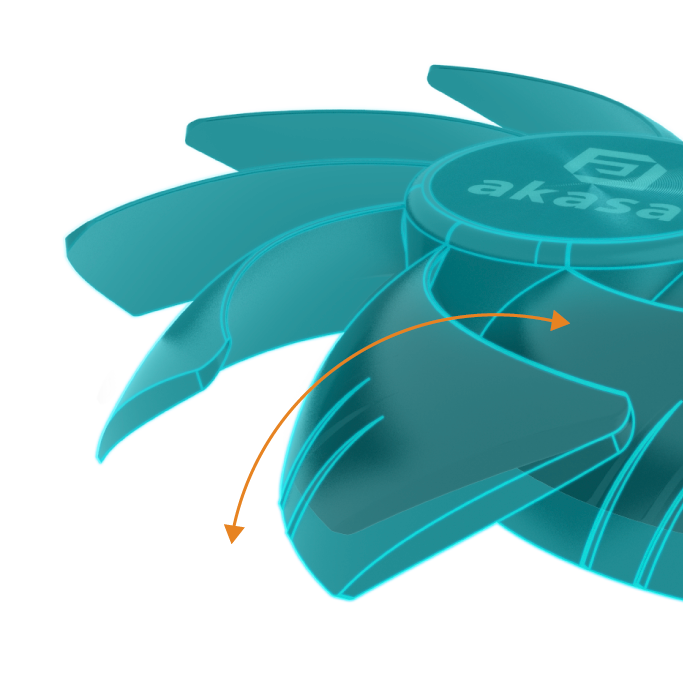

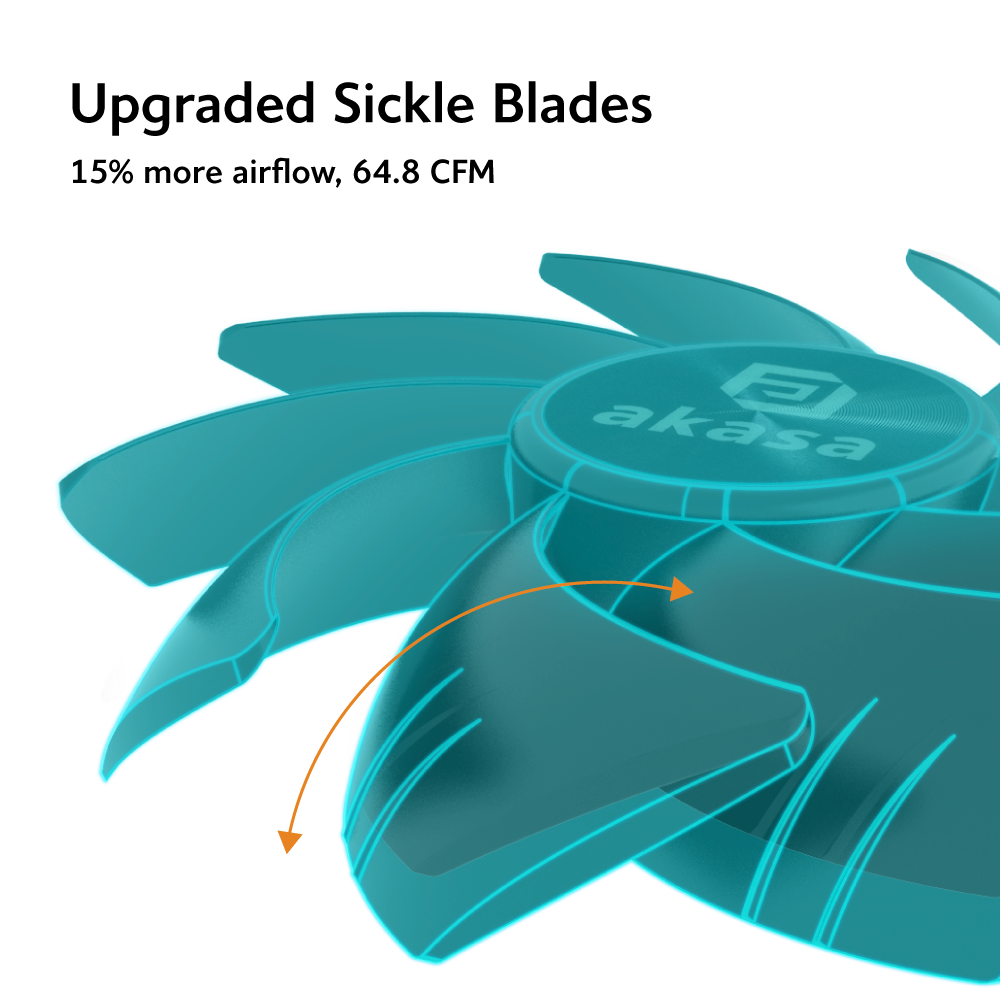

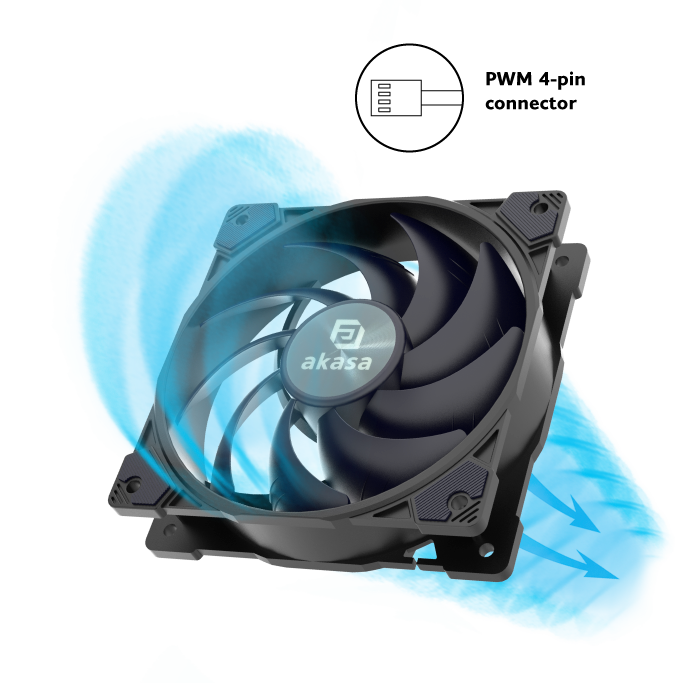

Advanced sickle blade design, featuring improved blade curvature and thickness, provides a superb 15% airflow increase, reaching up to 64.8 CFM.

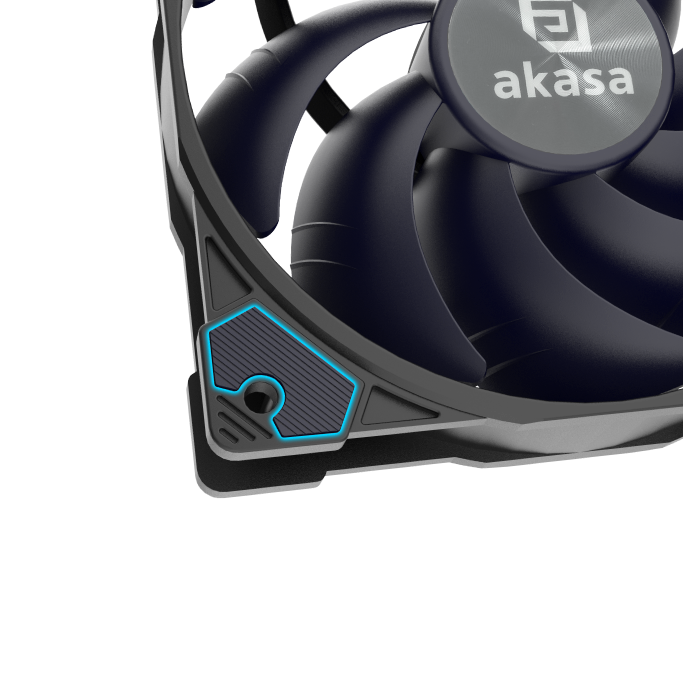

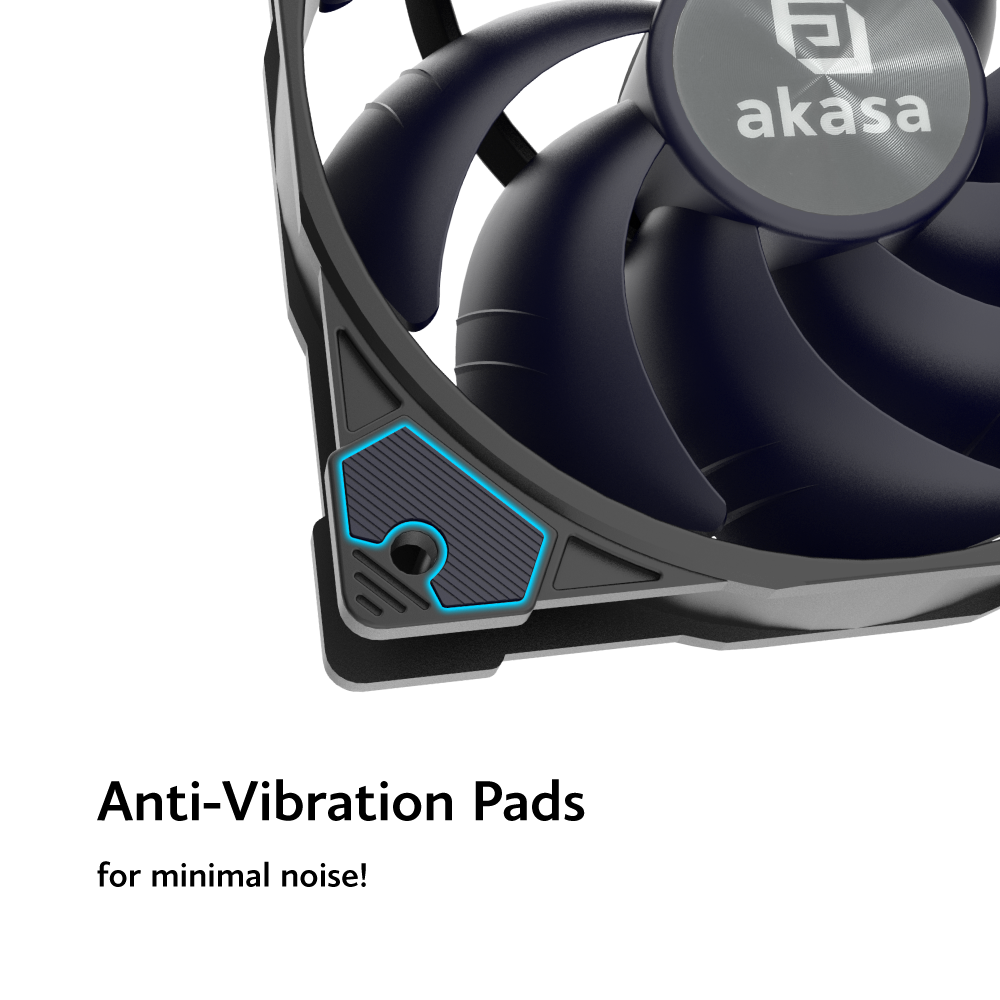

Anti-vibration pads attached to each corner of the fan minimises operational noise and transmission of vibrations to the PC, case and other components. Keeping noise in check.
Intelligent Pulse Width Modulation (PWM), speed control ensures that the fan cools your system efficiently, staying quiet under lower loads and performing effectively otherwise.

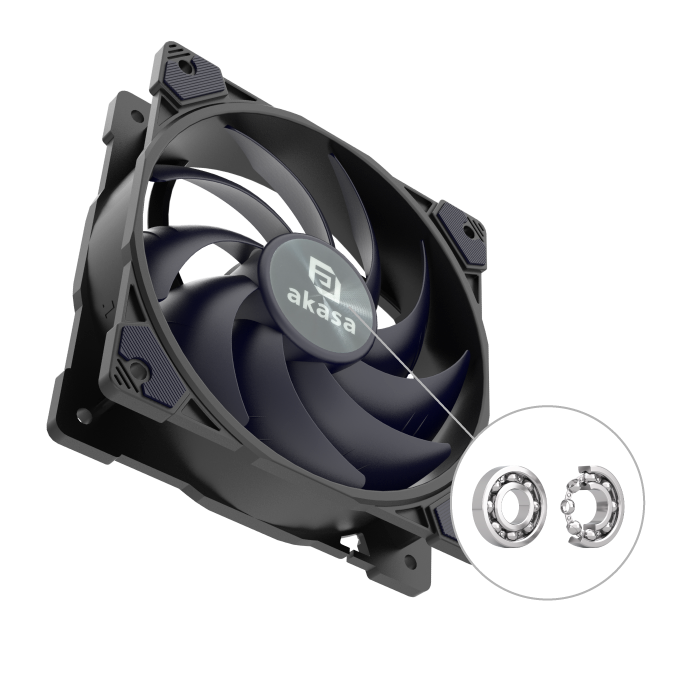

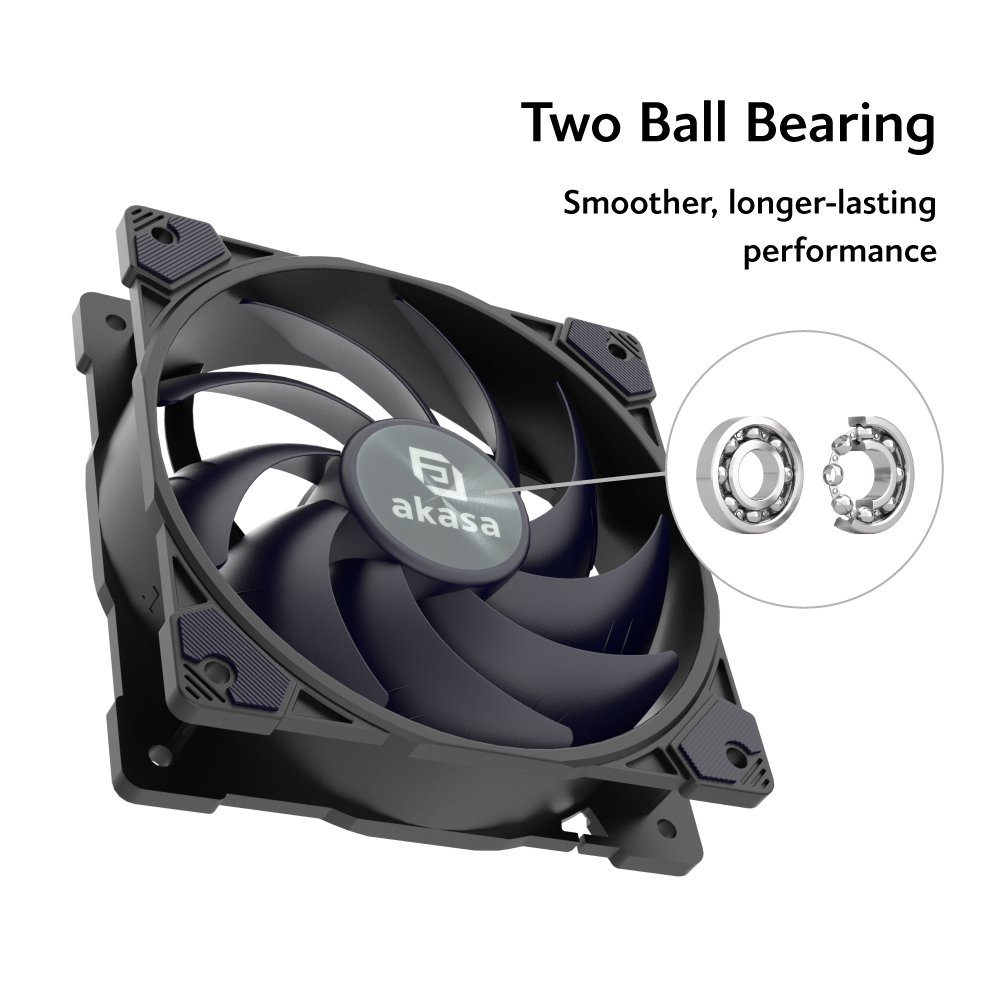

Experience enhanced durability and longevity with our dual ball bearings, ensuring smoother operation and reduced friction for consistent, reliable performance in any setup. With a fan life up to 80,000 hours.
| Application | PC case or heatsink fan |
|---|---|
| Dimension | 120 x 120 x 30 mm |
| Bearing | Two Ball Bearing |
| Speed | 350 - 1600 RPM ±10% |
| Max Airflow | 64.8 CFM |
| Max Static Pressure | 1.21 mm-H2O |
| Sound Level | 16 - 27.5 dB(A) |
| Rated Voltage for Fan | DC 12V |
| Rated Current for Fan | 0.16 A |
| Fan Connector | 4-Pin PWM |
| Fan Life | 80,000 hours |
| Warranty | 2 years |
| Package Dimensions | 125 x 135 x 35 mm |
| Product Code | AK-FN128 |
