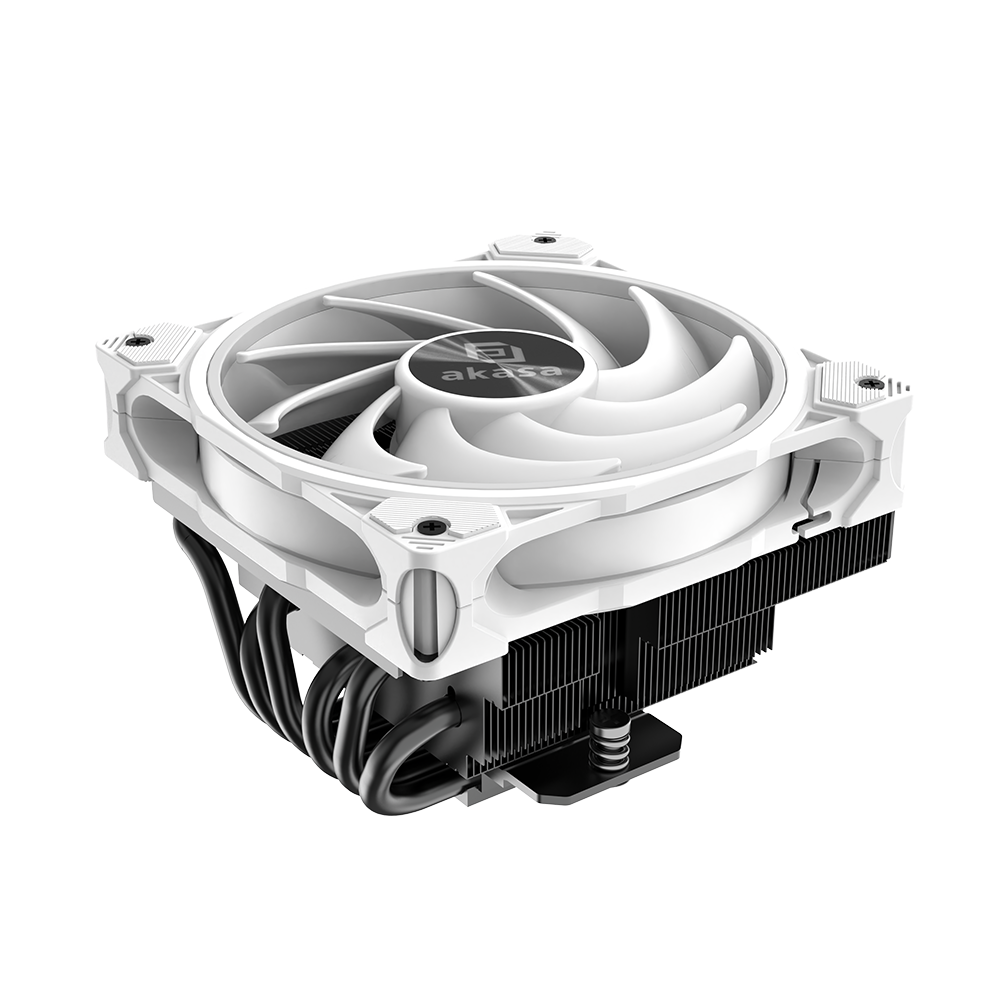

SOHO H6L M2

Low-profile aRGB CPU Cooler (77.6mm), 120mm Fan, 6 Copper Heatpipes, TDP 160W, Intel/AMD, Dawn Edition

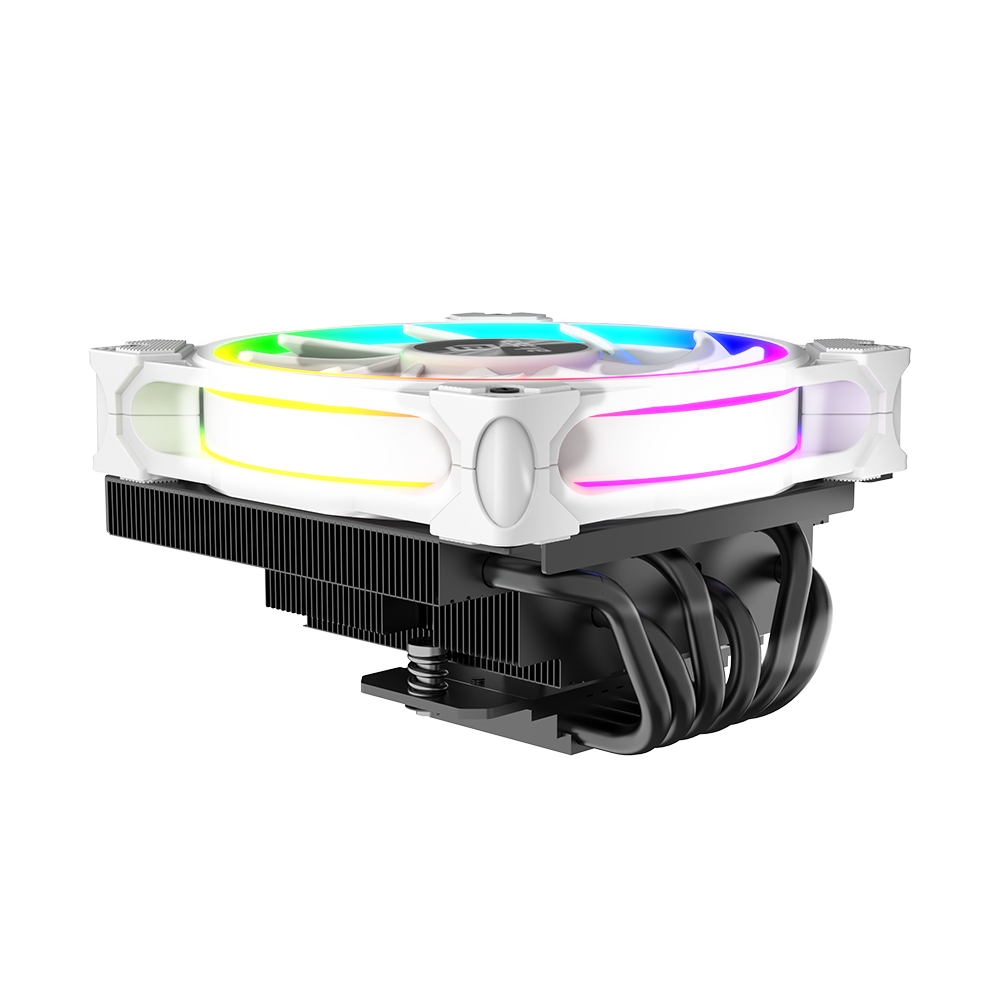

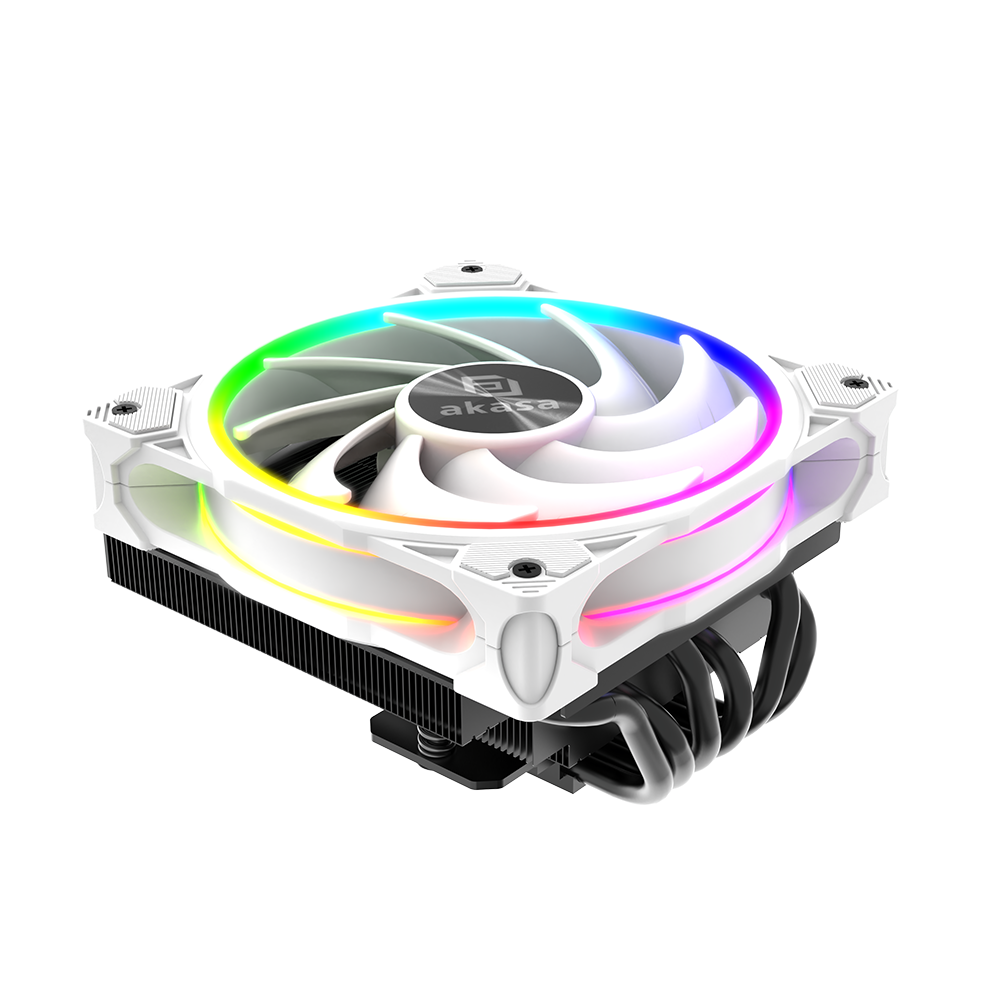

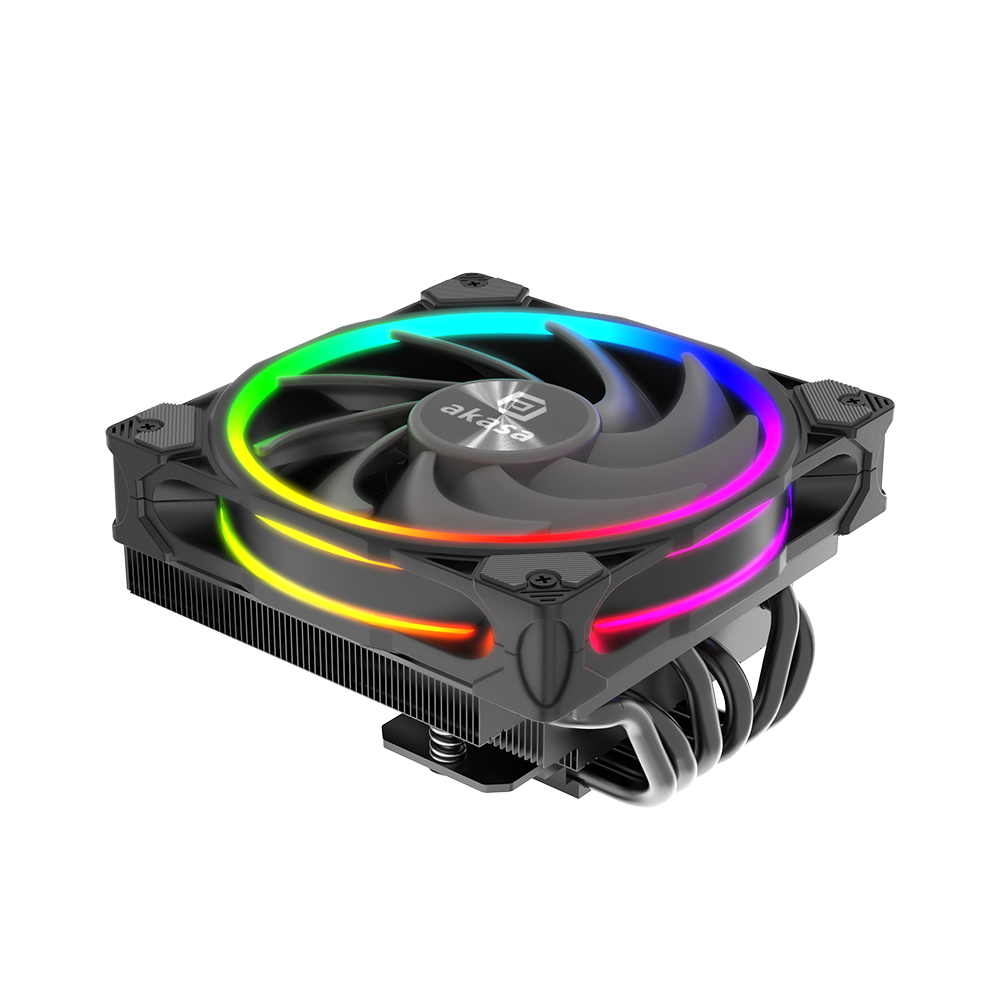

Compact yet powerful low-profile cooler with a sleek all-black aluminum heatsink, six high-efficiency copper heatpipes and a vibrant aRGB 120mm SOHO AR black fan. Compatible with Intel® LGA1851 / LGA1700 and AMD AM5 sockets, supporting CPUs up to 160W TDP. Perfect for small form factor (SFF) systems.

Product Code: AK-CC4039HP01
Where to Buy

SOHO H6L M2

  • Reliable cooling performance up to 160W TDP
  • Compact 77.6mm height optimised for SFF PCs
  • Vibrant 120mm aRGB fan with advanced sickle blade design
  • Maximum RAM clearance with efficient heatsink footprint
  • Secure mounting for Intel® LGA1851, LGA1700 and AMD AM5 sockets

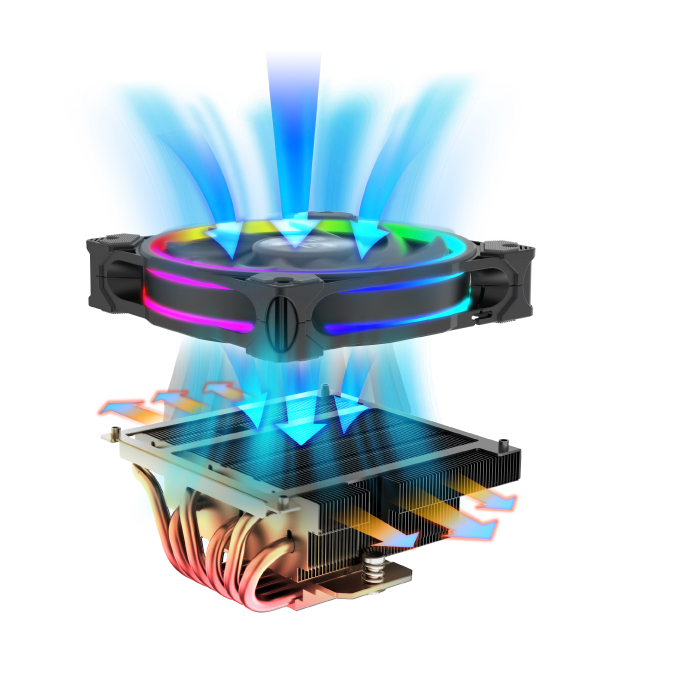

Advanced Cooling Performance

Top-down cooler design features a dense aluminium heatsink, six copper heatpipes and a striking SOHO AR fan for efficient heat dissipation.

Supports CPUs up to 160W TDP, aided by the nickel-plated copper base, making it ideal for gaming and productivity workloads.

Universal Socket Mounting

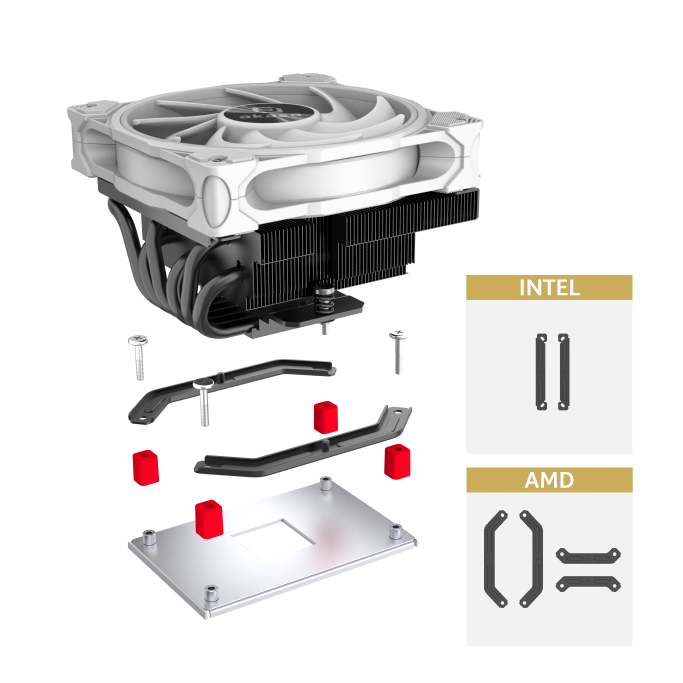

Mounting kit enables easy and secure installation for all Intel® LGA1851, LGA1700, LGA1200, LGA115X and AMD AM5, AM4 socket motherboards.

Full Memory Compatibility

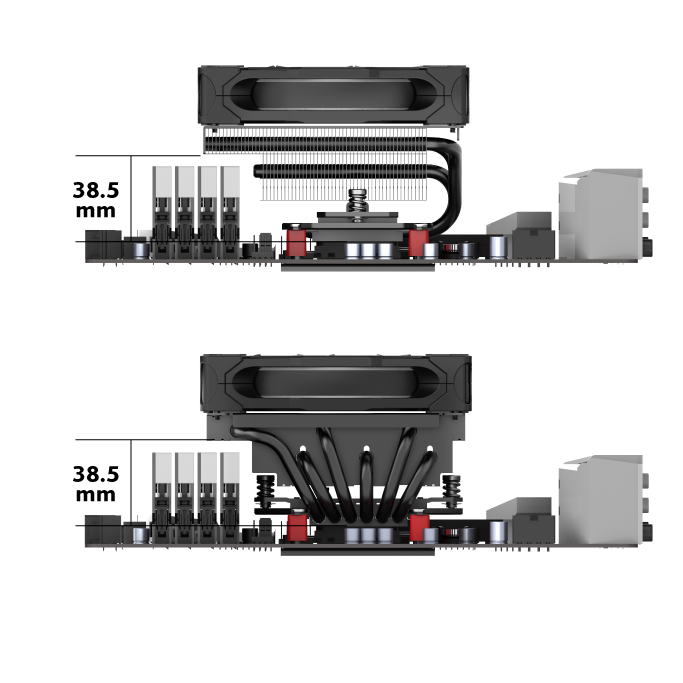

Efficient cooler footprint offers maximum RAM clearance, allowing for total use of all available RAM slots, even in systems with limited clearance.

Perfect for Small Form Factor Cases

With a height of only 77.6mm, this space-saving cooler is ideal for Mini-ITX, Thin Mini-ITX or other SFF builds where space is at a premium.

Silent aRGB Cooling

120mm SOHO AR fan combines aRGB lighting, advanced sickle blade design and intelligent PWM speed control for vivid, silent cooling performance. Hydro dynamic (HD) bearings extend fan life with its lubrication seal, further enhancing noise reduction.

aRGB Motherboard Sync

Embedded with 14 individually addressable RGB LED nodes resulting in over 16 million colour combinations for completely customisable lighting. Motherboard sync certified by popular RGB software including ASUS®, ASRock®, GIGABYTE™ RGB Fusion, MSI® and Razer Chroma™.

Ultra Performance Thermal Compound

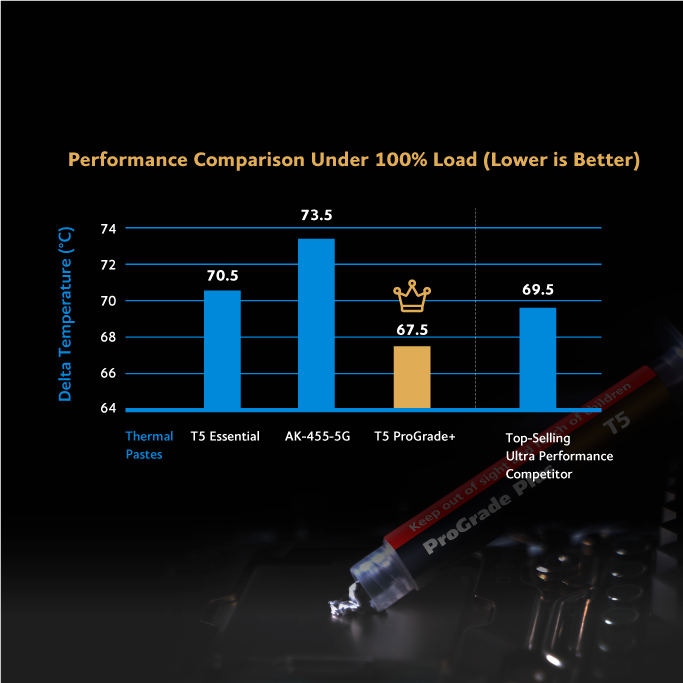

Includes T5 ProGrade+ thermal compound with hybrid silicone and nano-diamond particles for superior heat transmission.

Socket Type Intel Socket: LGA115x, LGA1200, LGA1700, LGA1851
AMD Socket: AM4, AM5
Suggested TDP (W) 160
Cooler Dimensions 120 x 120 x 77.6 mm
Heatsink Material Aluminium fins with copper heatpipes

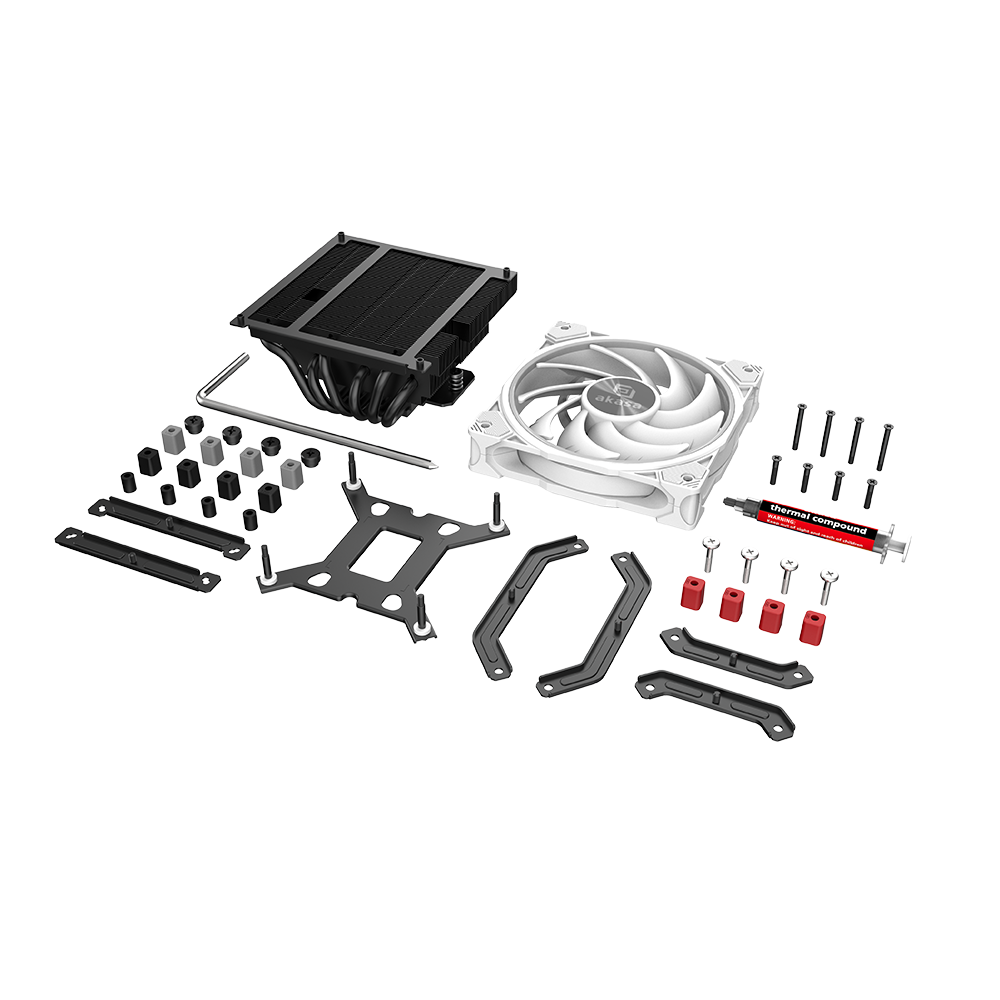

Installation Mounting screw and bracket kit
Weight 565g
Product Code AK-CC4039HP01

Dimensions 120 x 120 x 26.5mm
Bearing HD Bearing
Fan Speed 500 - 2000 RPM
Max Airflow 52.91 CFM
Max Air Pressure 1.75 mm-H2O
Noise Level 14.2 - 31.8 dB(A)
Fan Rated Current 0.13 A
LED Rated Current 0.5 A
Fan Rated Voltage DC 12V
LED Rated Voltage DC 5V
Fan connector 4-Pin PWM
LED connector 3-Pin Addressable RGB
Fan Life Expectancy 40,000 hours
Warranty 2 years

Installation manual

GB, FR, DE, PT, ES, RU, CZ, PL, JP, CN-S, CN-T
