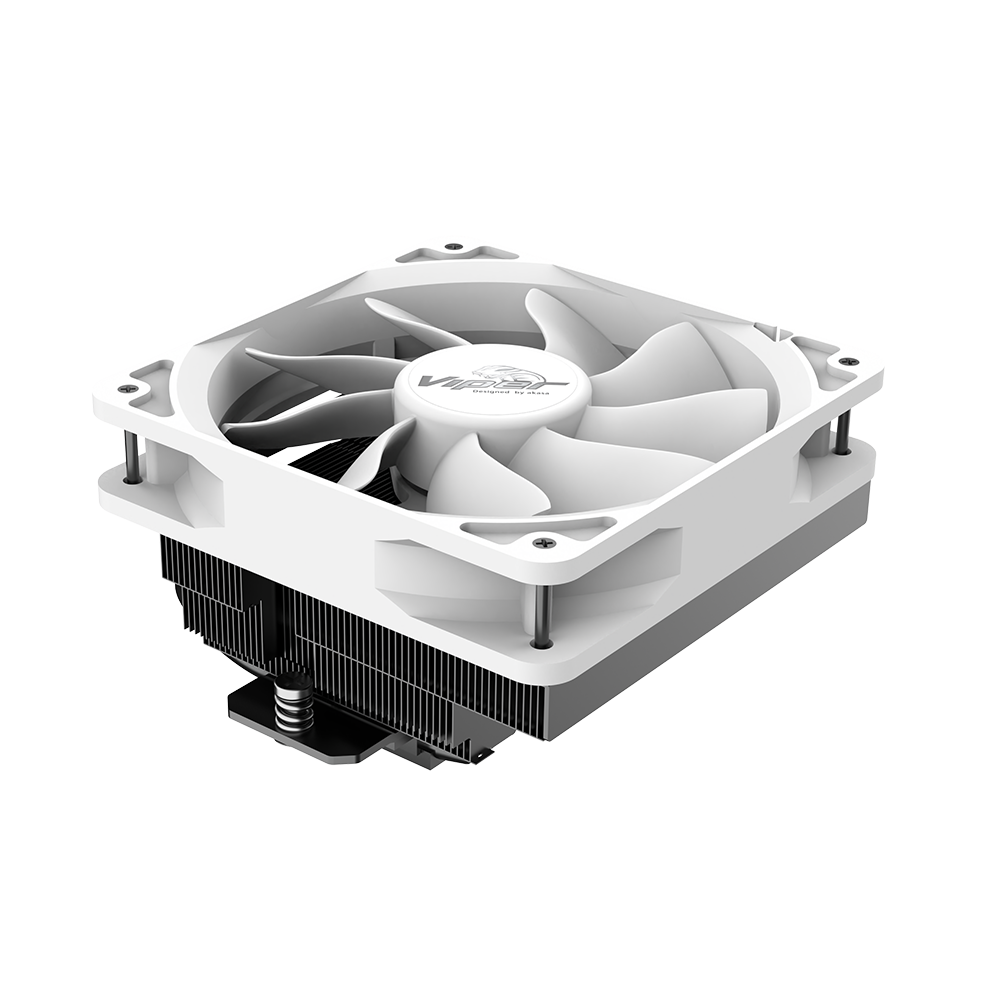

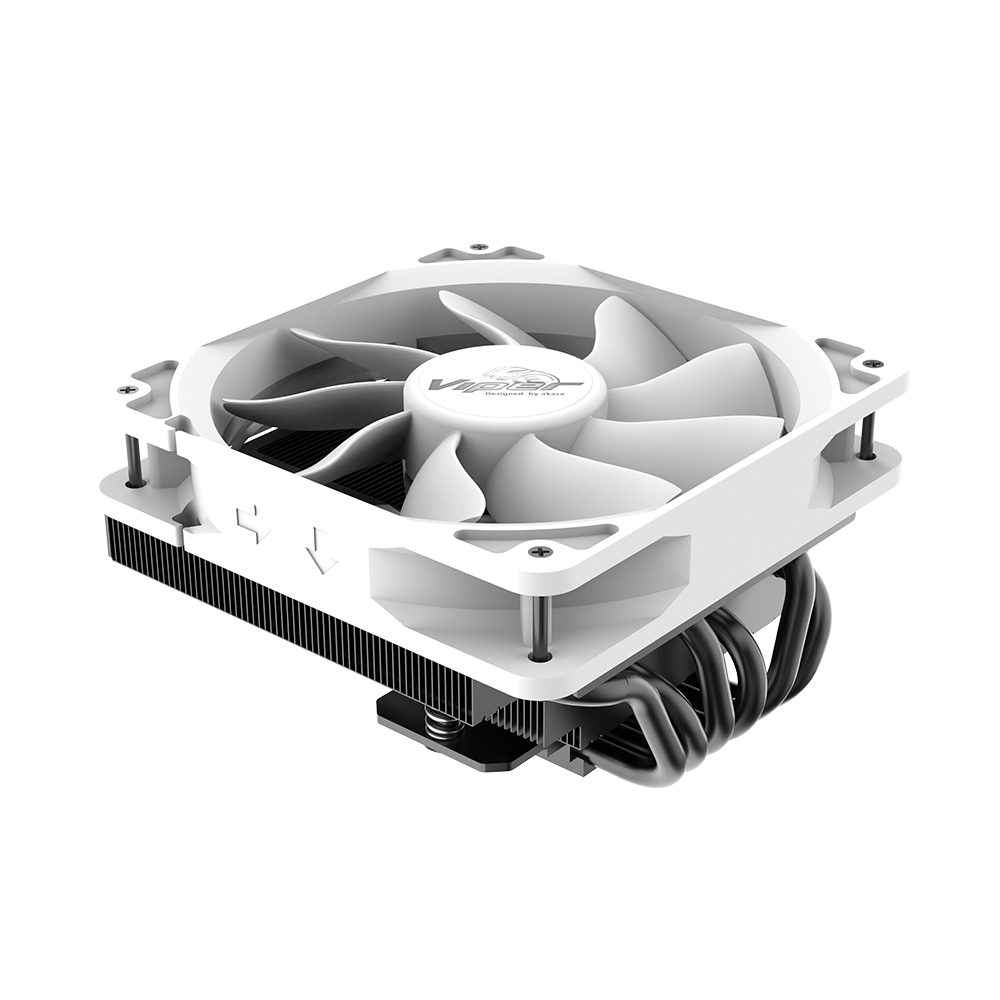

VIPER H6L M2
Low-profile CPU Cooler (76mm), 120mm Fan, 6 Copper Heatpipes, TDP 165W, Intel/AMD, White
Compact yet powerful low-profile cooler with a sleek all-black aluminum heatsink, six high-efficiency copper heatpipes and a performance-tuned 120mm Viper White fan. Compatible with Intel® LGA1851 / LGA1700 and AMD AM5 sockets, supporting CPUs up to 165W TDP. Perfect for small form factor (SFF) systems.

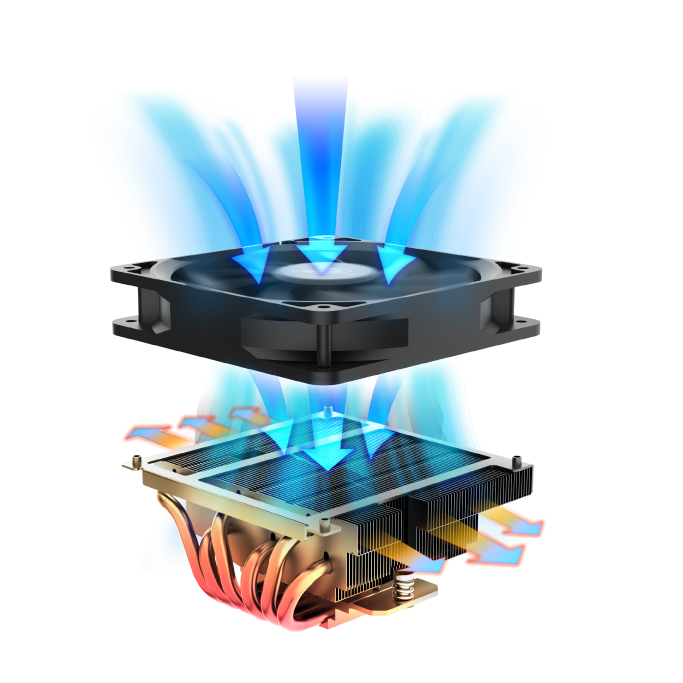

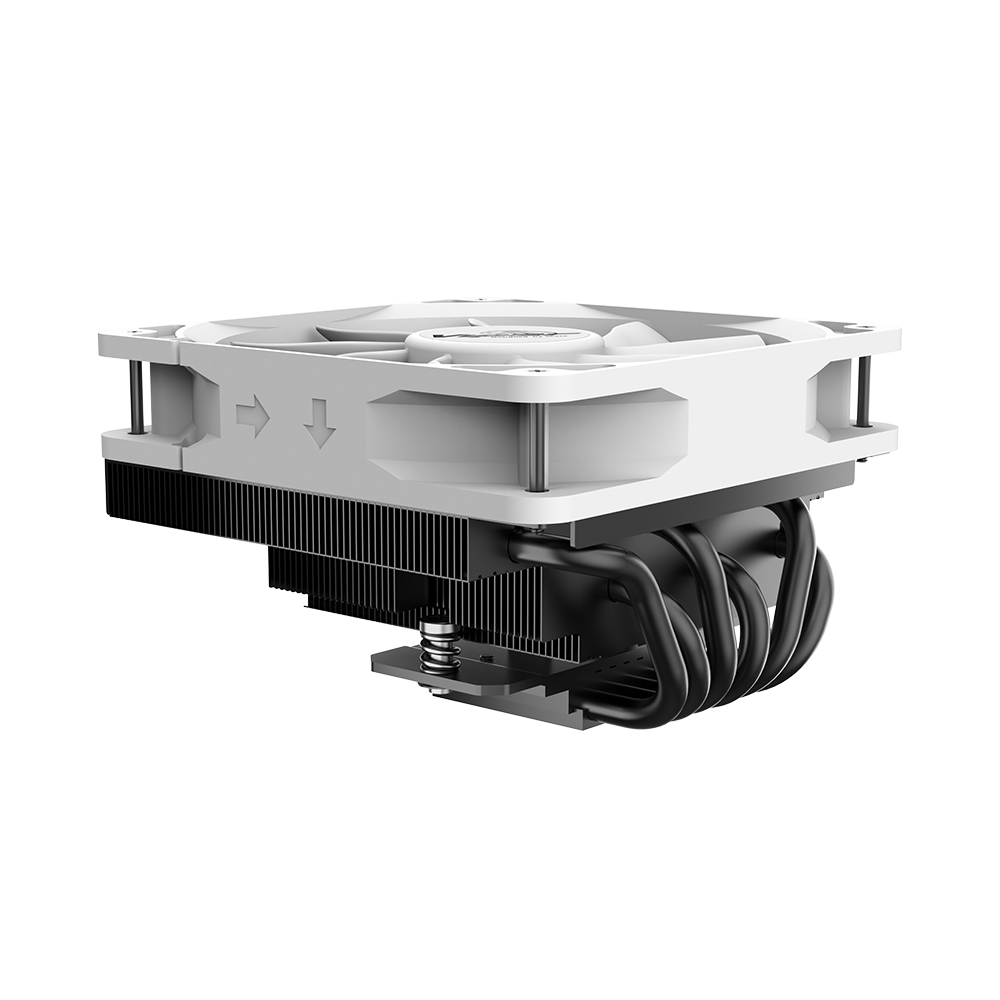

Top-down cooler design features a dense aluminium heatsink, six copper heatpipes and a high-performance Viper Black fan for efficient heat dissipation.

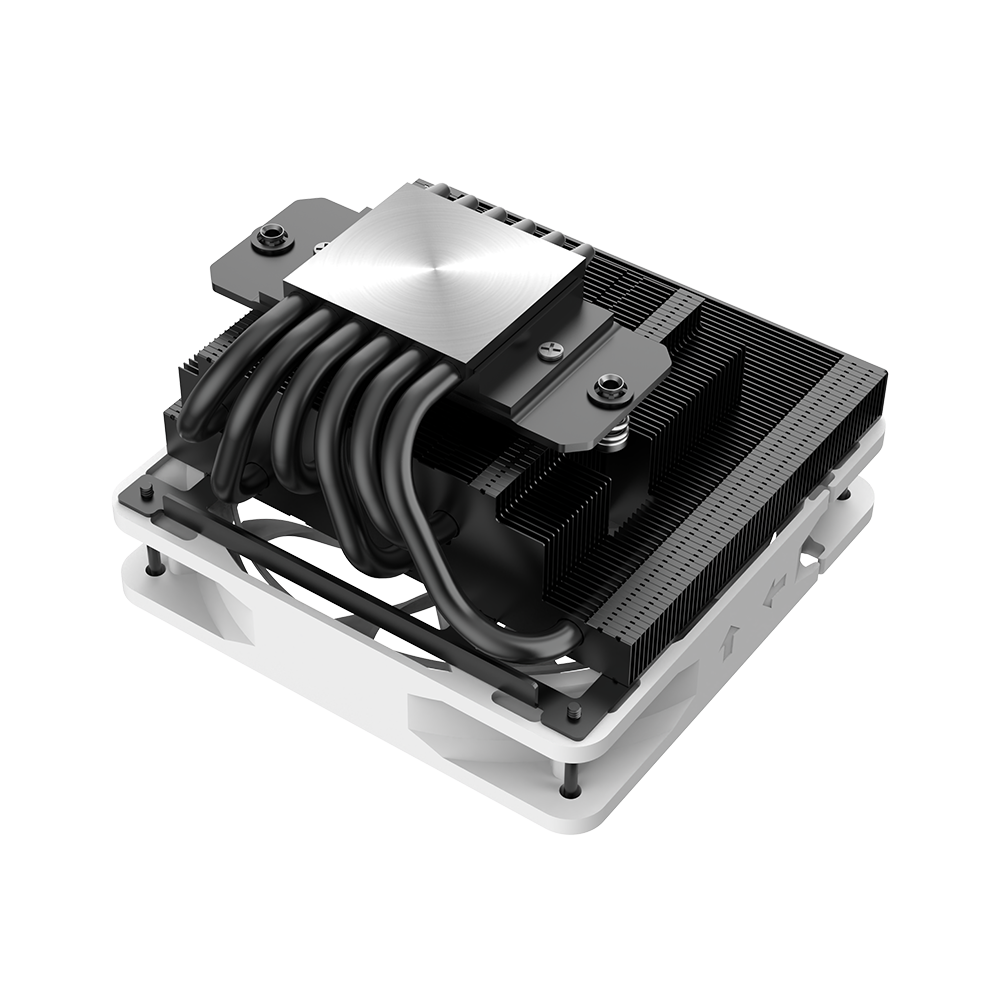

Supports CPUs up to 165W TDP, aided by the nickel-plated copper base, making it ideal for gaming and productivity workloads.

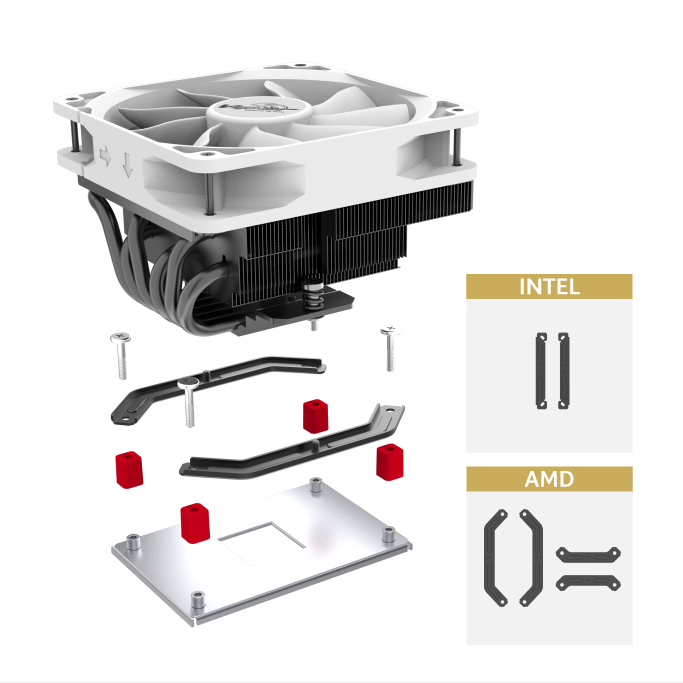

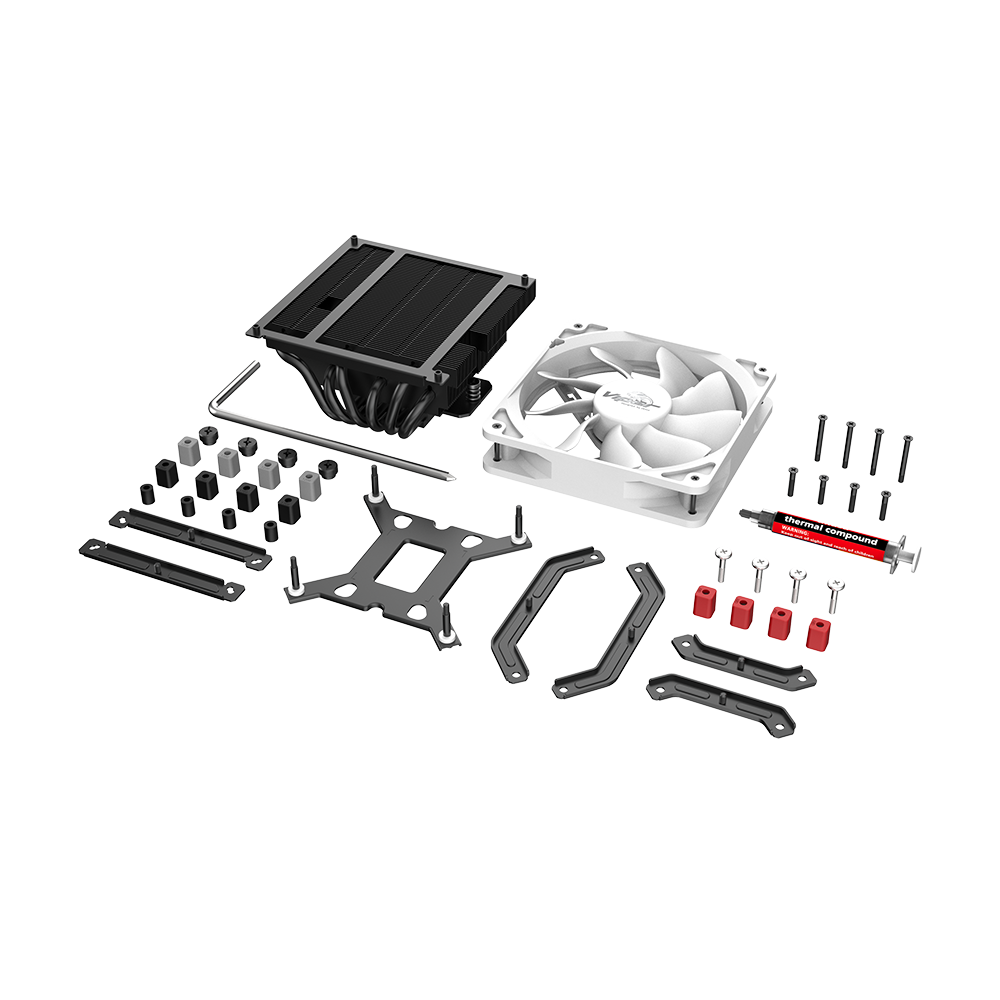

Mounting kit enables easy and secure installation for all Intel® LGA1851, LGA1700, LGA1200, LGA115X and AMD AM5, AM4 socket motherboards.

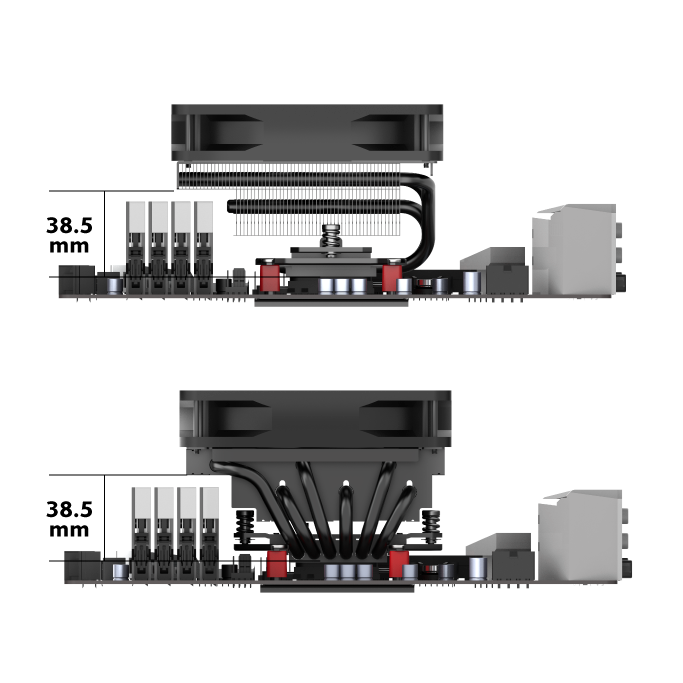

Efficient cooler footprint offers maximum RAM clearance, allowing for total use of all available RAM slots, even in systems with limited clearance.
With a height of only 76mm, this space-saving cooler is ideal for Mini-ITX, Thin Mini-ITX or other SFF builds where space is at a premium.

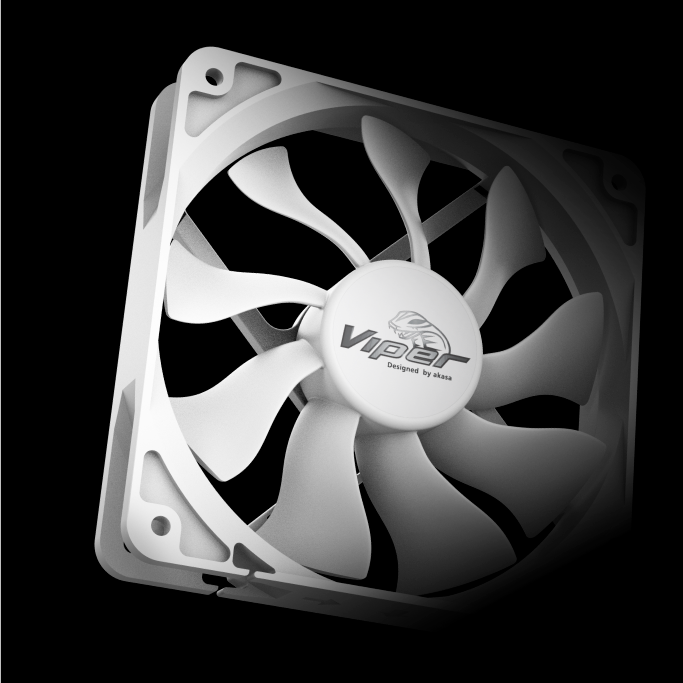

120mm Viper Black fan with intelligent PWM speed control balances cooling power with silence, with noise levels reaching only 28.9 dB(A) at 100% speed. Hydro dynamic (HD) bearings extend fan life with its lubrication seal, further enhancing noise reduction.

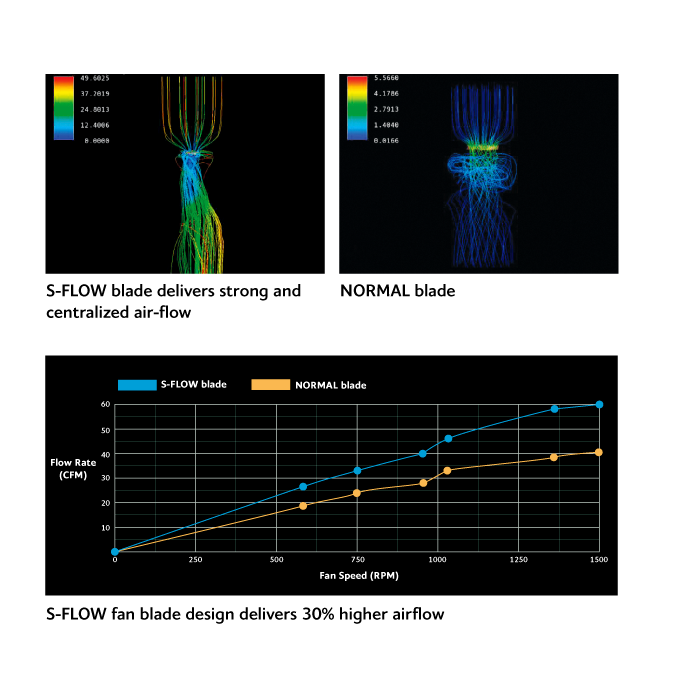

Smart fan blade design supplies 30% more airflow than a standard fan at the same speed, directing cooling precisely where needed.

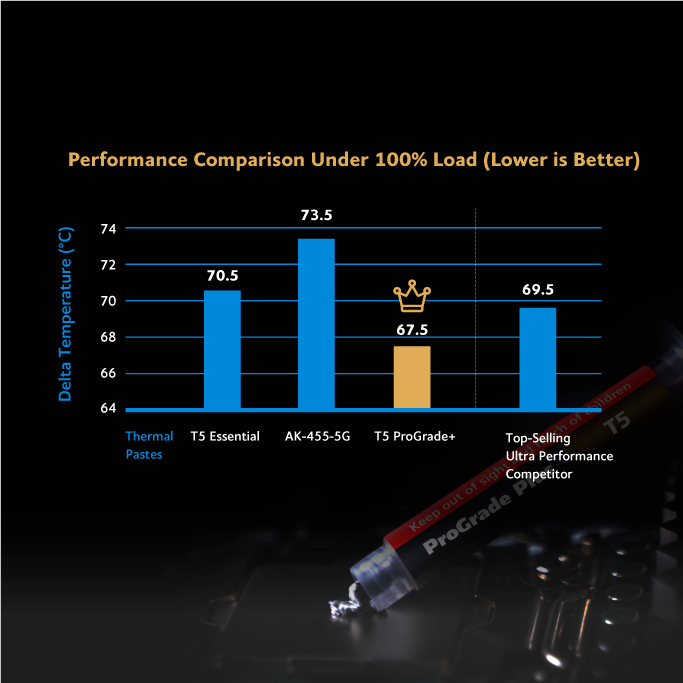

Includes T5 ProGrade+ thermal compound with hybrid silicone and nano-diamond particles for superior heat transmission.
| Socket Type | Intel Socket: LGA115x, LGA1200, LGA1700, LGA1851 AMD Socket: AM4, AM5 |
|---|---|
| Suggested TDP (W) | 165 |
| Cooler Dimensions | 120 x 120 x 76 mm |
| Heatsink Material | Aluminium fins with copper heatpipes |
| Installation | Mounting screw and bracket kit |
| Weight | 550g |
| Product Code | AK-CC4038HP01 |
| Dimensions | 120 x 120 x 25mm |
|---|---|
| Bearing | HD Bearing |
| Fan Speed | 600 - 1900 RPM |
| Max Airflow | 83.63 CFM |
| Max Air Pressure | 2.98 mm-H2O |
| Noise Level | 6.9 - 28.9 dB(A) |
| Fan Rated Current | 0.17 A (Max: 0.33A) |
| Fan Rated Voltage | DC 12V |
| Fan connector | 4-Pin PWM |
| Warranty | 2 years |
