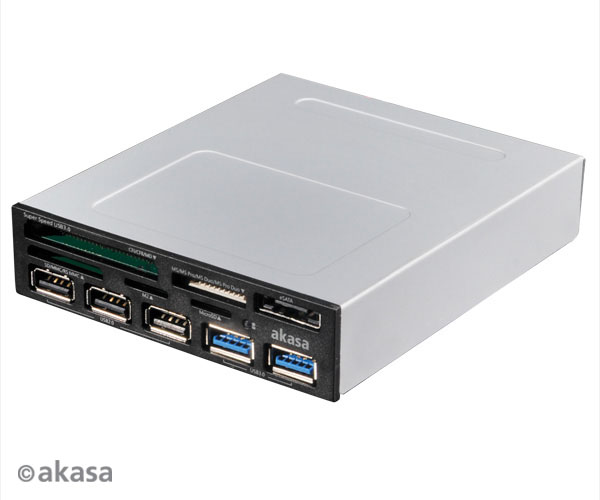

USB 3.0 card reader unleash the power of high speed memory card
Four card-slots are active at the same time, allowing cross format
   data transfer

USB 2.0 HUB with independent power design
USB 3.0 port backwards compatible with USB 2.0

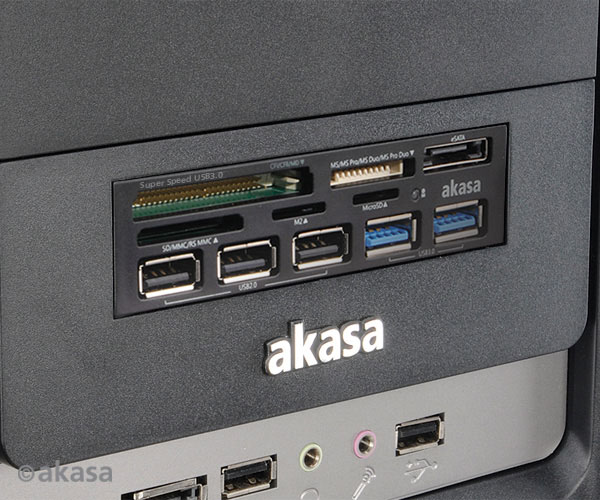

Application 3.5" PC bay
Memory card slots 5
Memory card types Compact Flash (CF I, CF II, Ultra, Extreme, I-Pro, Ultimate, MD)
Memory Stick (MS Pro, MS Pro Duo, Magic Gate, Extreme, Ultra)
Secure Digital (SDXC, SDHC, SD, Ultra, Extreme, Elite Pro, High Speed, MMC, MMC Mobile)
• 1TB for SDXC • 32GByte for SDHC
M2 (Memory Stick Micro M2)
microSD (micro SDHC, micro SDXC, High Capacity)
Interface Internal USB 2.0 motherboard connector, internal USB 3.0 motherboard connector, USB 3.0 A male connector, SATA connector, 4-Pin PSU molex connector
Data transfer rate 5Gb/s (USB 3.0) and 480Mb/s (USB 2.0)
LED indication Power On, Card In & Data Transfer
Power mode USB and 4-Pin PSU molex
Supported OS Windows XP / Vista / 7 / 8.X / 10 / 11
Plug & Play Supported
Product code AK-ICR-17

Installation manual


- 2015-11-12
Firmware upgrade

Windows XP, Vista, 7, 8.X and 10

- 2015-10-29
