CPU Cooler (42.5mm), 70mm Fan, Screw Mount, TDP 155W, Intel

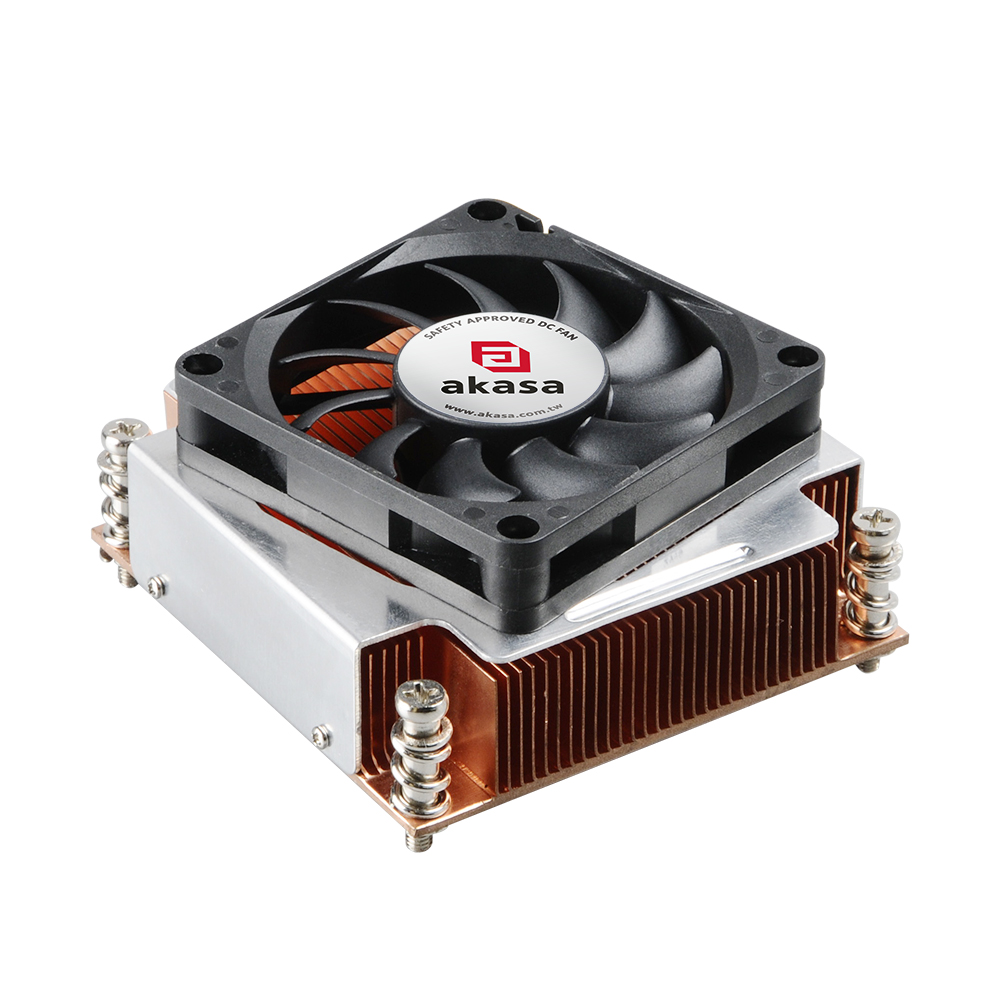

Skive-fin all copper heatsink with 7cm twin ball bearing PWM fan. Designed for 2U and higher chassis. Secure spring loaded screws mounting.
Product Code: AK-CC6502BP01
CPU Cooler (42.5mm), 70mm Fan, Screw Mount, TDP 155W, Intel
Skive-fin all copper heatsink with 7cm twin ball bearing PWM fan. Designed for 2U and higher chassis. Secure spring loaded screws mounting.

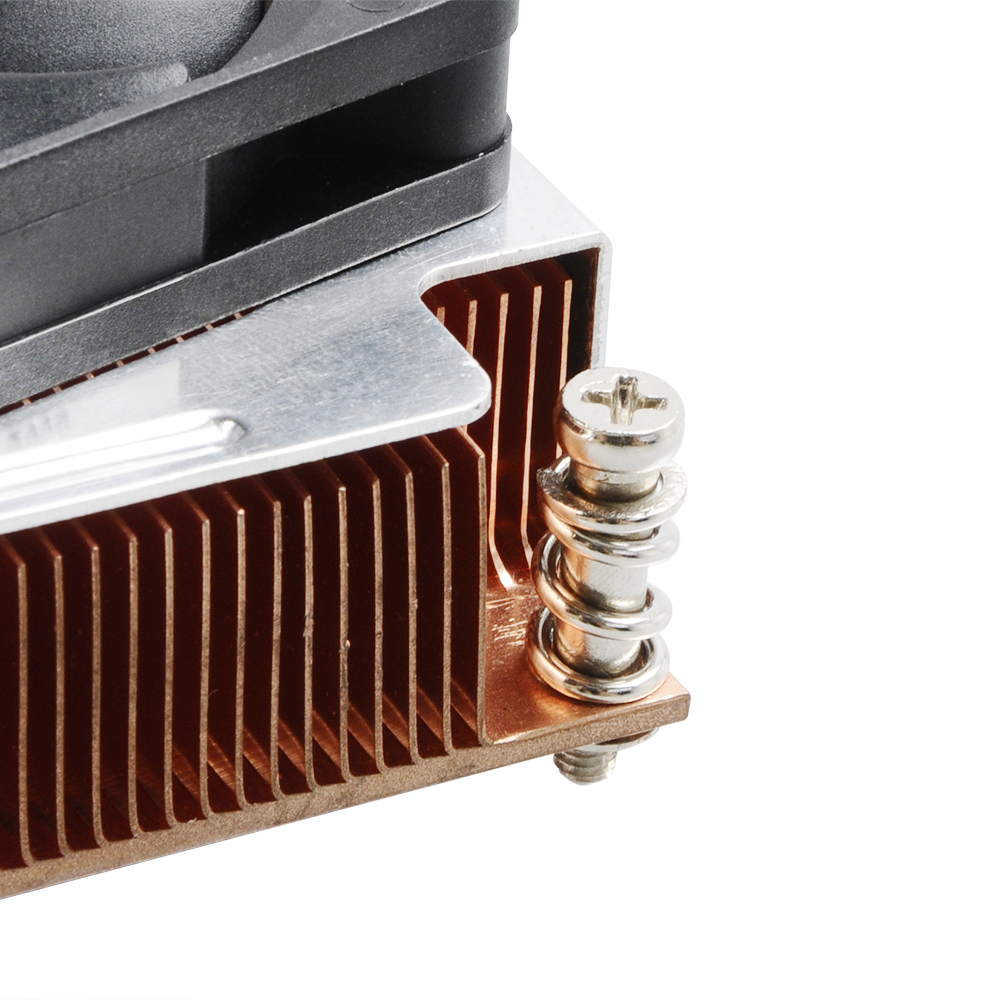

2U chassis server cooling solution for Intel LGA2011 / LGA2066 motherboards. Copper heatsink designed for rackmount or workstations chassis. Long life PWM fan provides acurate cooling. Pre-applied spring-loaded screws and motherboard backplate guarantee safe retention.
• Active LGA2011 / LGA2066 cooling solution for 2U chassis
• 7cm fan with automatic PWM speed control

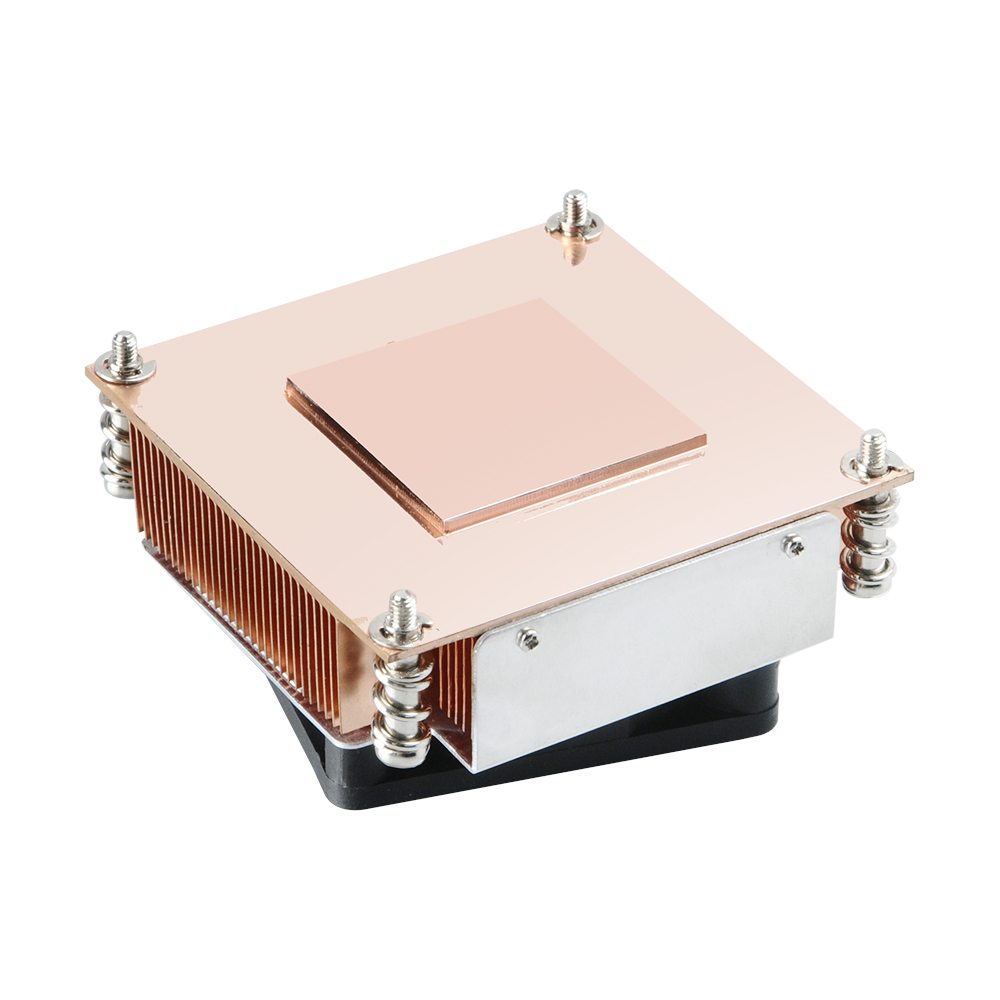

• Solid copper heatsink
• Reliable and long life twin ball bearing
| Socket Type | Intel LGA2011, LGA2066 |
|---|---|
| Suggested TDP (W) | 155 |
| Cooler Dimensions | 90 x 89 x 42.5 mm |
| Heatsink Material | Copper |
| Installation | Screw mounting |
| Weight | 582g |
| Product Code | AK-CC6502BP01 |
| Dimensions | 70 x 70 x 15 mm |
|---|---|
| Bearing | Two Ball Bearing |
| Fan Speed | 1000 - 5000 RPM |
| Max Airflow | 37.24 CFM |
| Max Air Pressure | 6.015 mm-H2O |
| Noise Level | 42.4 dB(A) |
| Fan Rated Current | 0.28A |
| Fan Rated Voltage | DC 12V |
| Connector | 4-pin PWM |
| Fan Life Expectancy | 65,000 hours |
| Warranty | 2 years |
