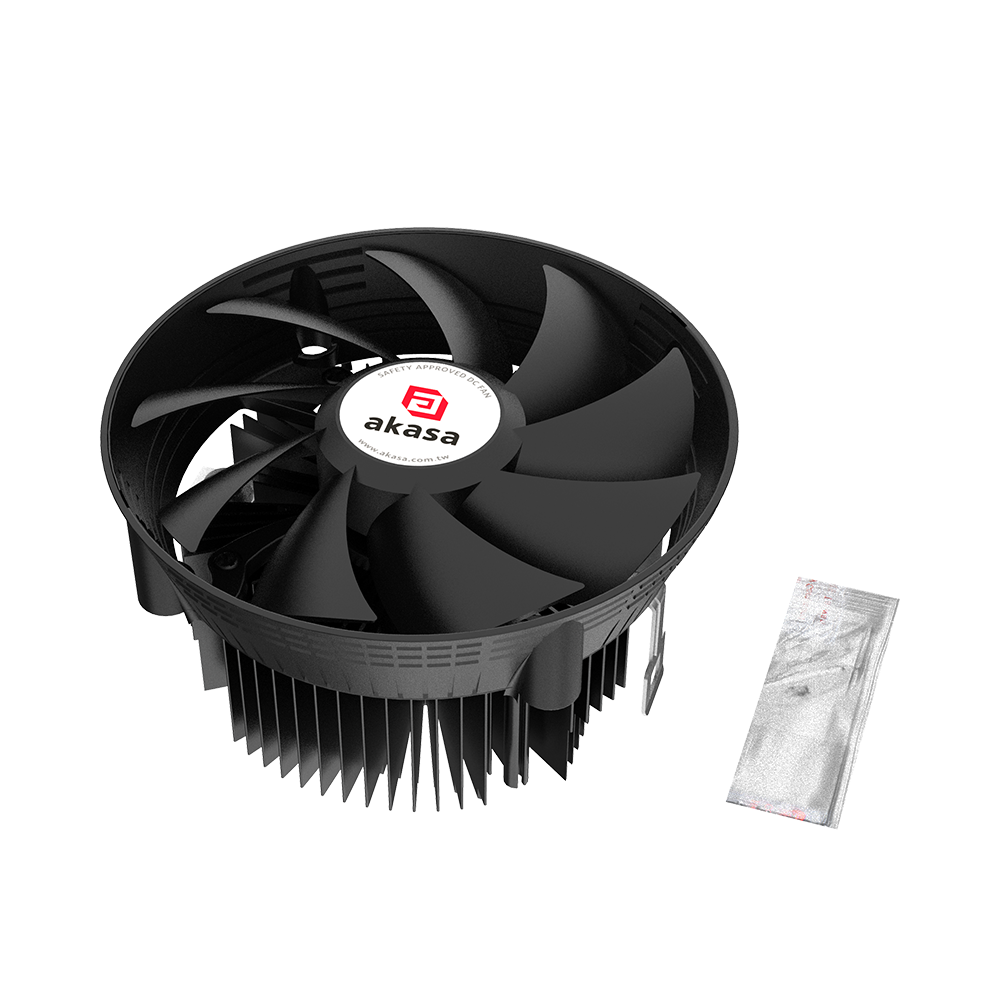

CPU Cooler (63mm), 120mm Fan, Screw Mount, TDP 95W, AMD
An excellent cost-performance ratio cooler designed for AMD Ryzen™ processors, combining a black anodised aluminium heatsink with intelligent PWM fan control for reliable, low-noise thermal management. Compatible with AM5, AM4 and AM3+ sockets up to 95W TDP. Ideal for workstation desktops, industrial PCs and small form factor (SFF) systems.

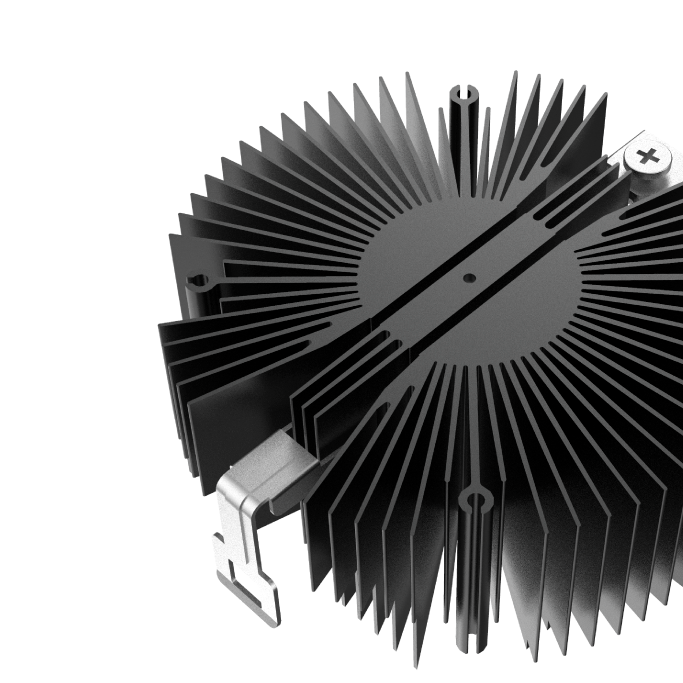

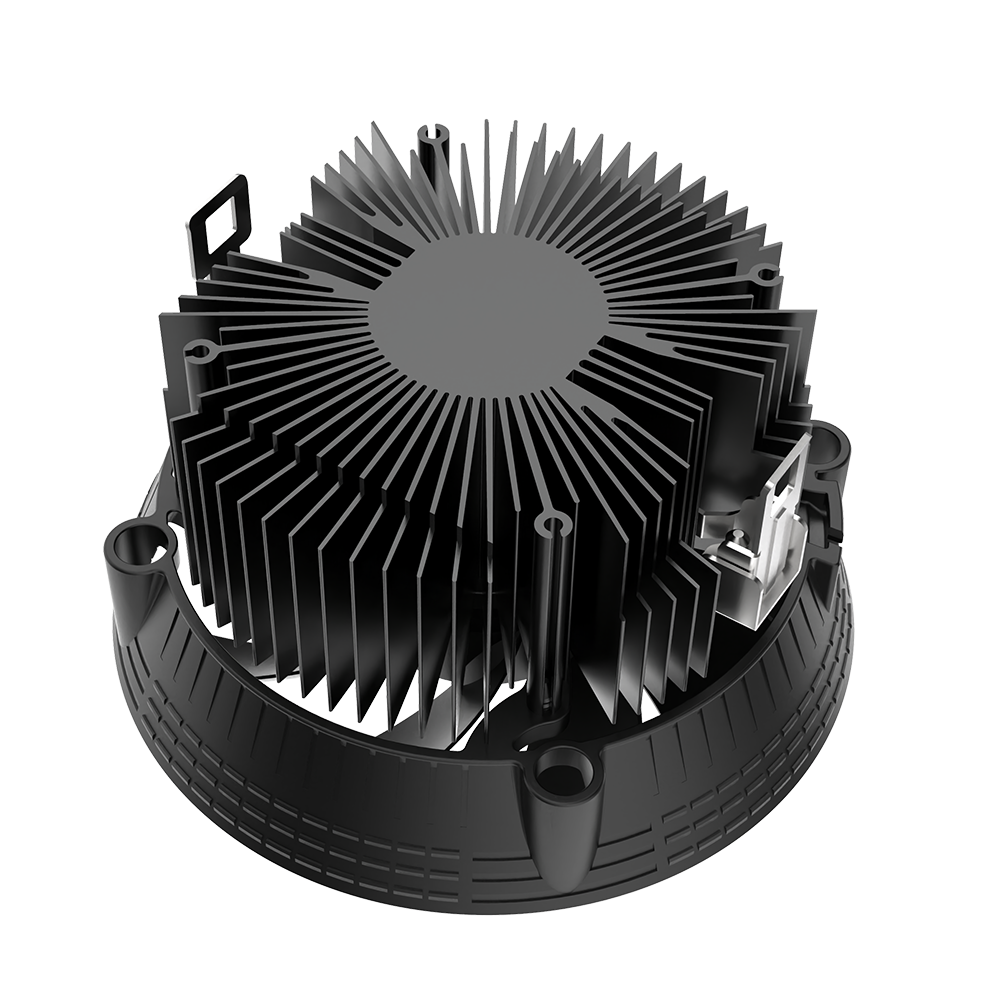

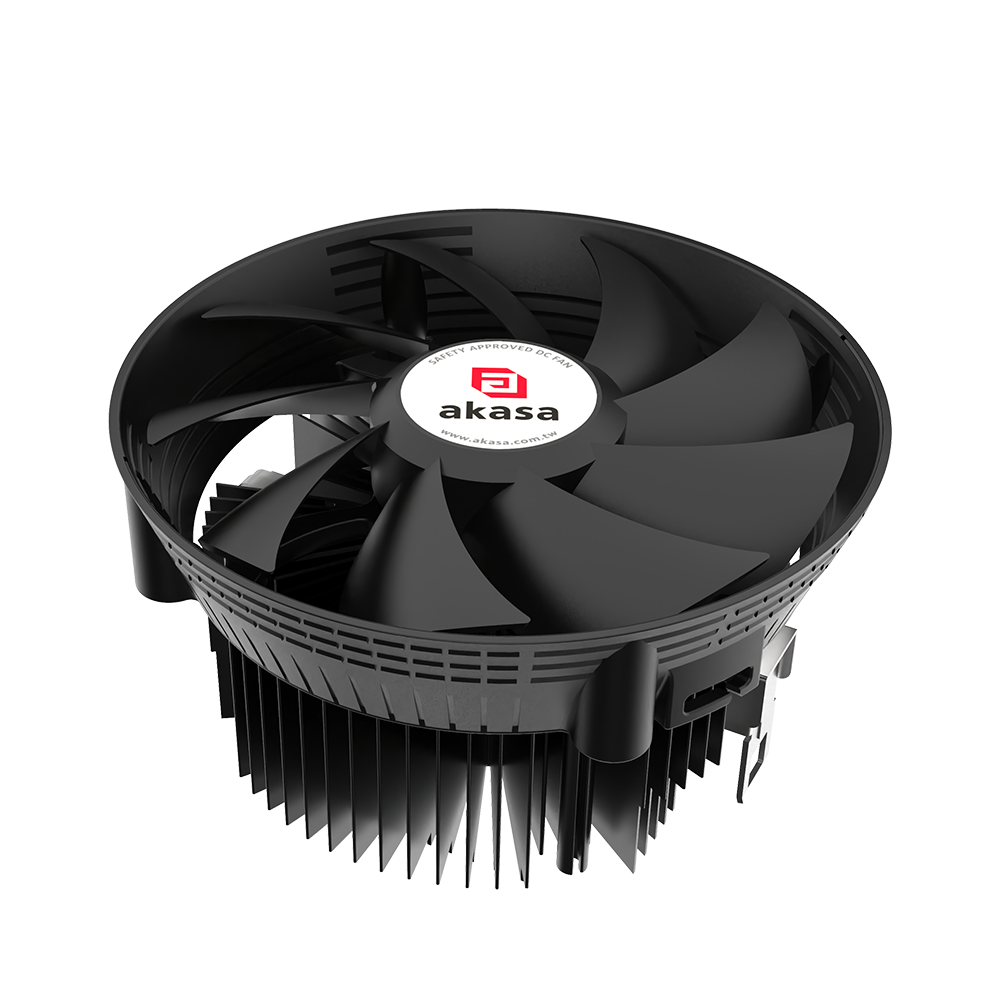

Black anodised aluminium heatsink features a sunflower-fin radial design to maximise surface area for efficient CPU heat dissipation. Designed to cool AMD Ryzen™ CPUs up to 95W TDP.

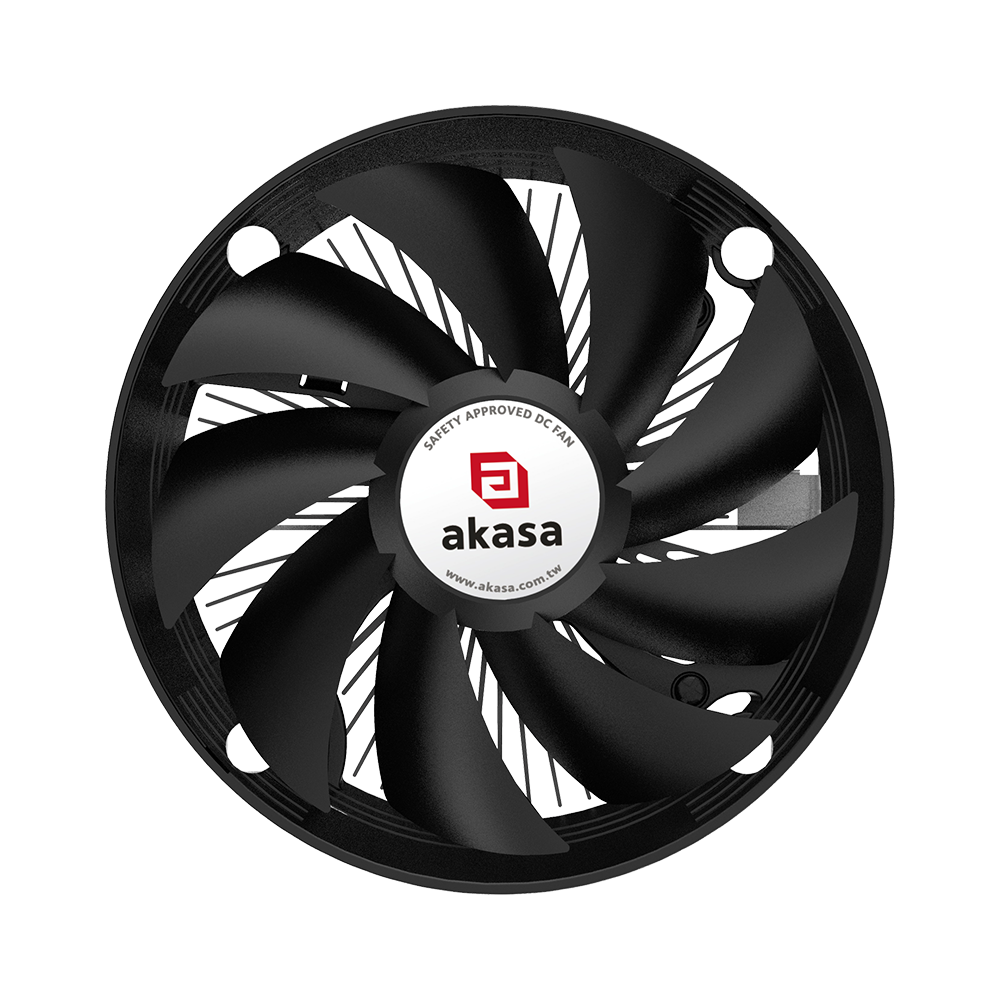

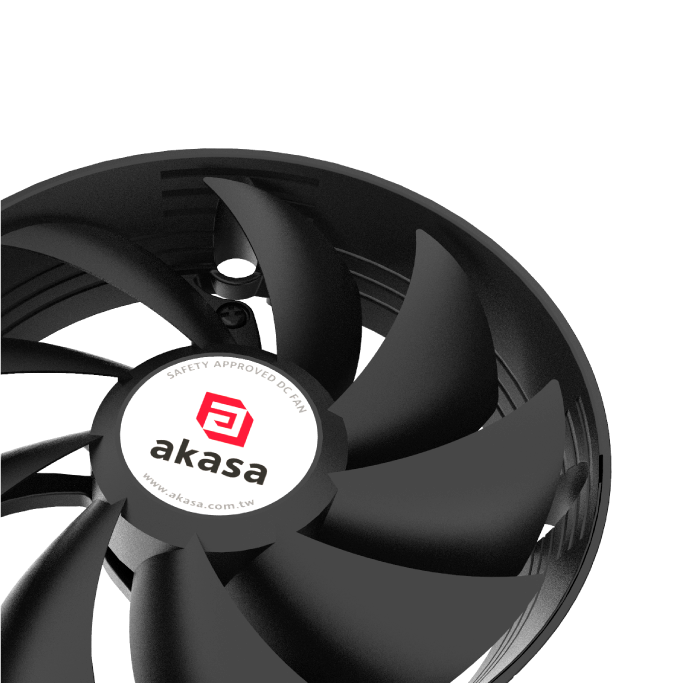

120mm 4-pin PWM fan with HD bearing and automatic speed control delivers quiet, powerful cooling through the heatsink fins.

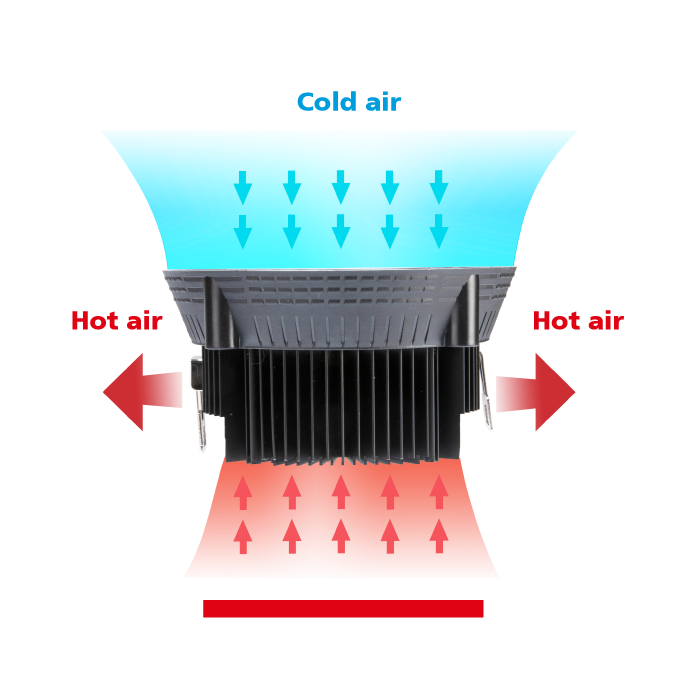

Funnel-shaped fan frame concentrates airflow to the CPU and surrounding motherboard components for improved system cooling.
With a compact 63mm height and a small footprint, this cooler offers versatile motherboard compatibility (ATX, Micro-ATX, Mini-ITX and Thin Mini-ITX), making it ideal for workstation desktops, industrial PCs and small form factor (SFF) systems.
Spring-loaded screws ensure consistent, balanced pressure and high vibration tolerance, keeping the cooler firmly mounted during extended operation.

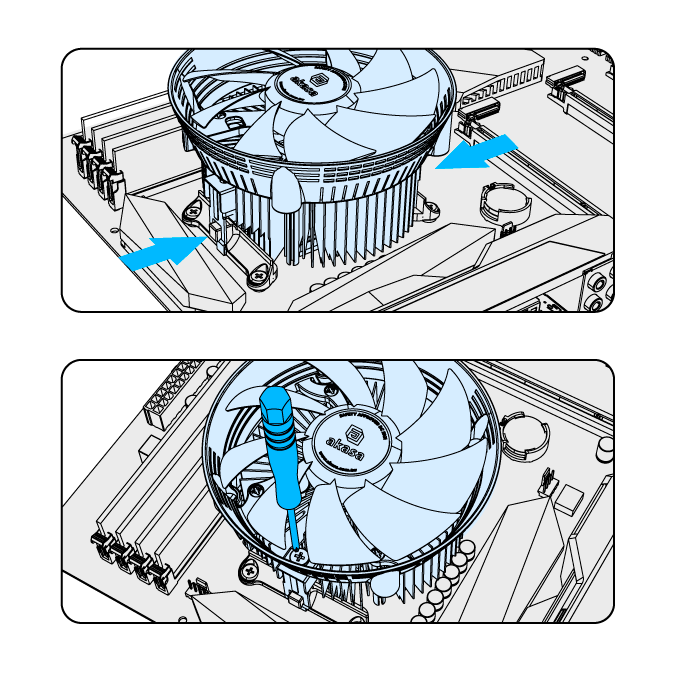

Easily install using the AMD retention clip with a single screw fastener to secure the cooler firmly to the CPU socket.
| Socket Type | AMD Socket AM3+, AM4, AM5 |
|---|---|
| Suggested TDP (W) | 95 |
| Cooler Dimensions | 120 x 120 x 63 mm |
| Heatsink Material | Black anodised aluminium |
| Installation | Retention clip with screw fastener |
| Weight | 340g |
| Product Code | AK-CC1108HP01-BK |
| Dimensions | Ø120 x 25 mm |
|---|---|
| Bearing | HD Bearing |
| Fan Speed | 500 - 1800 RPM |
| Max Airflow | 51.3 CFM |
| Max Air Pressure | 1.62 mm-H2O |
| Noise Level | 17.5 - 32.5 dB(A) |
| Fan Rated Current | 0.2A |
| Fan Rated Voltage | DC 12V |
| Connector | 4-pin PWM |
| Fan Life Expectancy | 40,000 hours |
| Warranty | 2 years |
