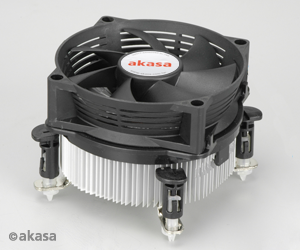

The Ultra Quiet AK-955 uses a hi-engineered omni directional heatsink with full length ventilated copper core. The new design fan frame provides side ventilation which increases air induction.  Bi-ped fins maximise heat dissipation.

The fan uses INTEL approved power management (PWM) with auto fan operation. The PWM fan speed is regulated by CPU usage. This means under normal operating conditions, the CPU fan speed is relatively low. Intel approved board push pins ensures reliable retention.

Semi low profile, total height is 62mm
PWM Ultra Quiet 9cm fan
New fan frame design increases air induction

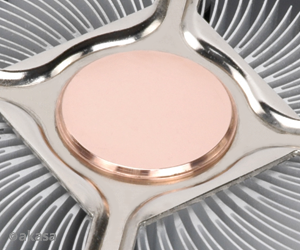

Full length copper ventilated core for rapid heat absorption
Bi-ped fins maximise heat dissipation

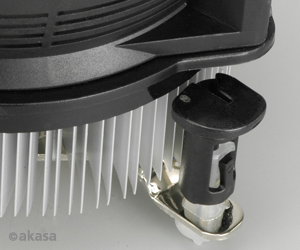

Intel approved push-pins for reliable retention and easy mounting
High performance thermal interface pre-applied

Socket type Intel LGA775
Cooler dimensions 94 x 94 x 62 (H) mm
Heatsink material Aluminium with copper insert
Weight 426 g
Installation Push-pins
Fan dimension ∅95 x 25 mm
Fan speed 1000 - 3000 RPM (PWM controlled)
Max airflow 50.28 CFM (85.22 m³/h)
Fan air pressure 3.20 mm H20
Noise level 17.0 - 31.5 dB(A)
Current rating 0.19A
Voltage rating 12V DC
Bearing type Ball
Fan life expectancy 40,000 hours
Fan connector 4pin PWM
Product code AK-955
